with Frami Xlife universal panels

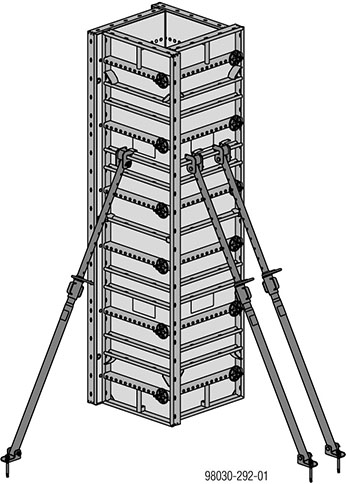

Shown here on Frami Xlife panels 3.00m.
The practical 5 cm hole-grid is ideal for forming columns.

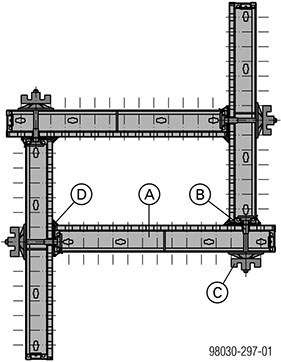

Example: Column 30 cm x 60 cm
|
A Frami Xlife universal panel |
|
B Frami universal fixing bolt 5-12cm or Frami corner connector |
|
C Super-plate 15.0 |
|
D Frami frontal triangular ledge |
|
Permitted fresh-concrete pressure σhk, max: 80 kN/m2 |
|
Frami universal fixing bolts / Frami corner connectors: Permitted tensile load: 15.6 kN (when used in Frami Xlife universal panels) |
Note:
Close off unneeded grid holes in the form-facing of the Frami Xlife universal panels with Frami plugs.
.
