with Frami Xlife universal panels and Frami Xlife standard panels

Certain cross-sections of column can be formed highly economically by combining Frami Xlife universal panels and standard Frami Xlife panels.

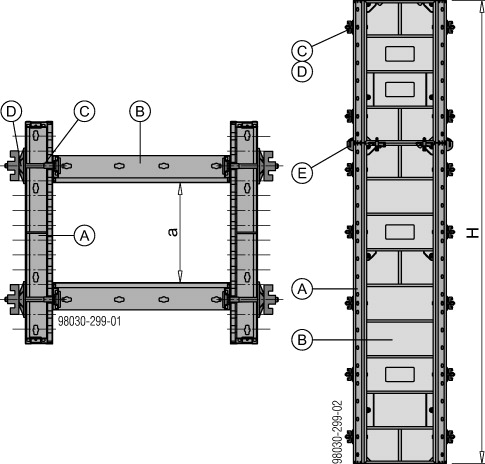

Example: column, 35 x 60 cm

A Frami Xlife universal panel

B Frami Xlife panel

C Frami universal fixing bolt 5-12cm or Frami corner connector

D Super plate 15.0

E Frami clamp

	Dimension 'a'
Frami Xlife universal panel 0.75m	up to 55 cm, in 5 cm increments
Frami Xlife universal panel 0.90m	up to 70 cm, in 5 cm increments

(for constructional design reasons, a deviation of -1 cm is possible here)

max. width of the Frami Xlife panel	Permitted fresh-concrete pressure σ_{hk, max}
0.90m	40 kN/m²
0.75m	50 kN/m²
0.60m	60 kN/m²
0.45m	70 kN/m²
0.30m	70 kN/m²

User Information "Column formwork Frami Xlife", 999810102 en-GB - 08/2022
