with Frami flat tie-rods and Frami clips
▪ Tie rod is held above panel (not in the concrete)
|
A Frami flat tie-rod 10-80cm |
|
B Frami clip |
|
Frami flat tie-rod: Permitted capacity: 5.0 kN |
|
Frami clip: Permitted tensile force: 10.0 kN Permitted shear force: 5.0 kN Permitted moment: 0.2 kNm |
Number of ties needed:
|
Frami Xlife panel (horizontal) |
Number of ties |
|---|---|
|
1.20m |
2 / 1 *) |
|
1.50m |
2 / 1 *) |
|
2.70m |
2 |
|
3.00m |
2 |
*) In every other panel, only one tie is needed.
Two ties are needed in the first panel, and two in the last panel.
Possible wall thicknesses:
|
Wall thicknesses |
Grid |
Number of Frami flat tie-rods |
|---|---|---|
|
10 - 80 cm |
5 cm |
1 per tie |
|
85 - 115 cm |
2 per tie *) |
|
|
121.3 - 171.3 cm |
2 per tie *) |
*) join these flat tie-rods with 2 Frami clips.

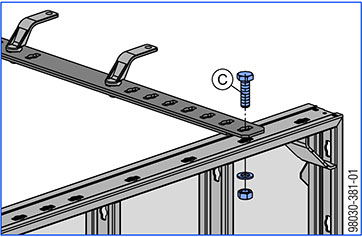

Special case where wall thickness is 85 cm:
At one end of the flat tie-rod, use a bolt (instead of a Frami clip) to fix the flat tie-rod to the Frami panel.
|
C M16x45 bolt (site-provided) |
.
