Determining the max. panel width

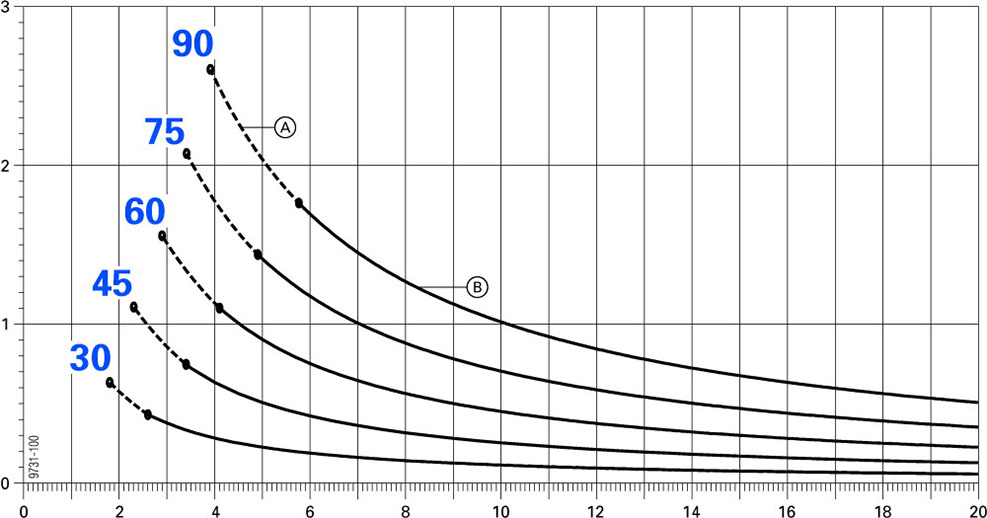

Radius segment diagram for the various widths of panel
The radius segment diagram is for determining the max. panel width as a function of the radius and the permitted deviations from the circular arc.
|
Segment (deviation from circular arc) [cm] |
|
|
|
Radius [m] |
|
A Minimum wall thickness = 20 cm |
|
B Minimum wall thickness = 15 cm |

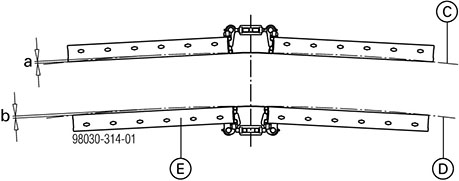

a ... Outside segment dimension
b ... Inside segment dimension
|
C Ideal circular arc (outside radius) |
|
D Ideal circular arc (inside radius) |
|
E Frami Xlife panel |
Example:
▪ Radius: 6.0 m
▪ Permitted deviation from circular arc: 1.0 cm
=> Max. panel width: 60 cm
.
