Mounting the lifting hook
|
|
NOTICE Do NOT use on damaged beams! |
The Lifting hook DF is attached to the primary beams of the Dokaflex table.
|
Double primary beam |
Single primary beam |
|
|
b ... min. 30 mm
|
A Lifting hook DF |
|
B Beam-fastening pin |
|
E Primary beam |
|
F Secondary beam |
|
|
WARNING Tableform falling hazard ➤ It is forbidden to mount the lifting hook in the outermost beam-end hole!
|
➤ Mount the Lifting hook DF to the inside beam-end hole on the primary beams (min. 270 mm from the end of the beam).
a ... min. 270 mm
➤ Push in and secure the beam-fastening pin.
|

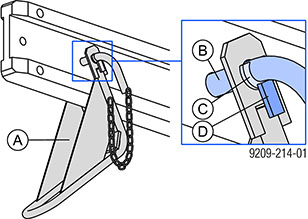

A Lifting hook DF |
|
B Beam-fastening pin |
|
C Washer |
|
D Locking plate |
|
|
The washer on the beam-fastening pin must engage in the locking plate. |
➤ Attach the four-part lifting chain to the Lifting hook DF.
.
