Positioning the lifting hooks

NOTICE

Use 2 lifting hooks for each unit to be lifted!
Exception: Use 1 lifting hook for single panels.

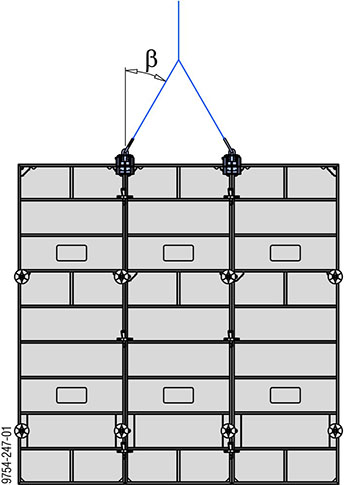

▪ Always position the lifting hook over the inter-panel join, to prevent the hook sliding from side to side.

- Exception: On single panels incorporated in the horizontal, the lifting hook must be placed over a cross profile.

▪ Suspend the gang-form symmetrically (centre-of-gravity position).

▪ Spread angle β ≤ 30° or β ≤ 7.5°!

Max. load-bearing capacity:

▪ Spread angle β up to 30°:
500 kg (1100 lbs) / Frami lifting hook

▪ Spread angle β up to 7.5°:
750 kg (1650 lbs) / Frami lifting hook

Operating Instructions "Frami lifting hook", 999231002 en-GB - 04/2018
