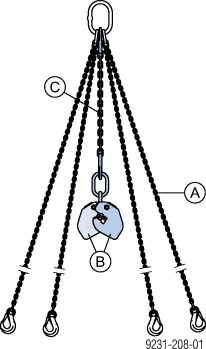

Parking position on the crane lifting tackle

A Crane lifting tackle (e.g. Doka 4-part chain 3.20m)

B Frami lifting hook

C Additional chain (site-provided)

Attach the additional chain to the crane lifting tackle and secure the lifting hooks to the end of the additional chain.
In this way the lifting hooks are always available when needed.

Technical data of the additional chain:

▪ Min. working load limit: 2500 kg (5510 lbs)

▪ Chain length: approx. 580 mm (23’)

▪ Link thickness: 8 mm (⁵/₁₆")

▪ 2 KHSW 8 clevis sling hooks

Operating Instructions "Frami lifting hook", 999231002 en-GB - 03/2023
