Additional precautions for edge tables etc.
Edge table with downstand beam
Additional precaution:
Doka beams H20 are mounted to the fork profile, along the direction of the fork.
|
|
WARNING Tableform falling-hazard! Using the Doka beams H20 in this way deactivates the lever-latch so that it no longer acts as an anti-slide-off guard. ➤ Do not use the transport fork for regular lifting operations if Doka beams H20 are mounted to it! |
.

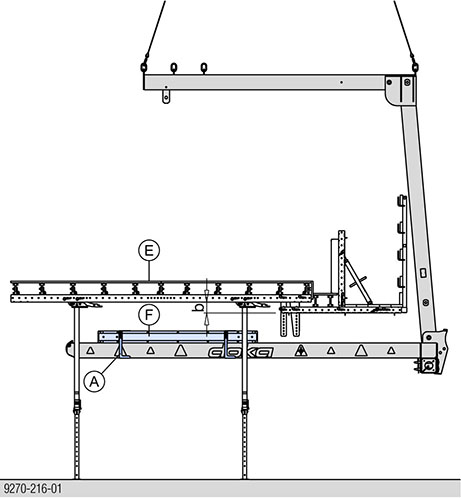

Downstand beam up to 20 cm high
b ... max. 200 mm
|
A Extension clamp H20 for fork 1.5t |
|
E Edge table with downstand beam |
|
F Doka beam H20 2.65m |

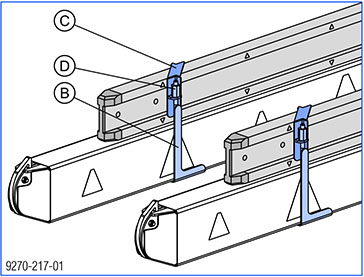

➤ Place a Doka H20 beam on the fork.
➤ Slide the Vertical-extension angle of the Extension clamp onto the fork profile.
➤ Place the connecting plate of the Extension clamp over the Doka beam H20 and attach it tightly to the Vertical-extension angle with the hexagon nut.
|
B Vertical-extension angle |
|
C Connecting plate |
|
D Hexagon nut 15.0 (width-across 30 mm) |
.

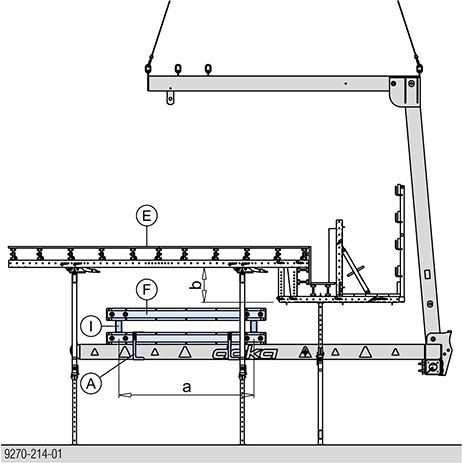

Downstand beam up to 60 cm high
a ... 2250 mm
b ... Max. 600 mm
|
A Extension clamp H20 for fork 1.5t |
|
I Extension profile H20 for fork 1.5t |
|
E Edge table with downstand beam |
|
F Doka beam H20 2.65m |

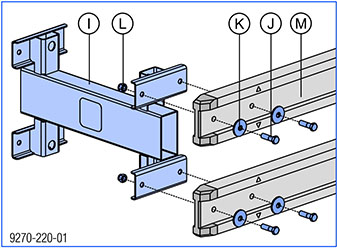

➤ Set down two Extension profiles H20 on the ground, in the vertical.
➤ Screw 4 Doka H20 beams (2.65m) firmly to the Extension profiles (nut/screw width-across 30 mm).
|
I Extension profile H20 for fork 1.5t |
|
J Hexagon bolt M20x70 |
|
K Washer R22 |
|
L Hexagon nut M20, self-locking (width-across 30 mm) |
|
M Doka H20 beam, 2.65m (4 beams) |
|
|
NOTICE Mounting of the Extension profile H20 is only permitted when the fork is set to a width of 900 mm! |
➤ Set the fork width to 900 mm.

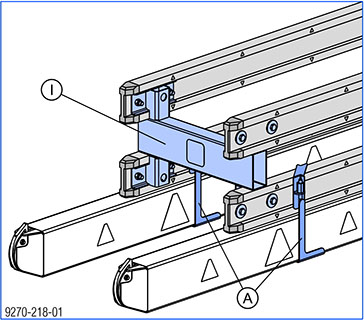

➤ Place the pre-assembled unit onto the transport fork and mount it with the Extension clamp.
|
A Extension clamp H20 for fork 1.5t |
|
I Extension profile H20 for fork 1.5t |
.
