Setting down the transport fork
|
|
CAUTION Risk of lifting extension bracket tipping over! ➤ Do not remove the lifting chain until the lifting extension bracket is resting on the ground (in the stand-by position). |
|
Stand-by position: |
|
|
|
➤ Set the fork down on level ground.

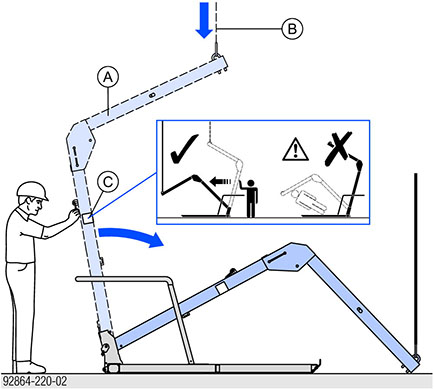

➤ Tilt down the lifting extension bracket by crane into the stand-by position. At the same time, press the lifting extension bracket forward by hand.
Observe the warning stickers!
|
A Lifting extension bracket |
|
B Lifting chain |
|
C Warning sticker |
➤ Detach the lifting chain, working from floor-level.

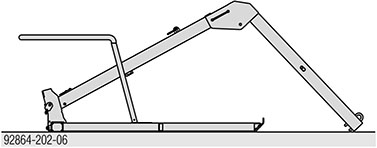

Transport fork in stand-by position:
.
