Fitting the Bridge edge beam anchor

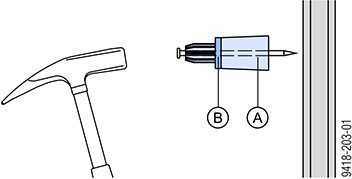

➤ Nail a nailing cone to the form-ply (position as shown in shop drawing / assembly plan).
|
A Nailing cone 15.0 |
|
B Sealing ring |
|
|
Make sure that the sealing ring is fitted correctly! |

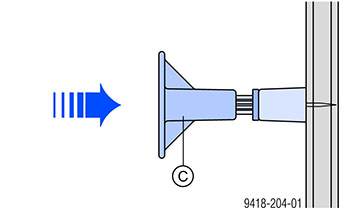

➤ Push the Bridge edge beam anchor onto the nailing cone.
|
C Bridge edge beam anchor 15.0 |
|
Z Extra reinforcement steel |
➤ Tie the Bridge edge beam anchor tightly to the reinforcements with binding wire.
This prevents it from working loose during pouring and vibration.
|
|
NOTICE If statically required – place extra reinforcement steel. |
.
