Installation and dismounting
Installation
Animation:
|
|
WARNING ➤ Use Doka coils 16mm only with the Doka express anchor 16x125mm. ➤ Never use Doka coils 16mm on normal standard screws or anchors. ➤ Screw the Doka coil 16mm onto the Doka express anchor 16x125mm only in the direction indicated. Do not pre-spread. ➤ The express anchor may only be re-used after performing a check for wear with the Gauge for Doka express anchor 16x125mm, and provided that this check has been successfully passed. |
Dismounting and check for reusability

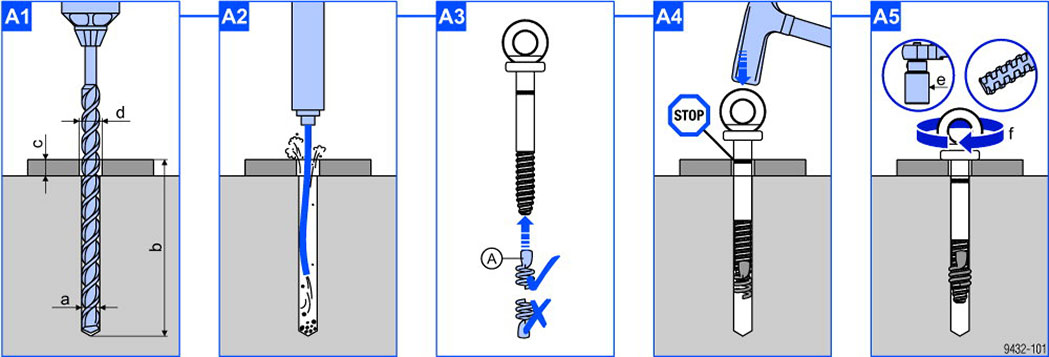

a ... Nominal drill diameter 16 mm
b ... Depth of drilled hole 135 mm (The depth of the drilled hole b can be reduced by dimension c.)
c ... Max. thickness of attached part 15 mm
d ... Diameter of hole drilled in the attached part 17-25 mm
e ... Width-across 36 mm
f ... Torque Tmin 180 Nm
|
A Doka coil 16mm (art. n° 588633000) |
|
B Gauge for Doka express anchor 16x125mm (art. n° 588632000) |
.
