Transporting, stacking and storing
Doka stacking pallet 1.55x0.85m
Storage and transport devices for long items:
▪ durable
▪ stackable
Suitable transport appliances:
▪ crane
▪ pallet stacking truck
▪ forklift truck
The Bolt-on caster set B turns the stacking pallet into a fast and manoeuvrable transport device.
|
|
Follow the directions in the 'Bolt-on castor set B' Operating Instructions! |
|
Max. load: 1100 kg Permitted imposed load: 5900 kg |
Loading capacity of the stacking pallet
|
Doka floor props |
|
|
Eurex 20 eco 250, 300 and 350 |
40 |
|
Eurex 20 eco 400 and 450 |
30 |
|
Eurex 30 eco 300 |
40 |
|
Eurex 30 eco 400 |
30 |
|
|
NOTICE ▪ Multi-trip packaging items that each contain very different loads must be stacked with the heaviest ones at the bottom and the lightest ones at the top! ▪ The rating plate must be in place and clearly legible. |
.
Using Doka stacking pallets as storage units
Max. n° of units on top of one another
|
Outdoors (on the site) |
Indoors |
|---|---|
|
Floor gradients of up to 3% |
Floor gradients of up to 1% |
|
2 |
6 |
|
It is not allowed to stack empty pallets on top of one another! |
|
Note:
How to use with bolt-on castor set:
Always apply the fixing brake when the container is ‘parked’.
When Doka stacking pallets are stacked, the bottom pallet must NOT be one with a bolt-on caster set mounted to it.
.
Using Doka stacking pallets as transport devices

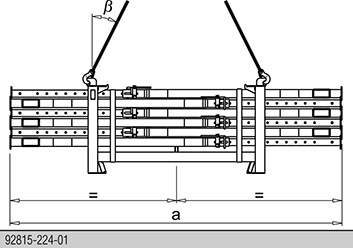

Lifting by crane
|
|
NOTICE ▪ Multi-trip packaging items may only be lifted one at a time. ▪ Use a suitable crane suspension tackle ▪ Load the items centrically. ▪ Fasten the load to the stacking pallet so that it cannot slide or tip out. ▪ When lifting stacking pallets to which Bolt-on castor sets B have been attached, you must also follow the directions in these Operating Instructions! ▪ Spread angle β max. 30°! |
a ... max. 4.5 m
.
Repositioning by forklift truck or pallet stacking truck
|
|
NOTICE ▪ Load the items centrically. ▪ Fasten the load to the stacking pallet so that it cannot slide or tip out. |
.
