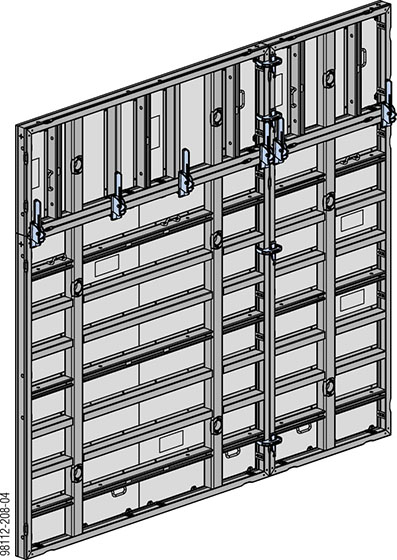

Attributes of the panel connectors:
▪ provide self-aligning, crane-handling-safe connections between the panels
▪ no losable small parts
▪ dirt-resistant and hard-wearing for site use
▪ easy to fix, with a formwork hammer
|
|
NOTICE ▪ Use a formwork hammer weighing max. 800 g. ▪ Do not oil or grease wedge-clamped joints. |
Panels longside vertical:
|
Panel height |
Number of clamps |
|
0.60 m |
1 |
|
1.35 m |
2 |
|
2.70 m |
2 |
|
3.30 m |
3 |
Panels longside horizontal:
|
Panel width |
Number of clamps |
|
0.30 m |
1 |
|
0.45 m |
1 |
|
0.60 m |
2 |
|
0.75 m |
2 |
|
0.90 m |
2 |
|
1.35 m |
2 |
Note:
▪ For details regarding extra inter-panel connections on outside corners (for increased tensile loads) see the section headed ‘Inter-panel connections for increased tensile loads’.
▪ See ‘Vertical stacking of panels’ for details on the positions of the Framax quick acting clamps RU and Framax multi-function clamps that are needed when vertically extending.
.
