Component overview
[kg]
Article N°
Framax Xlife plus panel 2.70x2.70m ( 435.5 kg | 589260000 )
Framax Xlife plus-Element 2,70x2,70m
|
Galvanised |
|
Framax Xlife plus panel 2.70x3.30m ( 521.5 kg | 589290000 )
Framax Xlife plus-Element 2,70x3,30m
|
Galvanised |
|
Framax Xlife plus panel C 0.90x3.30m ( 196.6 kg | 589292500 )
Framax Xlife plus panel C 0.75x3.30m ( 174.7 kg | 589293500 )
Framax Xlife plus panel C 0.60x3.30m ( 137.7 kg | 589294500 )
Framax Xlife plus panel C 0.50x3.30m ( 121.2 kg | 589331500 )
Framax Xlife plus panel C 0.45x3.30m ( 114.5 kg | 589295500 )
Framax Xlife plus panel C 0.30x3.30m ( 89.3 kg | 589296500 )
Framax Xlife plus panel 1.35x3.30m ( 273.0 kg | 589291000 )
Framax Xlife plus panel 1.35x2.70m ( 222.5 kg | 589261000 )
Framax Xlife plus panel 0.90x2.70m ( 151.0 kg | 589262000 )
Framax Xlife plus panel 0.75x2.70m ( 135.5 kg | 589263000 )
Framax Xlife plus panel 0.60x2.70m ( 107.0 kg | 589264000 )
Framax Xlife plus panel 0.50x2.70m ( 93.6 kg | 589333000 )
Framax Xlife plus panel 0.45x2.70m ( 87.0 kg | 589265000 )
Framax Xlife plus panel 0.30x2.70m ( 67.5 kg | 589266000 )
Framax Xlife plus panel 1.35x1.35m ( 114.0 kg | 589267000 )
Framax Xlife plus panel 0.90x1.35m ( 78.3 kg | 589268000 )
Framax Xlife plus panel 0.75x1.35m ( 71.0 kg | 589269000 )
Framax Xlife plus panel 0.60x1.35m ( 57.5 kg | 589270000 )
Framax Xlife plus panel 0.50x1.35m ( 49.8 kg | 589335000 )
Framax Xlife plus panel 0.45x1.35m ( 46.0 kg | 589271000 )
Framax Xlife plus panel 0.30x1.35m ( 35.5 kg | 589272000 )
Framax Xlife plus panel 0.90x0.60m ( 42.8 kg | 589313000 )
Framax Xlife plus panel 0.75x0.60m ( 38.8 kg | 589314000 )
Framax Xlife plus panel 0.60x0.60m ( 33.0 kg | 589315000 )
Framax Xlife plus panel 0.50x0.60m ( 27.4 kg | 589337000 )
Framax Xlife plus panel 0.45x0.60m ( 24.5 kg | 589316000 )
Framax Xlife plus panel 0.30x0.60m ( 18.4 kg | 589317000 )
Framax Xlife plus-Element
|
Galvanised, powder-coated Custom sizes on enquiry! |
|
Framax Xlife plus panel C 0.55x3.30m ( 128.3 kg | 589330500 )
Framax Xlife plus panel 0.55x2.70m ( 96.0 kg | 589332000 )
Framax Xlife plus panel 0.55x1.35m ( 53.0 kg | 589334000 )
Framax Xlife plus panel 0.55x0.60m ( 27.5 kg | 589336000 )
Framax Xlife plus-Element
|
Galvanised, powder-coated Corners marked in green |
|
Framax Xlife plus frame hole plug 32mm NG ( 0.005 kg | 589280500 )
Framax Xlife plus-Ankerstopfen 32mm NG
|
Black Diameter: 3.5 cm |
|
Framax Xlife panel 1.35x3.30m ( 259.3 kg | 588221500 )
Framax Xlife panel 0.90x3.30m ( 154.5 kg | 588222500 )
Framax Xlife panel 0.60x3.30m ( 114.7 kg | 588223500 )
Framax Xlife panel 0.45x3.30m ( 97.9 kg | 588224500 )
Framax Xlife panel 0.30x3.30m ( 78.5 kg | 588225500 )
Framax Xlife panel 1.35x2.70m ( 210.0 kg | 588100500 )
Framax Xlife panel 0.90x2.70m ( 126.5 kg | 588102500 )
Framax Xlife panel 0.60x2.70m ( 91.5 kg | 588104500 )
Framax Xlife panel 0.45x2.70m ( 77.7 kg | 588106500 )
Framax Xlife panel 0.30x2.70m ( 61.5 kg | 588108500 )
Framax Xlife panel 1.35x1.35m ( 106.3 kg | 588110500 )
Framax Xlife panel 0.90x1.35m ( 68.5 kg | 588112500 )
Framax Xlife panel 0.60x1.35m ( 50.5 kg | 588114500 )
Framax Xlife panel 0.45x1.35m ( 41.0 kg | 588116500 )
Framax Xlife panel 0.30x1.35m ( 31.8 kg | 588118500 )
Framax Xlife-Element
|
Galvanised, powder-coated Custom sizes on enquiry! |
|
Framax Xlife panel 0.55x3.30m ( 107.5 kg | 588131500 )
Framax Xlife panel 0.55x2.70m ( 87.0 kg | 588105500 )
Framax Xlife panel 0.55x1.35m ( 46.5 kg | 588115500 )
Framax Xlife-Element
|
Galvanised, powder-coated Corners marked in green |
|
Framax Xlife universal panel 0.90x3.30m ( 182.6 kg | 588228500 )
Framax Xlife universal panel 0.90x2.70m ( 148.0 kg | 588122500 )
Framax Xlife universal panel 0.90x1.35m ( 79.3 kg | 588124500 )
Framax Xlife universal panel 0.90x0.90m ( 63.0 kg | 588120500 )
Framax Xlife-Uni-Element
|
Galvanised, powder-coated Corners marked in blue |
|
Framax Xlife inside corner 3.30m ( 117.9 kg | 588229500 )
Framax Xlife inside corner 2.70m ( 97.0 kg | 588130500 )
Framax Xlife inside corner 1.35m ( 51.2 kg | 588132500 )
Framax Xlife-Innenecke
|
Galvanised, powder-coated |
|
Framax Xlife plus inside corner 30/30cm 3.30m ( 126.0 kg | 589299000 )
Framax Xlife plus inside corner 30/30cm 2.70m ( 95.5 kg | 589239000 )
Framax Xlife plus inside corner 30/30cm 1.35m ( 51.0 kg | 589240000 )
Framax Xlife plus inside corner 30/30cm 0.60m ( 26.4 kg | 589318000 )
Framax Xlife plus-Innenecke 30/30cm
|
Galvanised, powder-coated |
|
Framax Xlife plus outs. corner 10/10cm 3.30m ( 87.4 kg | 589310000 )
Framax Xlife plus outs. corner 10/10cm 2.70m ( 72.5 kg | 589311000 )
Framax Xlife plus outs. corner 10/10cm 1.35m ( 39.5 kg | 589312000 )
Framax Xlife plus outs. corner 10/10cm 0.60m ( 19.8 kg | 589320000 )
Framax Xlife plus-Außenecke 10/10cm
|
Galvanised, powder-coated |
|
Framax outside corner 3.30m ( 58.0 kg | 588227000 )
Framax outside corner 2.70m ( 47.0 kg | 588126000 )
Framax outside corner 1.35m ( 23.5 kg | 588128000 )
Framax outside corner 0.60m ( 11.1 kg | 589319000 )
Framax-Außenecke
|
Galvanised |
|
Framax hinged inside corner I galv. 2.70m ( 105.8 kg | 588136500 )
Framax hinged inside corner I galv. 1.35m ( 57.2 kg | 588137500 )
Framax hinged inside corner I galv. 3.30m ( 129.2 kg | 588610500 )
Framax-Scharnierecke I
|
Galvanised, powder-coated |
|
Framax hinged inside corner I 2.70m ( 102.3 kg | 588136000 )
Framax hinged inside corner I 1.35m ( 55.4 kg | 588137000 )
Framax hinged inside corner I 3.30m ( 125.5 kg | 588610000 )
Framax-Scharnierecke I
|
Powder-coated blue |
|
Framax hinged outside corner A galv. 3.30m ( 64.0 kg | 588975000 )
Framax hinged outside corner A galv. 2.70m ( 52.8 kg | 588942000 )
Framax hinged outside corner A galv. 1.35m ( 27.5 kg | 588943000 )
Framax-Scharnierecke A verzinkt
|
Galvanised, powder-coated |
|
Framax hinged outside corner A 2.70m ( 52.8 kg | 588134000 )
Framax hinged outside corner A 1.35m ( 27.4 kg | 588135000 )
Framax-Scharnierecke A
|
Powder-coated blue |
|
Framax stripping corner I 2.70m ( 171.0 kg | 588675000 )
Framax stripping corner I 1.35m ( 90.0 kg | 588614000 )
Framax stripping corner I 3.30m ( 209.9 kg | 588676000 )
Framax-Ausschalecke I
|
Galvanised, powder-coated |
|
Framax stripping spindle I ( 3.2 kg | 588618000 )
Framax-Ausschalspindel I
|
Galvanised Height: 25 cm |
|
Framax stripping spindle I with ratchet ( 5.5 kg | 588653000 )
Framax-Ausschalspindel I mit Ratsche
|
Galvanised Height: 24.8 cm |
|
Framax stripping cylinder I ( 29.0 kg | 588980000 )
Framax-Ausschalzylinder I
|
Painted yellow Width: 16 cm Height: 45.2 cm Follow the directions in the "Operating Instructions"! |
|
Framax quick acting clamp RU ( 3.3 kg | 588153400 )
Framax-Schnellspanner RU
|
Galvanised Length: 20 cm |
|
Framax multi function clamp ( 5.8 kg | 588169000 )
Framax-Uni-Spanner
|
Galvanised Length: 40 cm |
|
Framax adjustable clamp ( 5.3 kg | 588168000 )
Framax-Ausgleichsspanner
|
Galvanised Length: 48 cm |
|
Framax stop-end waler tie 15-45cm ( 15.0 kg | 588940000 )
Framax stop-end waler tie 15-75cm ( 20.6 kg | 588941000 )
Framax-Stirnabschalzwinge
|
Galvanised |
|
Framax universal fixing bolt 10-16cm ( 0.60 kg | 588158000 )
Framax-Universalverbinder 10-16cm
|
Galvanised Length: 26 cm |
|
Framax universal fixing bolt 10-25cm ( 0.69 kg | 583002000 )
Framax-Universalverbinder 10-25cm
|
Galvanised Length: 36 cm |
|
Star grip nut 15.0 G ( 0.43 kg | 587544000 )
Sternmutter 15,0 G
|
Galvanised Width: 10 cm Height: 5 cm Width-across: 26 mm |
|
Framax stop-end tie ( 1.5 kg | 588143000 )
Framax-Stirnanker
|
Galvanised Length: 29 cm |
|
Rod connector 15.0 ( 0.49 kg | 581981000 )
Verbindungsmuffe 15,0
|
Non-treated Length: 10.5 cm Diameter: 3.2 cm |
|
Framax universal waling 0.60m ( 6.6 kg | 588689000 )
Framax universal waling 0.90m ( 10.6 kg | 588150000 )
Framax universal waling 1.50m ( 16.8 kg | 588148000 )
Framax-Klemmschiene
|
Painted blue |
|
Framax universal corner waling ( 12.8 kg | 588151000 )
Framax-Eckklemmschiene
|
Painted blue Leg length: 60 cm |
|
Framax wedge clamp ( 1.5 kg | 588152000 )
Framax-Spannklemme
|
Galvanised Length: 21 cm |
|
Framax tensioning wedge R ( 0.20 kg | 588155000 )
Framax-Spannkeil R
|
Galvanised Height: 11 cm |
|
Framax wedge bolt RA 7.5 ( 0.34 kg | 588159000 )
Framax-Keilbolzen RA 7,5
|
Galvanised Length: 15 cm |
|
Framax head anchor 15-40cm ( 4.2 kg | 588969000 )
Length: 72 - 81 cm
Framax head anchor 15-100cm ( 6.1 kg | 588970000 )
Length: 131 - 141 cm
Framax-Kopfanker
|
Galvanised, powder-coated |
|
Framax floor fixing plate ( 0.87 kg | 588628000 )
Framax-Bodenhalter
|
Galvanised Length: 17.6 cm Width: 7.7 cm |
|
Wall-formwork support angle ( 6.6 kg | 588967000 )
Auflagewinkel Wandschalung
|
Galvanised Length: 15.8 cm Width: 12 cm Height: 28 cm |
|
Panel strut 340 IB ( 24.3 kg | 580365000 )
Elementstütze 340 IB
consisting of:
(A)Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Galvanised
Length: 190.8 - 341.8 cm
(B)Adjusting strut 120 IB ( 7.6 kg | 588248500 )
Galvanised
Length: 81.5 - 130.6 cm
|
Galvanised Delivery condition: folded closed |
|
Panel strut 540 IB ( 41.4 kg | 580366000 )
Elementstütze 540 IB
consisting of:
(A)Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Galvanised
Length: 310.5 - 549.2 cm
(B)Adjusting strut 220 IB ( 10.9 kg | 588251500 )
Galvanised
Length: 172.5 - 221.1 cm
|
Galvanised Delivery condition: folded closed |
|

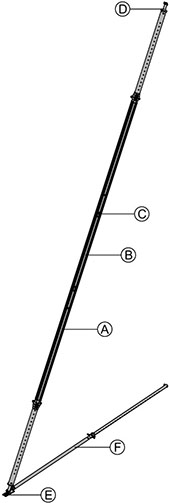

Eurex 60 550
depending on length, comprising:
(A)Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Powder-coated blue
Aluminium
Length: 343 - 553 cm
(B)Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Powder-coated blue
Aluminium
Length: 250 cm
(C)Coupler Eurex 60 ( 8.6 kg | 582652000 )
Aluminium
Length: 100 cm
Diameter: 12.8 cm
(D)Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Galvanised
Length: 15 cm
Width: 15 cm
Height: 30 cm
(E)Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Galvanised
Length: 31 cm
Width: 12 cm
Height: 33 cm
(F)Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Galvanised
Length: 303.5 - 542.2 cm
|
Delivery condition: separate parts |
|
Prop head EB ( 3.1 kg | 588244500 )
Stützenkopf EB
|
Galvanised Length: 40.8 cm Width: 11.8 cm Height: 17.6 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Framax bracket 90 ( 12.5 kg | 588167000 )
Framax-Konsole 90
|
Galvanised Length: 103 cm Height: 185 cm Delivery condition: railing included |
|
Framax bracket 90 EP ( 9.0 kg | 588979000 )
Framax-Konsole 90 EP
|
Galvanised Length: 103 cm Height: 84 cm |
|
Handrail post 1.00m ( 3.8 kg | 584335000 )
Geländer 1,00m
|
Galvanised Length: 124 cm |
|
Bracket adapter XP FRR 50/30 ( 2.4 kg | 586486000 )
Konsolenadapter XP FRR 50/30
|
Galvanised Height: 32 cm |
|
Scaffold tube connection ( 0.27 kg | 584375000 )
Gerüstrohranschluss
|
Galvanised Height: 7 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Framax pouring platform O 1.25/2.70m ( 117.0 kg | 588360000 )
Framax-Betonierbühne O 1,25/2,70m
|
Timber parts varnished yellow Steel parts galvanised Delivery condition: folded closed |
|
Framax pouring platform U 1.25/2.70m ( 127.5 kg | 588377000 )
Framax-Betonierbühne U 1,25/2,70m
|
Steel parts galvanised Timber parts varnished yellow Delivery condition: folded closed |
|
Xsafe plus lifting adapter Framax ( 6.6 kg | 586436000 )
Xsafe plus-Umsetzadapter Framax
|
Galvanised Height: 51.4 cm |
|
Xsafe plus platform 2.70m ( 151.7 kg | 586404000 )
Xsafe plus-Bühne 2,70m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus platform 1.35m ( 95.3 kg | 586408000 )
Xsafe plus-Bühne 1,35m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Framax adapter XP ( 8.0 kg | 586475000 )
Framax-Adapter XP
|
Galvanised Height: 56 cm |
|
Railing clamp XP 40cm ( 7.7 kg | 586456000 )
Geländerzwinge XP 40cm
|
Galvanised Height: 73 cm |
|
Handrail post XP 1.20m ( 4.1 kg | 586460000 )
Geländersteher XP 1,20m
|
Galvanised Height: 118 cm |
|
Toeboard holder XP 1.20m ( 0.64 kg | 586461000 )
Fußwehrhalter XP 1,20m
|
Galvanised Height: 21 cm |
|
Handrail post XP 0.60m ( 5.0 kg | 586462000 )
Geländersteher XP 0,60m
|
Galvanised Height: 68 cm |
|
Toeboard holder XP 0.60m ( 0.77 kg | 586463000 )
Fußwehrhalter XP 0,60m
|
Galvanised Height: 21 cm |
|
Protective grating XP 2.70x1.20m ( 22.2 kg | 586450000 )
Protective grating XP 2.50x1.20m ( 20.5 kg | 586451000 )
Protective grating XP 2.00x1.20m ( 17.4 kg | 586452000 )
Protective grating XP 1.20x1.20m ( 12.0 kg | 586453000 )
Schutzgitter XP
|
Galvanised |
|
Protective grating XP 2.70x0.60m ( 10.1 kg | 586466000 )
Protective grating XP 2.50x0.60m ( 9.5 kg | 586472000 )
Protective grating XP 2.00x0.60m ( 8.0 kg | 586473000 )
Protective grating XP 1.20x0.60m ( 5.0 kg | 586491000 )
Schutzgitter XP
|
Galvanised |
|
Velcro fastener 30x380mm ( 0.02 kg | 586470000 )
Klettverschluss 30x380mm
|
Yellow |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Handrail post 1.10m ( 5.5 kg | 584384000 )
Schutzgeländer 1,10m
|
Galvanised Height: 134 cm |
|
Side handrail clamping unit T ( 29.1 kg | 580488000 )
Seitenschutzgeländer T
|
Galvanised Length: 115 - 175 cm Height: 112 cm |
|
Framax lifting hook ( 10.6 kg | 588149000 )
Framax-Umsetzbügel
|
Galvanised Height: 22 cm Follow the directions in the "Operating Instructions"! |
|
Framax lifting hook 20kN ( 12.8 kg | 588526000 )
Framax-Umsetzbügel 20kN
|
Galvanised Height: 30 cm Follow the directions in the "Operating Instructions"! |
|
Framax Xlife plus stacking cone ( 0.03 kg | 589285000 )
Framax Xlife plus-Stapelkonus
|
Blue Diameter: 8 cm |
|
Framax Xlife plus stacking cone I ( 0.03 kg | 589286000 )
Framax Xlife plus-Stapelkonus I
|
Black Diameter: 8 cm |
|
Doka 4-part chain 3.20m ( 15.0 kg | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Framax transport bolt ( 1.9 kg | 588621000 )
Framax-Transportbolzen
|
Follow the directions in the "Operating Instructions"! |
|
Framax transport gear ( 13.3 kg | 588232000 )
Framax-Transportgehänge
|
Galvanised Follow the directions in the "Operating Instructions"! |
|
Dokamatic lifting strap 13.00m ( 10.5 kg | 586231000 )
Dokamatic-Umsetzgurt 13,00m
|
Green Follow the directions in the "Operating Instructions"! |
|
Framax fitting timber 2x12cm 2.70m ( 3.1 kg | 176020000 )
Framax fitting timber 3x12cm 2.70m ( 4.7 kg | 176022000 )
Framax fitting timber 5x12cm 2.70m ( 7.8 kg | 176024000 )
Framax fitting timber 10x12cm 2.70m ( 15.5 kg | 176026000 )
Framax fitting timber 2x12cm 3.30m ( 3.8 kg | 176021000 )
Framax fitting timber 3x12cm 3.30m ( 5.7 kg | 176023000 )
Framax fitting timber 5x12cm 3.30m ( 9.5 kg | 176025000 )
Framax fitting timber 10x12cm 3.30m ( 19.0 kg | 176027000 )
Framax-Passholz
|
Varnished yellow |
|
Framax moulded timber 27mm 2.70m ( 7.6 kg | 176012000 )
Framax moulded timber 21mm 2.70m ( 8.0 kg | 176010000 )
Framax moulded timber 18mm 2.70m ( 8.4 kg | 176119000 )
Framax moulded timber 27mm 3.30m ( 9.3 kg | 176013000 )
Framax moulded timber 21mm 3.30m ( 9.8 kg | 176011000 )
Framax moulded timber 18mm 3.30m ( 10.2 kg | 176120000 )
Framax-Profilholz
|
Varnished yellow |
|
Framax formwork stripping timb. 10x12cm 2.85m ( 16.4 kg | 176008000 )
Framax formwork stripping timb. 10x12cm 3.45m ( 19.9 kg | 176014000 )
Framax-Ausschalholz
|
Varnished yellow |
|
Framax aluminium closure 10cm 3.30m ( 12.9 kg | 589229000 )
Framax aluminium closure 10cm 2.70m ( 11.0 kg | 589227000 )
Framax aluminium closure 10cm 1.35m ( 5.7 kg | 589225000 )
Framax aluminium closure 10cm 0.60m ( 2.6 kg | 589243000 )
Framax aluminium closure 5cm 3.30m ( 10.5 kg | 589228000 )
Framax aluminium closure 5cm 2.70m ( 8.5 kg | 589226000 )
Framax aluminium closure 5cm 1.35m ( 4.4 kg | 589224000 )
Framax aluminium closure 5cm 0.60m ( 1.9 kg | 589242000 )
|
Powder-coated |
|
Connecting timber ( 0.70 kg | 176030000 )
Anklemmholz
|
Varnished yellow Width: 10 cm |
|
Framax triangular ledge 2.70m ( 0.38 kg | 588170000 )
Framax-Dreikantleiste 2,70m
|
|
|
Framax frontal triangular ledge 2.70m ( 1.7 kg | 588129000 )
Framax frontal triangular ledge 3.30m ( 2.0 kg | 588949000 )
Framax-Stirndreikantleiste
|
Grey |
|
Framax plug R24.5 ( 0.003 kg | 588181000 )
Framax-Abdeckstopfen R24,5
|
Yellow Diameter: 2 cm |
|
Box-out clamp 24cm ( 3.4 kg | 580063000 )
Box-out clamp 25cm ( 3.4 kg | 580064000 )
Box-out clamp 30cm ( 3.9 kg | 580065000 )
Aussparungsklemme
|
Galvanised Leg length: 10 cm |
|
Box-out clamp type 1 .....cm ( 17.4 kg | 580066000 )
Aussparungsklemme Typ 1 .....cm
|
Painted blue Leg length: 10 cm |
|
Box-out clamp type 2 .....cm ( 17.4 kg | 580067000 )
Aussparungsklemme Typ 2 .....cm
|
Painted blue Leg length: 10 cm |
|
Framax stripping tool ( 5.5 kg | 589235000 )
Framax-Ausschalwerkzeug
|
Galvanised Length: 110 cm |
|
Framax telescopic assembling tool ( 4.5 kg | 588651000 )
Framax-Teleskop-Montagestange
|
Aluminium Length: 227 - 398 cm |
|
Framax assembling tool ( 4.2 kg | 588678000 )
Framax-Montagestange
|
Galvanised Length: 193 cm |
|
Framax Xlife plus anchoring-sleeve cleaner ( 0.85 kg | 589328000 )
Framax Xlife plus-Ankerhülsenreiniger
|
Painted blue Length: 16.6 cm |
|
Double scraper Xlife 100/150mm 1.40m ( 2.8 kg | 588674000 )
Doppelschaber Xlife 100/150mm 1,40m
|
|
|
Wheel-around scaffold DF ( 44.0 kg | 586157000 )
Mobilgerüst DF
|
Aluminium Length: 185 cm Width: 80 cm Height: 255 cm Delivery condition: separate parts |
|
Wheel-around scaffold DF accessory set ( 13.3 kg | 586164000 )
Zubehörset Mobilgerüst DF
|
Aluminium Timber parts varnished yellow Length: 189 cm |
|
Doka personal fall-arrest set ( 3.6 kg | 583022000 )
Doka-Auffanggurt
|
Follow the directions in the "Operating Instructions"! |
|
Tie rod system Framax Xlife plus 20.0
Framax Xlife plus form tie 20.0 15-30cm ( 5.0 kg | 589277000 )
Length: 70 cm
Framax Xlife plus form tie 20.0 25-40cm ( 5.4 kg | 589278000 )
Length: 80 cm
Framax Xlife plus form tie 20.0 45-60cm ( 6.2 kg | 589298000 )
Length: 100 cm
Framax Xlife plus-Anker 20,0
|
Galvanised |
|
Framax Xlife plus tie rod 20.0 45-60cm ( 4.0 kg | 589326000 )
Framax Xlife plus tie rod 20.0 15-30cm ( 2.7 kg | 589324000 )
Framax Xlife plus tie rod 20.0 25-40cm ( 3.1 kg | 589325000 )
Framax Xlife plus-Ankerstab 20,0
|
Galvanised |
|
Framax Xlife plus form-tie nut 20.0 ( 2.3 kg | 589279000 )
Framax Xlife plus-Ankermutter 20,0
|
Length: 16 cm |
|
Framax Xlife plus form-tie nut I 20.0 ( 1.2 kg | 589216500 )
Framax Xlife plus-Ankermutter I 20,0
|
Length: 12 cm |
|
Framax Xlife plus parking bolt ( 0.42 kg | 589327000 )
Framax Xlife plus-Parkbolzen
|
Galvanised Length: 20 cm |
|
Framax Xlife plus distance protector NG ( 1.3 kg | 589217500 )
Framax Xlife plus-Distanzsicherung NG
|
Galvanised Height: 22 cm Width-across: 24 mm |
|
Framax Xlife plus reducer I 20.0 ( 0.60 kg | 589329000 )
Framax Xlife plus-Reduzierstück I 20,0
|
Galvanised Length: 12.5 cm |
|
Framax Xlife plus ratchet 1/2" SW24 L ( 0.92 kg | 589221000 )
Framax Xlife plus-Knarre 1/2" SW24 L
|
Length: 30 cm |
|
Framax Xlife plus ratchet 3/4" SW24 ( 4.4 kg | 589220000 )
Framax Xlife plus-Knarre 3/4" SW24
|
Length: 100 cm |
|
Framax Xlife plus fair-faced concr. cone 87mm ( 0.09 kg | 589282000 )
Framax Xlife plus-Sichtbetonkonus 87mm
|
Blue |
|
Sealing disc 43 ( 0.002 kg | 581836000 )
Dichtscheibe 43
|
Black |
|
Framax Xlife plus cone spanner ( 0.28 kg | 589284000 )
Framax Xlife plus-Konusschlüssel
|
Galvanised Length: 5.5 cm |
|
Framax Xlife plus fair-faced concr. plug 87mm ( 0.19 kg | 589283000 )
Framax Xlife plus-Sichtbetonstopfen 87mm
|
Grey |
|
Framax Xlife plus screw plug 25mm ( 0.10 kg | 589308000 )
Framax Xlife plus-Schraubstopfen 25mm
|
EPDM, PA Black Width-across: 16 mm |
|
Framax Xlife plus plug 24mm ( 0.005 kg | 589219000 )
Framax Xlife plus-Verschlussstopfen 24mm
|
PE Grey |
|
Framax Xlife plus plug 24mm with hole ( 0.004 kg | 589223000 )
Framax Xlife plus-Stopfen 24mm mit Loch
|
PE Colourless |
|
Framax Xlife plus plug 38mm ( 0.006 kg | 589288000 )
Framax Xlife plus-Verschlussstopfen 38mm
|
PE Grey |
|
Backfilling syringe 600ml ( 0.98 kg | 588939500 )
Verfüllspritze 600ml
|
|
|
M-Bed moulding mortar ( 25.0 kg | 588938000 )
M-Bed Quellvergussmörtel
|
|
|
Fibre concrete plug 24mm ( 0.02 kg | 588922000 )
Faserbetonstopfen 24mm
|
Grey |
|
Tie rod system 20.0
Tie rod 20.0mm galvanised 0.50m ( 1.3 kg | 581411000 )
Tie rod 20.0mm galvanised 0.75m ( 1.9 kg | 581417000 )
Tie rod 20.0mm galvanised 1.00m ( 2.5 kg | 581412000 )
Tie rod 20.0mm galvanised 1.25m ( 3.2 kg | 581418000 )
Tie rod 20.0mm galvanised 1.50m ( 3.8 kg | 581413000 )
Tie rod 20.0mm galvanised 2.00m ( 5.0 kg | 581414000 )
Tie rod 20.0mm galvanised 2.50m ( 6.3 kg | 581430000 )
Tie rod 20.0mm galvanised .....m ( 2.5 kg | 581410000 )
Tie rod 20.0mm non-treated 0.50m ( 1.3 kg | 581405000 )
Tie rod 20.0mm non-treated 0.75m ( 1.9 kg | 581416000 )
Tie rod 20.0mm non-treated 1.00m ( 2.5 kg | 581406000 )
Tie rod 20.0mm non-treated 1.50m ( 3.8 kg | 581407000 )
Tie rod 20.0mm non-treated 2.00m ( 5.0 kg | 581408000 )
Tie rod 20.0mm non-treated .....m ( 2.5 kg | 581403000 )
Ankerstab 20,0mm
|
|
|
Super plate 20.0 B ( 2.0 kg | 581424000 )
Superplatte 20,0 B
|
Galvanised Height: 7 cm Diameter: 14 cm Width-across: 34 mm |
|
Hexagon nut 20.0 ( 0.40 kg | 581420000 )
Sechskantmutter 20,0
|
Galvanised Length: 7 cm Width-across: 41 mm |
|
Plastic tube 26mm 2.00m ( 0.59 kg | 581463000 )
Kunststoffrohr 26mm 2,00m
|
PVC Grey Diameter: 3.1 cm |
|
Universal cone 26mm ( 0.008 kg | 581464000 )
Universal-Konus 26mm
|
Grey Diameter: 5 cm |
|
Plug 26mm ( 0.006 kg | 581465000 )
Verschlussstopfen 26mm
|
PE Grey |
|
Ladder system XS
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
Fixing clamp XS Framax ( 1.5 kg | 588677000 )
Befestigungsklemme XS Framax
|
Galvanised Length: 20 cm Width-across: 27 mm |
|
Connector XS Framax/Alu-Framax ( 11.2 kg | 588639000 )
Anschluss XS Framax/Alu-Framax
|
Galvanised Length: 115 cm |
|
Connector XS column formwork platform ( 10.0 kg | 588637000 )
Anschluss XS Stützenbühne
|
Galvanised Length: 123 cm |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Securing barrier XS ( 4.9 kg | 588669000 )
Sicherungsschranke XS
|
Galvanised Length: 80 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Ladder cage exit XS ( 17.0 kg | 588666000 )
Rückenschutz-Ausstieg XS
|
Galvanised Height: 132 cm |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
