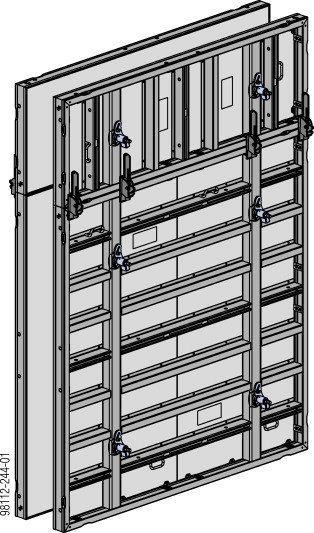

Tie rod system Framax Xlife plus

Tie rod system Framax Xlife plus 20.0:

▪ can be operated from one side

▪ for wall thicknesses from 15 cm to 40 cm

▪ no lost jacket tubes

Basic rule:
▪ fit one form tie in each form-tie sleeve. For exceptions, see the sections headed 'Framax head anchor 15-40cm', '90 degree corners' and 'Acute & obtuse-angled corners'.

Basic rule:

▪ fit one form tie in each form-tie sleeve.

For exceptions, see the sections headed 'Framax head anchor 15-40cm', '90 degree corners' and 'Acute & obtuse-angled corners'.

Note:

Seal off any unneeded form-tie sleeves with the Framax Xlife plus frame hole plug 32mm NG.

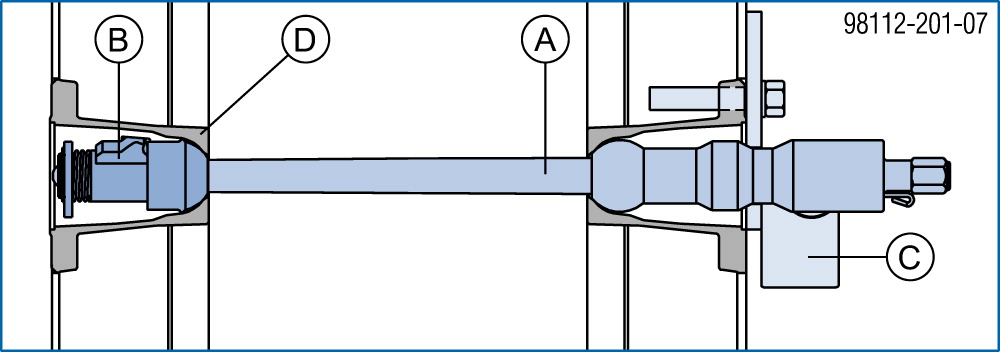

A Framax Xlife plus form tie 20.0

B Framax Xlife plus form-tie nut I 20.0

C Framax Xlife plus distance protector NG

D Anchoring sleeve inside the framed formwork panel

	Wall thicknesses in 0.5 cm increments
Framax Xlife plus form tie 20.0 15-30cm	15 to 30 cm
Framax Xlife plus form tie 20.0 25-40cm	25 to 40 cm

Framax Xlife plus form tie 20.0:

Permitted load-bearing capacity: 152 kN

The Framax Xlife plus ratchet 3/4" SW24 or
Framax Xlife plus ratchet 1/2" SW24 L
can be used for low-noise releasing and tightening of all anchoring components.

WARNING

Sensitive rod steel!

➤ Never weld or heat tie rods.

➤ Tie rods that are damaged or have been weakened by corrosion or wear must be withdrawn from use.

User Information "Framed formwork Framax Xlife plus", 999811202 en-GB - 10/2022
