Slab stop-end with Supporting construction
The Supporting construction is used for erecting non-tied, single-sided formwork up to 1.20 m high (e.g. stop ends of floor slabs).
.
|

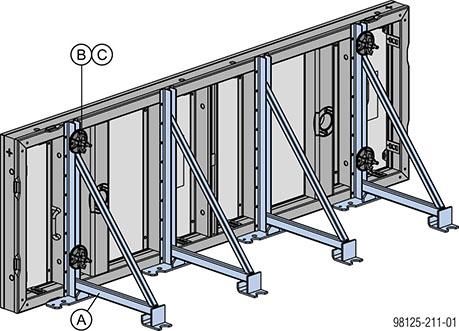

A Supporting construction |
|
B Framax clamping bolt 4-8cm |
|
C Super plate 15.0 |
.
|
|
NOTICE Transfer the vertical and horizontal forces by suitable means! e.g.: ▪ 2 ground nails per Supporting construction. ▪ Anchoring with dowel in the blinding layer. |
|
Pour height |
Influence width [m] |
Vertical force |
Horizontal force |
|---|---|---|---|
|
0.30 |
3.00 |
0.00 |
3.40 |
|
0.45 |
3.00 |
0.20 |
7.60 |
|
0.60 |
1.80 |
1.00 |
8.10 |
|
0.75 |
1.15 |
1.80 |
8.10 |
|
0.90 |
0.80 |
2.60 |
8.10 |
|
1.05 |
0.60 |
3.40 |
8.10 |
|
1.20 |
0.45 |
4.10 |
8.10 |
.
