Anchoring on the structure
Positioning point and suspension point
|

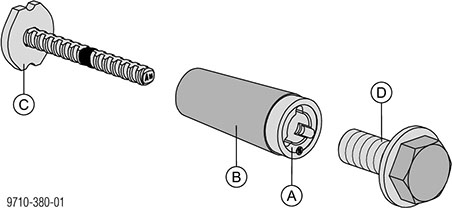

A Universal climbing cone or |
|
B Sealing sleeve K 15.0 (expendable anchoring component) |
|
C Stop anchor (expendable anchoring component) |
|
D Cone screw B 7cm |
▪ Universal climbing cone 15.0 or
Universal climbing cone 15.0 2G
- The positioning points and the suspension points are both prepared using the same cone.
▪ Stop anchor 15.0
- Expendable anchoring component for anchoring the universal climbing cone (and thus the working platform) in the concrete from one side.
▪ Cone screw B 7cm
- Positioning point – for fastening the universal climbing cone.
- On the suspension point – as a safe means of suspending the climbing unit.
.
