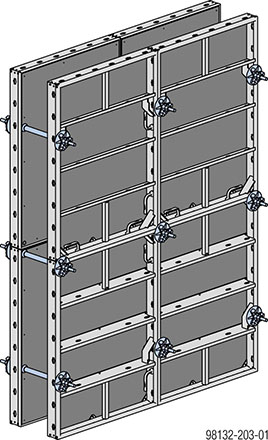

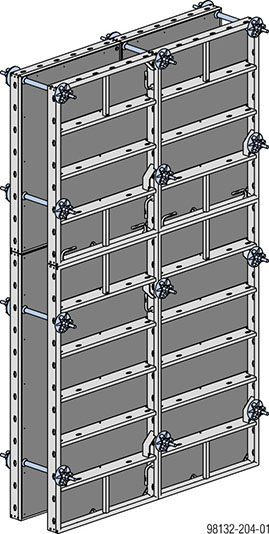

▪ Place a form tie at every form-tie point that is not covered by an anchor plate.

▪ Always tie in the bigger (wider) of the two panels.

For exceptions, see the sections headed 'Length adjustment using closures', 'Vertical stacking of panels' and/or '90 degree corners'.

NOTICE

Sensitive rod steel!

▪ Never weld or heat tie rods.

▪ Tie rods that are damaged or have been weakened by corrosion or wear must be withdrawn from use and destroyed.

Tie-rod wrench 15.0/20.0

For turning and holding the tie rods.
