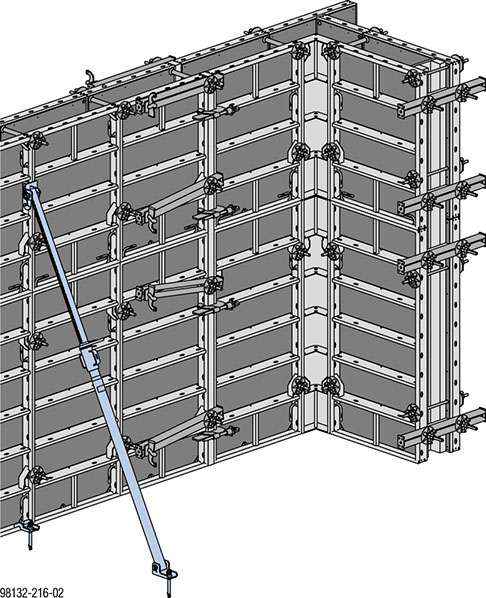

Plumbing accessories brace the formwork against wind loads and make it easier to plumb and align.
|
Product features: ▪ can be extended in 8 cm increments ▪ Fine adjustment by screw-thread ▪ All parts are captive, including the telescopic tube which has a safety stop to prevent dropout |
|
|
WARNING Risk of the formwork tipping over! ➤ Formwork panels must be held stable in every phase of construction work! ➤ Observe all applicable safety regulations! ➤ If high wind speeds are likely, and when work finishes for the day or before prolonged work-breaks, always take extra precautions to fix the formwork in place. |
Plumbing strut 260 + Framini panel-strut head plus EB:
|
Formwork height [m] |
Connection height [m] |
Permissible spacing [m] |
|---|---|---|
|
2.0 |
1.325 |
2.55 |
|
2.5 |
1.825 |
2.45 |
|
3.0 |
2.125 |
2.10 |
|
3.5 |
2.125 |
1.50 |
|
Max. anchoring load: |
||
Panel strut 340 + Framini panel-strut head plus EB:
|
Formwork height [m] |
Connection height [m] |
Permissible spacing [m] |
|---|---|---|
|
3.0 |
2.125 |
2.50 |
|
3.5 |
2.125 |
1.80 |
|
4.0 |
2.575 |
1.75 |
|
4.5 |
2.875 |
1.50 |
|
Max. anchoring load: |
||
The values apply where the wind pressure we = 0.65 kN/m2. This results in an impact pressure qp = 0.5 kN/m2 (102 km/h) where cp, net = 1.3. The greater wind loads encountered at exposed formwork-ends must be restrained by additional plumbing accessories (e.g. struts or pipe-braces). In cases where higher wind pressure is encountered, the number of struts must be determined by statical calculation!
|
|
For more information, see the Calculation Guide 'Wind loads to the Eurocodes', or consult your Doka technician! |
Note:
Every gang-form must be supported by at least 2 plumbing accessories.
.
