Mounting the Fixing unit for Framax stripping corner I
➤ Remove the pegging tube from the fixing unit.
➤ Place the spindle tube on the centring stud of the stripping corner.
➤ Twist the spindle tube clockwise until fully engaged.
|
|
|
A Spindle tube |
|
B Spindle nut |
|
C Pegging tube |
|
D Adapter for Framax stripping corner I |
|
E Centring stud of stripping corner |

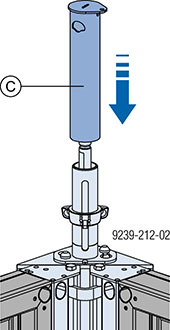

➤ Push the pegging tube over the thread of the spindle tube.
➤ Insert Connecting pin 10cm through the pegging tube and the Adapter for Framax stripping corner I and secure with Spring cotter 5mm.
➤ Tighten the spindle nut against the pegging tube.
|
|
|
D Spindle nut |
|
E Pegging tube |
|
F Connecting pin 10cm |
|
G Spring cotter 5mm |
.
