Product presentation
|

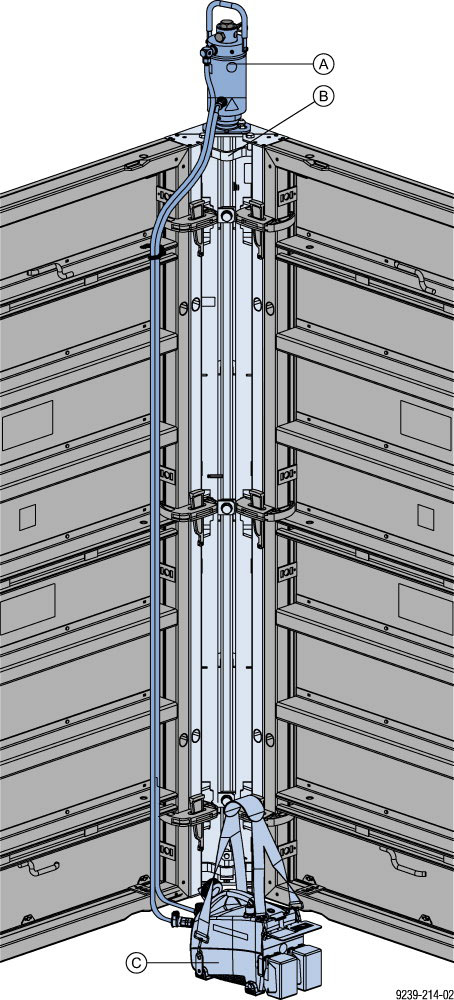

A Framax stripping cylinder I |
|
B Framax stripping corner I |
|
C Battery hydraulic unit V2.5 200bar DA |
|
|
Follow the directions in the User Information booklet of the formwork system that is being used! |
.
Data on rating plate
|
||
|
Designation: Framax stripping corner I hydraulic |
||
|
Max. cylinder force: |
10000 kg |
22000 lbs |
|
Year of manufacture: see rating plate |
||
.

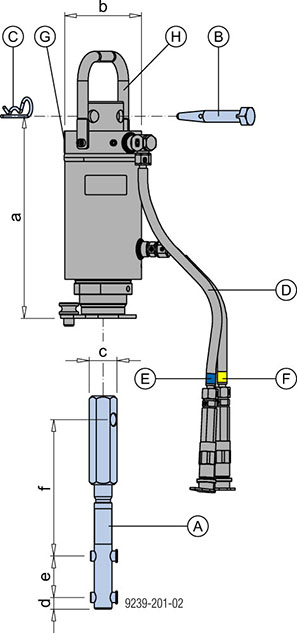

Framax stripping cylinder I
a ... Adjusting range between 342 mm and 438 mm
b ... ø130 mm
c ... SW 41
d ... 20 mm
e ... 70 mm
f ... Adjusting range between 217.5 mm and 242.5 mm
|
A Adapter for Framax stripping corner I |
|
B Connecting pin 10cm |
|
C Spring cotter 5mm |
|
D Pair of hydraulic hoses 4.0m |
|
E Flatface BG2 connector (coloured blue) |
|
F Flatface BG2 connector (coloured yellow) |
|
G Rating plate |
|
H Handle, swivelling |
As-delivered condition:
The Adapter for Framax stripping corner I is pinned to the Framax stripping corner I with a Connecting pin 10cm and secured with a Spring cotter 5mm.
|
Max. cylinder force: 10000 kg (22000 lbs) |
|
|
WARNING Do not use the handle as a lifting point for crane transport of the Framax stripping cylinder and the formwork! Danger of formwork dropping from crane! ➤ Use only suitable lifting accessories and slinging points. |
.
