Produktübersicht

[kg]

Art.-Nr.

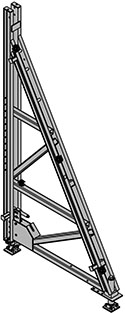

Abstützbock-Universal F 4,50m   ( 306,0 kg | 580500000 )

Supporting constr. frame Universal F 4.50m

Anbaurahmen F 1,50m   ( 236,0 kg | 580502000 )

Attachable frame F 1.50m

Anbaurahmen F 2,00m   ( 451,0 kg | 580501000 )

Attachable frame F 2.00m

Abstützbockspindel vorne   ( 17,0 kg | 580508000 )

Front spindle for supporting constr. frame

Abstützbockspindel hinten   ( 18,3 kg | 580515000 )

Rear spindle for supporting constr. frame

Ankerriegel 0,70m   ( 27,0 kg | 580517000 )

Ankerriegel 1,95m   ( 76,3 kg | 580545000 )

Ankerriegel 2,95m   ( 110,0 kg | 580546000 )

Anchor waling

Mehrzweckriegel WS10 Top50 1,00m   ( 19,6 kg | 580003000 )

Mehrzweckriegel WS10 Top50 1,75m   ( 35,0 kg | 580006000 )

Mehrzweckriegel WS10 Top50 2,00m   ( 38,9 kg | 580007000 )

Mehrzweckriegel WS10 Top50 2,50m   ( 48,7 kg | 580009000 )

Mehrzweckriegel WS10 Top50 2,75m   ( 54,2 kg | 580010000 )

Mehrzweckriegel WS10 Top50 3,00m   ( 60,2 kg | 580011000 )

Mehrzweckriegel WS10 Top50 3,50m   ( 68,4 kg | 580012000 )

Mehrzweckriegel WS10 Top50 4,00m   ( 79,4 kg | 580013000 )

Multi-purpose waling WS10 Top50

Mehrzweckriegel WU12 Top50 2,00m   ( 50,0 kg | 580022000 )

Mehrzweckriegel WU12 Top50 3,00m   ( 75,7 kg | 580024000 )

Multi-purpose waling WU12 Top50

Ankerprofil 0,55m   ( 44,5 kg | 582904000 )

Anchoring profile 0.55m

Ankerriegelhalter   ( 0,62 kg | 580539000 )

Anchor waling positioner

Ecklasche Abstützbock   ( 44,4 kg | 580518000 )

Corner plate supporting constr. frame

Fassadenriegel WS10 2,50m   ( 50,0 kg | 580692000 )

Facade waling WS10 2.50m

Verbindungsbolzen 10cm   ( 0,34 kg | 580201000 )

Connecting pin 10cm

Federvorstecker 5mm   ( 0,03 kg | 580204000 )

Spring cotter 5mm

Bockdistanz 20cm   ( 9,4 kg | 580519000 )

Supporting construction distancer 20cm

Framax Xlife plus-Bockdistanz 12cm   ( 8,4 kg | 582938000 )

Framax Xlife plus supp.-frame distancer 12cm

Klemme für Bockdistanz 20cm   ( 5,0 kg | 582920000 )

Clamp for supp. constr. distancer 20cm

Riegelhalter 9-15cm   ( 2,7 kg | 580625000 )

Waling-to-bracket holder 9-15cm

Keilriegelhalter   ( 2,5 kg | 580526000 )

Waling-to-bracket holder

Framax-Universalverbinder 10-16cm   ( 0,60 kg | 588158000 )

Framax universal fixing bolt 10-16cm

Framax-Universalverbinder 10-25cm   ( 0,69 kg | 583002000 )

Framax universal fixing bolt 10-25cm

Framax-Spannklemme   ( 1,5 kg | 588152000 )

Framax wedge clamp

Framax-Bocklasche   ( 15,0 kg | 580506000 )

Framax supporting construct. frame connector

Framax-Bockschraube 36cm   ( 0,62 kg | 580505000 )

Framax supporting construct. frame bolt 36cm

Framax Xlife plus-Bockschraube   ( 3,5 kg | 582937000 )

Framax Xlife plus supporting-frame bolt

Ansteckrolle 200   ( 19,3 kg | 580538000 )

Attachable roller 200

Ansteckrolle 250   ( 47,0 kg | 580537000 )

Attachable roller 250

Hubwinde mit Transportroller   ( 37,0 kg | 580541000 )

Winch with transport device

Verfahrprofil F 2,00m vorne   ( 180,0 kg | 582925000 )

Travelling profile F 2.00m front

Radanschluss F 2,00m vorne   ( 33,7 kg | 582926000 )

Wheel connector F 2.00m front

Klemmbacke F 2,00m   ( 0,82 kg | 582927000 )

Clamping jaw F 2.00m

Klemmplatte F 2,00m   ( 3,5 kg | 582928000 )

Clamping plate F 2.00m

Zwischenplatte F 2,00m   ( 6,0 kg | 582929000 )

Intermediate plate F 2.00m

Verfahrprofil F 2,00m hinten   ( 187,5 kg | 582930000 )

Travelling profile F 2.00m rear

Radanschluss F 2,00m hinten   ( 44,5 kg | 582931000 )

Wheel connector F 2.00m rear

Anschlussplatte F 2,00m   ( 15,8 kg | 582932000 )

Connecting plate F 2.00m

Schraubplatte F 2,00m   ( 2,9 kg | 582933000 )

Bolting plate F 2.00m

Verbindungsplatte F 2,00m   ( 2,3 kg | 582934000 )

Connector plate F 2.00m

Hubkonsole F 2,00m hinten   ( 14,0 kg | 582935000 )

Lifting bracket F 2.00m rear

Anschraubkupplung 48mm 50   ( 0,84 kg | 682002000 )

Anschraubkupplung 48mm 95   ( 0,88 kg | 586013000 )

Screw-on coupler

Drehkupplung 48mm   ( 1,5 kg | 582560000 )

Swivel coupler 48mm

Gerüstrohr 48,3mm 0,50m   ( 1,7 kg | 682026000 )

Gerüstrohr 48,3mm 1,00m   ( 3,6 kg | 682014000 )

Gerüstrohr 48,3mm 1,50m   ( 5,4 kg | 682015000 )

Gerüstrohr 48,3mm 2,00m   ( 7,2 kg | 682016000 )

Gerüstrohr 48,3mm 2,50m   ( 9,0 kg | 682017000 )

Gerüstrohr 48,3mm 3,00m   ( 10,8 kg | 682018000 )

Gerüstrohr 48,3mm 3,50m   ( 12,6 kg | 682019000 )

Gerüstrohr 48,3mm 4,00m   ( 14,4 kg | 682021000 )

Gerüstrohr 48,3mm 4,50m   ( 16,2 kg | 682022000 )

Gerüstrohr 48,3mm 5,00m   ( 18,0 kg | 682023000 )

Gerüstrohr 48,3mm 5,50m   ( 19,8 kg | 682024000 )

Gerüstrohr 48,3mm 6,00m   ( 21,6 kg | 682025000 )

Gerüstrohr 48,3mm .....m   ( 3,6 kg | 682001000 )

Scaffold tube 48.3mm

Anschraubbühne MF75   ( 19,0 kg | 580669000 )

Screw-on access bracket MF75

Schwenkplatte MF   ( 4,5 kg | 580672000 )

Swivel plate MF

Schutzgeländerzwinge S   ( 11,5 kg | 580470000 )

Handrail clamp S

Prüfbock für Schräganker 15,0/20,0   ( 13,5 kg | 580514000 )

Testing truss for diagonal anchors 15.0/20.0

Universal-Werkzeugbox 15,0   ( 9,1 kg | 580392000 )

Universal tool box 15.0

Im Lieferumfang enthalten:

(A)Umschaltknarre 1/2"   ( 0,73 kg | 580580000 )

verzinkt

Länge: 30 cm

(B)Gabelschlüssel 13/17   ( 0,08 kg | 580577000 )

(C)Gabelschlüssel 22/24   ( 0,22 kg | 580587000 )

(D)Gabelschlüssel 30/32   ( 0,80 kg | 580897000 )

(E)Gabelschlüssel 36/41   ( 1,0 kg | 580586000 )

(F)Ringschlüssel 17/19   ( 0,27 kg | 580590000 )

(G)Vierkantnuss 22   ( 0,31 kg | 580589000 )

(H)Steckschlüssel 41   ( 0,99 kg | 580585000 )

(I)Verlängerung 11cm 1/2"   ( 0,20 kg | 580581000 )

(J)Verlängerung 22cm 1/2"   ( 0,31 kg | 580582000 )

(K)Kardangelenk 1/2"   ( 0,16 kg | 580583000 )

(L)Stecknuss 19 1/2" L   ( 0,16 kg | 580598000 )

(M)Stecknuss 13 1/2"   ( 0,06 kg | 580576000 )

(N)Stecknuss 24 1/2"   ( 0,12 kg | 580584000 )

(O)Stecknuss 30 1/2"   ( 0,20 kg | 580575000 )

(P)Vorlaufschlüssel 15,0 DK   ( 0,30 kg | 580579000 )

verzinkt

Länge: 8 cm

Schlüsselweite: 30 mm

Umschaltknarre 3/4"   ( 1,5 kg | 580894000 )

Reversible ratchet 3/4"

Stecknuss 46 3/4"   ( 0,70 kg | 580512000 )

Box nut 46 3/4"

Verlängerung 20cm 3/4"   ( 0,68 kg | 580683000 )

Extension 20cm 3/4"

Konusschlüssel 20,0   ( 3,5 kg | 581471000 )

Cone spanner 20.0

Lösewerkzeug Freistellkonus   ( 0,67 kg | 581864000 )

Clearance-cone dismantling tool

Ankersystem 15,0

Ankerstab 15,0mm verzinkt 0,50m   ( 0,72 kg | 581821000 )

Ankerstab 15,0mm verzinkt 0,75m   ( 1,1 kg | 581822000 )

Ankerstab 15,0mm verzinkt 1,00m   ( 1,4 kg | 581823000 )

Ankerstab 15,0mm verzinkt 1,25m   ( 1,8 kg | 581826000 )

Ankerstab 15,0mm verzinkt 1,50m   ( 2,2 kg | 581827000 )

Ankerstab 15,0mm verzinkt 1,75m   ( 2,5 kg | 581828000 )

Ankerstab 15,0mm verzinkt 2,00m   ( 2,9 kg | 581829000 )

Ankerstab 15,0mm verzinkt 2,50m   ( 3,6 kg | 581852000 )

Ankerstab 15,0mm verzinkt .....m   ( 1,4 kg | 581824000 )

Ankerstab 15,0mm unbehandelt 0,50m   ( 0,73 kg | 581870000 )

Ankerstab 15,0mm unbehandelt 0,75m   ( 1,1 kg | 581871000 )

Ankerstab 15,0mm unbehandelt 1,00m   ( 1,4 kg | 581874000 )

Ankerstab 15,0mm unbehandelt 1,25m   ( 1,8 kg | 581886000 )

Ankerstab 15,0mm unbehandelt 1,50m   ( 2,1 kg | 581876000 )

Ankerstab 15,0mm unbehandelt 1,75m   ( 2,5 kg | 581887000 )

Ankerstab 15,0mm unbehandelt 2,00m   ( 2,9 kg | 581875000 )

Ankerstab 15,0mm unbehandelt 2,50m   ( 3,6 kg | 581877000 )

Ankerstab 15,0mm unbehandelt 3,00m   ( 4,3 kg | 581878000 )

Ankerstab 15,0mm unbehandelt 3,50m   ( 5,0 kg | 581888000 )

Ankerstab 15,0mm unbehandelt 4,00m   ( 5,7 kg | 581879000 )

Ankerstab 15,0mm unbehandelt 5,00m   ( 7,2 kg | 581880000 )

Ankerstab 15,0mm unbehandelt 6,00m   ( 8,6 kg | 581881000 )

Ankerstab 15,0mm unbehandelt 7,50m   ( 10,7 kg | 581882000 )

Ankerstab 15,0mm unbehandelt .....m   ( 1,4 kg | 581873000 )

Tie rod 15.0mm

Superplatte 15,0   ( 1,1 kg | 581966000 )

Super plate 15.0

Sechskantmutter 15,0   ( 0,23 kg | 581964000 )

Hexagon nut 15.0

Framax-Druckplatte 6/15   ( 0,80 kg | 588183000 )

Framax pressure plate 6/15

Flügelmutter 15,0   ( 0,31 kg | 581961000 )

Wing nut 15.0

Ankerplatte 15/20   ( 1,8 kg | 581929000 )

Anchor plate 15/20

Ankerkopf 15,0 5cm 1,20m   ( 2,5 kg | 581832000 )

She-bolt 15.0 5cm 1.20m

Ankerkopf 15,0 5cm   ( 1,7 kg | 581972000 )

She-bolt 15.0 5cm

Vorlaufkonus 15,0 5cm   ( 0,43 kg | 581969000 )

Positioning cone 15.0 5cm

Dichtungshülse 15,0 5cm   ( 0,008 kg | 581990000 )

Sealing sleeve 15.0 5cm

Verbindungsmuffe 15,0   ( 0,49 kg | 581981000 )

Rod connector 15.0

Wellenanker 15,0   ( 0,92 kg | 581984000 )

Pigtail anchor 15.0

Sperranker 15,0 A40   ( 0,71 kg | 581999000 )

Stop anchor 15.0 A40

Sperranker 15,0 A16   ( 0,38 kg | 581997000 )

Stop anchor 15.0 A16

Ankerhalter 15,0   ( 0,43 kg | 581835000 )

Anchor holder 15.0

Dichtscheibe 15,0   ( 0,002 kg | 581885000 )

Sealing disc 15.0

Freistellkonus 15,0   ( 0,51 kg | 581865000 )

Clearance cone 15.0

Felsanker-Spreizeinheit 15,0   ( 0,41 kg | 581120000 )

Rock anchor spreader unit 15.0

Felsanker-Einbaurohr   ( 0,85 kg | 581123000 )

Rock anchor installation tube

Vorspanngerät 300kN   ( 32,0 kg | 581815000 )

Tensioning instrument 300kN

Vorspanngerät B   ( 34,5 kg | 580570000 )

Tensioning instrument B

Schutzkappe 15,0/20,0   ( 0,03 kg | 581858000 )

Protective cap 15.0/20.0

Ankerstabschlüssel 15,0/20,0   ( 1,9 kg | 580594000 )

Tie-rod wrench 15.0/20.0

Freilaufknarre SW27   ( 0,49 kg | 581855000 )

Friction type ratchet SW27

Steckschlüssel 27 0,65m   ( 1,9 kg | 581854000 )

Box spanner 27 0.65m

Ankersystem 20,0

Ankerstab 20,0mm verzinkt 0,50m   ( 1,3 kg | 581411000 )

Ankerstab 20,0mm verzinkt 0,75m   ( 1,9 kg | 581417000 )

Ankerstab 20,0mm verzinkt 1,00m   ( 2,5 kg | 581412000 )

Ankerstab 20,0mm verzinkt 1,25m   ( 3,2 kg | 581418000 )

Ankerstab 20,0mm verzinkt 1,50m   ( 3,8 kg | 581413000 )

Ankerstab 20,0mm verzinkt 2,00m   ( 5,0 kg | 581414000 )

Ankerstab 20,0mm verzinkt 2,50m   ( 6,3 kg | 581430000 )

Ankerstab 20,0mm verzinkt .....m   ( 2,5 kg | 581410000 )

Ankerstab 20,0mm unbehandelt 0,50m   ( 1,3 kg | 581405000 )

Ankerstab 20,0mm unbehandelt 0,75m   ( 1,9 kg | 581416000 )

Ankerstab 20,0mm unbehandelt 1,00m   ( 2,5 kg | 581406000 )

Ankerstab 20,0mm unbehandelt 1,50m   ( 3,8 kg | 581407000 )

Ankerstab 20,0mm unbehandelt 2,00m   ( 5,0 kg | 581408000 )

Ankerstab 20,0mm unbehandelt .....m   ( 2,5 kg | 581403000 )

Tie rod 20.0mm

Superplatte 20,0 B   ( 2,0 kg | 581424000 )

Super plate 20.0 B

Ankerkopf 20,0   ( 5,6 kg | 581435000 )

She-bolt 20.0

Dichtungshülse 20,0   ( 0,03 kg | 581441000 )

Sealing sleeve 20.0

Ankerkonus 20,0   ( 1,0 kg | 581437000 )

Anchoring cone 20.0

Wellenanker 20,0   ( 2,0 kg | 581450000 )

Pigtail anchor 20.0

Sperranker 20,0 C40   ( 1,2 kg | 581458000 )

Stop anchor 20.0 C40

Sperranker 20,0 C17   ( 0,62 kg | 581457000 )

Stop anchor 20.0 C17

Ankerhalter 20,0   ( 0,43 kg | 581427000 )

Anchor holder 20.0

Dichtscheibe 43   ( 0,002 kg | 581836000 )

Sealing disc 43

Freistellkonus 20,0   ( 0,49 kg | 581866000 )

Clearance cone 20.0

Ankersystem 26,5

Ankerstab 26,5mm unbehandelt .....m   ( 4,5 kg | 581883000 )

Tie rod 26.5mm non-treated .....m

Sechskantmutter 26,5   ( 0,73 kg | 581985000 )

Hexagon nut 26.5

Ankerplatte 26,5   ( 3,4 kg | 581986000 )

Anchor plate 26.5

Wellenanker 26,5   ( 3,6 kg | 581900000 )

Pigtail anchor 26.5

Verbindungsmuffe 26,5   ( 1,4 kg | 581988000 )

Rod connector 26.5

Ankerhalter 26,5   ( 0,43 kg | 581943000 )

Anchor holder 26.5

Freistellkonus 26,5   ( 0,46 kg | 581867000 )

Clearance cone 26.5

Ankerstabschlüssel 20,0/26,5   ( 1,7 kg | 580593000 )

Tie-rod wrench 20.0/26.5

Mehrweggebinde

Doka-Gitterbox 1,70x0,80m   ( 87,0 kg | 583012000 )

Doka skeleton transport box 1.70x0.80m

Doka-Mehrwegcontainer 1,20x0,80m   ( 70,0 kg | 583011000 )

Doka multi-trip transport box 1.20x0.80m

Mehrwegcontainer Unterteilung 0,80m   ( 3,7 kg | 583018000 )

Mehrwegcontainer Unterteilung 1,20m   ( 5,5 kg | 583017000 )

Multi-trip transport box partition

Doka-Mehrwegcontainer 1,20x0,80x0,41m   ( 42,5 kg | 583009000 )

Doka multi-trip transport box 1.20x0.80x0.41m

Doka-Stapelpalette 1,55x0,85m   ( 41,0 kg | 586151000 )

Doka stacking pallet 1.55x0.85m

Doka-Stapelpalette 1,20x0,80m   ( 38,0 kg | 583016000 )

Doka stacking pallet 1.20x0.80m

Doka-Kleinteilebox   ( 106,4 kg | 583010000 )

Doka accessory box

Anklemm-Radsatz B   ( 33,6 kg | 586168000 )

Bolt-on castor set B
