Component overview
[kg]
Article n°

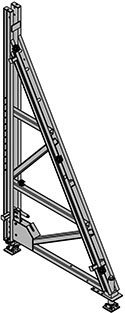

Supporting constr. frame Universal F 4.50m ( 306.0 kg | 580500000 )
Abstützbock-Universal F 4,50m
|
Painted blue Length: 196 cm Height: 365 - 394 cm |
|
Attachable frame F 1.50m ( 236.0 kg | 580502000 )
Anbaurahmen F 1,50m
|
Painted blue Length: 280 cm |
|
Attachable frame F 2.00m ( 451.0 kg | 580501000 )
Anbaurahmen F 2,00m
|
Painted blue Length: 394 cm |
|
Front spindle for supporting constr. frame ( 17.0 kg | 580508000 )
Abstützbockspindel vorne
|
Galvanised |
|
Rear spindle for supporting constr. frame ( 18.3 kg | 580515000 )
Abstützbockspindel hinten
|
Galvanised |
|
Anchor waling 0.70m ( 27.0 kg | 580517000 )
Anchor waling 1.95m ( 76.3 kg | 580545000 )
Anchor waling 2.95m ( 110.0 kg | 580546000 )
Ankerriegel
|
Painted blue |
|
Multi-purpose waling WS10 Top50 1.00m ( 19.6 kg | 580003000 )
Multi-purpose waling WS10 Top50 1.75m ( 35.0 kg | 580006000 )
Multi-purpose waling WS10 Top50 2.00m ( 38.9 kg | 580007000 )
Multi-purpose waling WS10 Top50 2.50m ( 48.7 kg | 580009000 )
Multi-purpose waling WS10 Top50 2.75m ( 54.2 kg | 580010000 )
Multi-purpose waling WS10 Top50 3.00m ( 60.2 kg | 580011000 )
Multi-purpose waling WS10 Top50 3.50m ( 68.4 kg | 580012000 )
Multi-purpose waling WS10 Top50 4.00m ( 79.4 kg | 580013000 )
Mehrzweckriegel WS10 Top50
|
Painted blue |
|
Multi-purpose waling WU12 Top50 2.00m ( 50.0 kg | 580022000 )
Multi-purpose waling WU12 Top50 3.00m ( 75.7 kg | 580024000 )
Mehrzweckriegel WU12 Top50
|
Painted blue |
|
Anchoring profile 0.55m ( 44.5 kg | 582904000 )
Ankerprofil 0,55m
|
Painted blue |
|
Anchor waling positioner ( 0.62 kg | 580539000 )
Ankerriegelhalter
|
Galvanised Length: 31 cm |
|
Corner plate supporting constr. frame ( 44.4 kg | 580518000 )
Ecklasche Abstützbock
|
Painted blue Length: 92 cm Width: 92 cm |
|
Facade waling WS10 2.50m ( 50.0 kg | 580692000 )
Fassadenriegel WS10 2,50m
|
Painted blue |
|
Connecting pin 10cm ( 0.34 kg | 580201000 )
Verbindungsbolzen 10cm
|
Galvanised Length: 14 cm |
|
Spring cotter 5mm ( 0.03 kg | 580204000 )
Federvorstecker 5mm
|
Galvanised Length: 13 cm |
|
Supporting construction distancer 20cm ( 9.4 kg | 580519000 )
Bockdistanz 20cm
|
Galvanised Length: 25 cm Width: 19 cm Height: 20 cm |
|
Framax Xlife plus supp.-frame distancer 12cm ( 8.4 kg | 582938000 )
Framax Xlife plus-Bockdistanz 12cm
|
Galvanised Length: 29 cm Width: 19 cm Height: 14 cm |
|
Clamp for supp. constr. distancer 20cm ( 5.0 kg | 582920000 )
Klemme für Bockdistanz 20cm
|
Galvanised Length: 36 cm Width: 7 cm |
|
Waling-to-bracket holder 9-15cm ( 2.7 kg | 580625000 )
Riegelhalter 9-15cm
|
Galvanised |
|
Waling-to-bracket holder ( 2.5 kg | 580526000 )
Keilriegelhalter
|
Galvanised Length: 26 cm Height: 31 cm |
|
Framax universal fixing bolt 10-16cm ( 0.60 kg | 588158000 )
Framax-Universalverbinder 10-16cm
|
Galvanised Length: 26 cm |
|
Framax universal fixing bolt 10-25cm ( 0.69 kg | 583002000 )
Framax-Universalverbinder 10-25cm
|
Galvanised Length: 36 cm |
|
Framax wedge clamp ( 1.5 kg | 588152000 )
Framax-Spannklemme
|
Galvanised Length: 21 cm |
|
Framax supporting construct. frame connector ( 15.0 kg | 580506000 )
Framax-Bocklasche
|
Painted blue Height: 77 cm |
|
Framax supporting construct. frame bolt 36cm ( 0.62 kg | 580505000 )
Framax-Bockschraube 36cm
|
Galvanised |
|
Framax Xlife plus supporting-frame bolt ( 3.5 kg | 582937000 )
Framax Xlife plus-Bockschraube
|
Galvanised Length: 40.5 cm |
|
Attachable roller 200 ( 19.3 kg | 580538000 )
Ansteckrolle 200
|
Painted blue Height: 38 cm |
|
Attachable roller 250 ( 47.0 kg | 580537000 )
Ansteckrolle 250
|
Painted blue Height: 78 cm |
|
Winch with transport device ( 37.0 kg | 580541000 )
Hubwinde mit Transportroller
|
Painted blue Height: 127 cm Follow the directions in the "Operating Instructions"! |
|
Travelling profile F 2.00m front ( 180.0 kg | 582925000 )
Verfahrprofil F 2,00m vorne
|
Galvanised Length: 600 cm |
|
Wheel connector F 2.00m front ( 33.7 kg | 582926000 )
Radanschluss F 2,00m vorne
|
Galvanised Length: 30 cm Width: 30 cm Height: 16.5 cm |
|
Clamping jaw F 2.00m ( 0.82 kg | 582927000 )
Klemmbacke F 2,00m
|
Galvanised Length: 12.5 cm |
|
Clamping plate F 2.00m ( 3.5 kg | 582928000 )
Klemmplatte F 2,00m
|
Galvanised Length: 24 cm |
|
Intermediate plate F 2.00m ( 6.0 kg | 582929000 )
Zwischenplatte F 2,00m
|
Galvanised Length: 25 cm Width: 18 cm |
|
Travelling profile F 2.00m rear ( 187.5 kg | 582930000 )
Verfahrprofil F 2,00m hinten
|
Galvanised Length: 574 cm |
|
Wheel connector F 2.00m rear ( 44.5 kg | 582931000 )
Radanschluss F 2,00m hinten
|
Galvanised Height: 61.5 cm |
|
Connecting plate F 2.00m ( 15.8 kg | 582932000 )
Anschlussplatte F 2,00m
|
Galvanised Length: 44.1 cm Width: 35.7 cm |
|
Bolting plate F 2.00m ( 2.9 kg | 582933000 )
Schraubplatte F 2,00m
|
Galvanised Length: 20 cm |
|
Connector plate F 2.00m ( 2.3 kg | 582934000 )
Verbindungsplatte F 2,00m
|
Galvanised Length: 42 cm |
|
Lifting bracket F 2.00m rear ( 14.0 kg | 582935000 )
Hubkonsole F 2,00m hinten
|
Galvanised Height: 48.6 cm |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Screw-on coupler 48mm 95 ( 0.88 kg | 586013000 )
Anschraubkupplung
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Swivel coupler 48mm ( 1.5 kg | 582560000 )
Drehkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Screw-on access bracket MF75 ( 19.0 kg | 580669000 )
Anschraubbühne MF75
|
Galvanised Length: 113 cm Height: 152 cm |
|
Swivel plate MF ( 4.5 kg | 580672000 )
Schwenkplatte MF
|
Galvanised Length: 29 cm Height: 20 cm Width-across: 30 mm |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Testing truss for diagonal anchors 15.0/20.0 ( 13.5 kg | 580514000 )
Prüfbock für Schräganker 15,0/20,0
|
Galvanised Length: 32 cm Width: 25 cm Height: 19 cm |
|
Universal tool box 15.0 ( 9.1 kg | 580392000 )
Universal-Werkzeugbox 15,0
included in scope of supply:
(A)Reversible ratchet 1/2" ( 0.73 kg | 580580000 )
Galvanised
Length: 30 cm
(B)Fork wrench 13/17 ( 0.08 kg | 580577000 )
(C)Fork wrench 22/24 ( 0.22 kg | 580587000 )
(D)Fork wrench 30/32 ( 0.80 kg | 580897000 )
(E)Fork wrench 36/41 ( 1.0 kg | 580586000 )
(F)Ring spanner 17/19 ( 0.27 kg | 580590000 )
(G)Square nut 22 ( 0.31 kg | 580589000 )
(H)Box spanner 41 ( 0.99 kg | 580585000 )
(I)Extension 11cm 1/2" ( 0.20 kg | 580581000 )
(J)Extension 22cm 1/2" ( 0.31 kg | 580582000 )
(K)Universal joint coupling 1/2" ( 0.16 kg | 580583000 )
(L)Box nut 19 1/2" L ( 0.16 kg | 580598000 )
(M)Box nut 13 1/2" ( 0.06 kg | 580576000 )
(N)Box nut 24 1/2" ( 0.12 kg | 580584000 )
(O)Box nut 30 1/2" ( 0.20 kg | 580575000 )
(P)Positioning cone spanner 15.0 DK ( 0.30 kg | 580579000 )
Galvanised
Length: 8 cm
Width-across: 30 mm
|
|
|
Reversible ratchet 3/4" ( 1.5 kg | 580894000 )
Umschaltknarre 3/4"
|
Galvanised Length: 50 cm |
|
Box nut 46 3/4" ( 0.70 kg | 580512000 )
Stecknuss 46 3/4"
|
|
|
Extension 20cm 3/4" ( 0.68 kg | 580683000 )
Verlängerung 20cm 3/4"
|
|
|
Cone spanner 20.0 ( 3.5 kg | 581471000 )
Konusschlüssel 20,0
|
Galvanised Length: 57 cm |
|
Clearance-cone dismantling tool ( 0.67 kg | 581864000 )
Lösewerkzeug Freistellkonus
|
Galvanised Length: 10.7 cm Width-across: 24 mm |
|
Tie rod system 15.0
Tie rod 15.0mm galvanised 0.50m ( 0.72 kg | 581821000 )
Tie rod 15.0mm galvanised 0.75m ( 1.1 kg | 581822000 )
Tie rod 15.0mm galvanised 1.00m ( 1.4 kg | 581823000 )
Tie rod 15.0mm galvanised 1.25m ( 1.8 kg | 581826000 )
Tie rod 15.0mm galvanised 1.50m ( 2.2 kg | 581827000 )
Tie rod 15.0mm galvanised 1.75m ( 2.5 kg | 581828000 )
Tie rod 15.0mm galvanised 2.00m ( 2.9 kg | 581829000 )
Tie rod 15.0mm galvanised 2.50m ( 3.6 kg | 581852000 )
Tie rod 15.0mm galvanised .....m ( 1.4 kg | 581824000 )
Tie rod 15.0mm non-treated 0.50m ( 0.73 kg | 581870000 )
Tie rod 15.0mm non-treated 0.75m ( 1.1 kg | 581871000 )
Tie rod 15.0mm non-treated 1.00m ( 1.4 kg | 581874000 )
Tie rod 15.0mm non-treated 1.25m ( 1.8 kg | 581886000 )
Tie rod 15.0mm non-treated 1.50m ( 2.1 kg | 581876000 )
Tie rod 15.0mm non-treated 1.75m ( 2.5 kg | 581887000 )
Tie rod 15.0mm non-treated 2.00m ( 2.9 kg | 581875000 )
Tie rod 15.0mm non-treated 2.50m ( 3.6 kg | 581877000 )
Tie rod 15.0mm non-treated 3.00m ( 4.3 kg | 581878000 )
Tie rod 15.0mm non-treated 3.50m ( 5.0 kg | 581888000 )
Tie rod 15.0mm non-treated 4.00m ( 5.7 kg | 581879000 )
Tie rod 15.0mm non-treated 5.00m ( 7.2 kg | 581880000 )
Tie rod 15.0mm non-treated 6.00m ( 8.6 kg | 581881000 )
Tie rod 15.0mm non-treated 7.50m ( 10.7 kg | 581882000 )
Tie rod 15.0mm non-treated .....m ( 1.4 kg | 581873000 )
Ankerstab 15,0mm
|
|
|
Super plate 15.0 ( 1.1 kg | 581966000 )
Superplatte 15,0
|
Galvanised Height: 6 cm Diameter: 12 cm Width-across: 27 mm |
|
Hexagon nut 15.0 ( 0.23 kg | 581964000 )
Sechskantmutter 15,0
|
Galvanised Length: 5 cm Width-across: 30 mm |
|
Framax pressure plate 6/15 ( 0.80 kg | 588183000 )
Framax-Druckplatte 6/15
|
Galvanised |
|
Wing nut 15.0 ( 0.31 kg | 581961000 )
Flügelmutter 15,0
|
Galvanised Length: 10 cm Height: 5 cm Width-across: 27 mm |
|
Anchor plate 15/20 ( 1.8 kg | 581929000 )
Ankerplatte 15/20
|
Galvanised |
|
She-bolt 15.0 5cm 1.20m ( 2.5 kg | 581832000 )
Ankerkopf 15,0 5cm 1,20m
|
Galvanised Length: 131 cm Width-across: 24 mm Follow the directions in the "Fitting instructions"! |
|
She-bolt 15.0 5cm ( 1.7 kg | 581972000 )
Ankerkopf 15,0 5cm
|
Galvanised Length: 76 cm Width-across: 24 mm Follow the directions in the "Fitting instructions"! |
|
Positioning cone 15.0 5cm ( 0.43 kg | 581969000 )
Vorlaufkonus 15,0 5cm
|
Galvanised Length: 11 cm Diameter: 3 cm Follow the directions in the "Fitting instructions"! |
|
Sealing sleeve 15.0 5cm ( 0.008 kg | 581990000 )
Dichtungshülse 15,0 5cm
|
Orange Length: 10 cm Diameter: 3 cm |
|
Rod connector 15.0 ( 0.49 kg | 581981000 )
Verbindungsmuffe 15,0
|
Non-treated Length: 10.5 cm Diameter: 3.2 cm |
|
Pigtail anchor 15.0 ( 0.92 kg | 581984000 )
Wellenanker 15,0
|
Non-treated Length: 67 cm |
|
Stop anchor 15.0 A40 ( 0.71 kg | 581999000 )
Sperranker 15,0 A40
|
Non-treated |
|
Stop anchor 15.0 A16 ( 0.38 kg | 581997000 )
Sperranker 15,0 A16
|
Non-treated |
|
Anchor holder 15.0 ( 0.43 kg | 581835000 )
Ankerhalter 15,0
|
Non-treated |
|
Sealing disc 15.0 ( 0.002 kg | 581885000 )
Dichtscheibe 15,0
|
Black Diameter: 4.2 cm |
|
Clearance cone 15.0 ( 0.51 kg | 581865000 )
Freistellkonus 15,0
|
Black Blue Length: 20.6 cm Diameter: 7 cm Follow the directions in the "Fitting instructions"! |
|
Rock anchor spreader unit 15.0 ( 0.41 kg | 581120000 )
Felsanker-Spreizeinheit 15,0
|
Galvanised Length: 9 cm Diameter: 4 cm Follow the directions in the "Fitting instructions"! |
|
Rock anchor installation tube ( 0.85 kg | 581123000 )
Felsanker-Einbaurohr
|
Galvanised Length: 50 cm Diameter: 3 cm |
|
Tensioning instrument 300kN ( 32.0 kg | 581815000 )
Vorspanngerät 300kN
|
Galvanised |
|
Tensioning instrument B ( 34.5 kg | 580570000 )
Vorspanngerät B
|
Galvanised |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Tie-rod wrench 15.0/20.0 ( 1.9 kg | 580594000 )
Ankerstabschlüssel 15,0/20,0
|
Galvanised Length: 37 cm Diameter: 8 cm |
|
Friction type ratchet SW27 ( 0.49 kg | 581855000 )
Freilaufknarre SW27
|
Manganese-phosphated Length: 30 cm |
|
Box spanner 27 0.65m ( 1.9 kg | 581854000 )
Steckschlüssel 27 0,65m
|
Galvanised |
|
Tie rod system 20.0
Tie rod 20.0mm galvanised 0.50m ( 1.3 kg | 581411000 )
Tie rod 20.0mm galvanised 0.75m ( 1.9 kg | 581417000 )
Tie rod 20.0mm galvanised 1.00m ( 2.5 kg | 581412000 )
Tie rod 20.0mm galvanised 1.25m ( 3.2 kg | 581418000 )
Tie rod 20.0mm galvanised 1.50m ( 3.8 kg | 581413000 )
Tie rod 20.0mm galvanised 2.00m ( 5.0 kg | 581414000 )
Tie rod 20.0mm galvanised 2.50m ( 6.3 kg | 581430000 )
Tie rod 20.0mm galvanised .....m ( 2.5 kg | 581410000 )
Tie rod 20.0mm non-treated 0.50m ( 1.3 kg | 581405000 )
Tie rod 20.0mm non-treated 0.75m ( 1.9 kg | 581416000 )
Tie rod 20.0mm non-treated 1.00m ( 2.5 kg | 581406000 )
Tie rod 20.0mm non-treated 1.50m ( 3.8 kg | 581407000 )
Tie rod 20.0mm non-treated 2.00m ( 5.0 kg | 581408000 )
Tie rod 20.0mm non-treated .....m ( 2.5 kg | 581403000 )
Ankerstab 20,0mm
|
|
|
Super plate 20.0 B ( 2.0 kg | 581424000 )
Superplatte 20,0 B
|
Galvanised Height: 7 cm Diameter: 14 cm Width-across: 34 mm |
|
She-bolt 20.0 ( 5.6 kg | 581435000 )
Ankerkopf 20,0
|
Galvanised Length: 140 cm Diameter: 5 cm Width-across: 41 mm |
|
Sealing sleeve 20.0 ( 0.03 kg | 581441000 )
Dichtungshülse 20,0
|
Grey Length: 16 cm Diameter: 5 cm |
|
Anchoring cone 20.0 ( 1.0 kg | 581437000 )
Ankerkonus 20,0
|
Galvanised Length: 15 cm Diameter: 5 cm |
|
Pigtail anchor 20.0 ( 2.0 kg | 581450000 )
Wellenanker 20,0
|
Non-treated Length: 76 cm |
|
Stop anchor 20.0 C40 ( 1.2 kg | 581458000 )
Sperranker 20,0 C40
|
Non-treated |
|
Stop anchor 20.0 C17 ( 0.62 kg | 581457000 )
Sperranker 20,0 C17
|
Non-treated |
|
Anchor holder 20.0 ( 0.43 kg | 581427000 )
Ankerhalter 20,0
|
Non-treated |
|
Sealing disc 43 ( 0.002 kg | 581836000 )
Dichtscheibe 43
|
Black |
|
Clearance cone 20.0 ( 0.49 kg | 581866000 )
Freistellkonus 20,0
|
Black Yellow Length: 20.6 cm Diameter: 7 cm Follow the directions in the "Fitting instructions"! |
|
Tie rod system 26.5
Tie rod 26.5mm non-treated .....m ( 4.5 kg | 581883000 )
Ankerstab 26,5mm unbehandelt .....m
|
|
|
Hexagon nut 26.5 ( 0.73 kg | 581985000 )
Sechskantmutter 26,5
|
Galvanised Length: 8 cm Width-across: 46 mm |
|
Anchor plate 26.5 ( 3.4 kg | 581986000 )
Ankerplatte 26,5
|
Galvanised Length: 15 cm Width: 12 cm |
|
Pigtail anchor 26.5 ( 3.6 kg | 581900000 )
Wellenanker 26,5
|
Non-treated Length: 80 cm |
|
Rod connector 26.5 ( 1.4 kg | 581988000 )
Verbindungsmuffe 26,5
|
Non-treated Length: 15 cm Width-across: 46 mm |
|
Anchor holder 26.5 ( 0.43 kg | 581943000 )
Ankerhalter 26,5
|
Non-treated |
|
Clearance cone 26.5 ( 0.46 kg | 581867000 )
Freistellkonus 26,5
|
Black Grey Length: 20.6 cm Diameter: 7 cm Follow the directions in the "Fitting instructions"! |
|
Tie-rod wrench 20.0/26.5 ( 1.7 kg | 580593000 )
Ankerstabschlüssel 20,0/26,5
|
Galvanised Length: 37 cm Diameter: 8 cm |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
