Assembly

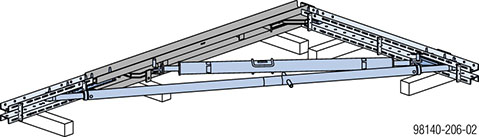

➤ Lay the components for one girderframe unit of the Supporting construction frame Variable 3.30m on hardwood blocking and connect them together.

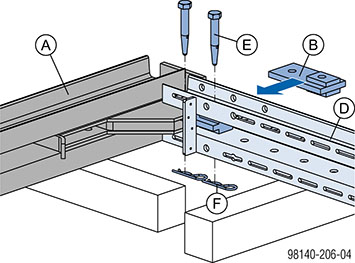

Connection details:
|
Bottom waling for supporting construction frame |
|
|
|
|
Top waling for supporting construction frame |
Supporting shoe |
|
|
|
A Waling WU14 for supporting construction frame |
|
B Tension plate |
|
C Supporting shoe |
|
D Multi-purpose waling WS10 Top50 2.00m |
|
E Connecting pin 10cm |
|
F Spring cotter 5mm |
|
G Spindle strut 12 3.00m |
.

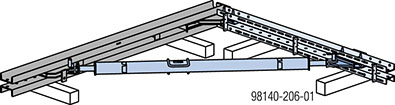

SC-frame type B: Vertical stacking
➤ Pin Multi-purpose waling WS 10 Top50 1.00m to waling for SC frame with formwork element connectors.
➤ Pin additional Spindle strut T7 into position.
Connection details:
|
Vertical stacking, spindle strut, top |
Spindle strut, bottom |
|
|
|
A Waling WU14 for supporting construction frame |
|
D Multi-purpose waling WS10 Top50 2.00m |
|
E Connecting pin 10cm |
|
F Spring cotter 5mm |
|
H Multi-purpose waling WS10 Top50 1.00m |
|
I Formwork element connector FF20/50 Z |
|
J Spindle strut T7 305/355cm |
.
