Transporting, stacking and storing
Doka stacking pallet 1.55x0.85m
Storage and transport devices for long items:
▪ durable
▪ stackable
Suitable transport appliances:
▪ crane
▪ pallet stacking truck
▪ forklift truck
The Bolt-on caster set B turns the stacking pallet into a fast and maneuverable transport trolley.
|
|
Follow the directions in the 'Bolt-on castor set B' Operating Instructions! |
|
Max. load-bearing capacity: 2420 lbs (1100 kg) Permitted imposed load: 12980 lbs (5900 kg) |
Loading capacity of the stacking pallet:
|
Doka floor props |
|
|
Eurex 20 eco 250, 300 und 350 |
40 units |
|
Eurex 20 eco 400 |
35 units |
|
Eurex 20 eco 450 und 550 |
30 units |
|
Eurex 30 eco 250 und 300 |
40 units |
|
Eurex 30 eco 350 |
35 units |
|
Eurex 30 eco 400 und 450 |
30 units |
|
|
NOTICE ▪ Multi-trip packaging items that each contain very different loads must be stacked with the heaviest ones at the bottom and the lightest ones at the top! ▪ The rating plate must be in place and clearly legible. |
.
Using Doka stacking pallets as storage units
Max. n° of boxes on top of one another
|
Outdoors (on the site) |
Indoors |
|---|---|
|
Floor gradient up to 3% |
Floor gradient up to 1% |
|
2 |
6 |
|
Do not stack empty pallets on top of one another! |
|
Note:
Use with Bolt-on caster set B:
Always apply the parking brake when the container is 'parked'.
When Doka stacking pallets are stacked, the bottom pallet must NOT be one with a bolt-on caster set mounted to it.
.
Using Doka stacking pallets as transport devices

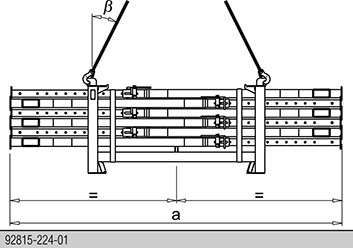

Lifting by crane
|
|
NOTICE ▪ Multi-trip packaging items may only be lifted one at a time. ▪ Use a suitable lifting chain ▪ Load the items centrically. ▪ Fasten the load to the stacking pallet so that it cannot slide or tip out. ▪ When lifting stacking pallets to which Bolt-on castor sets B have been attached, you must also follow the directions in these Operating Instructions! ▪ Spread-angle β max. 30°! |
a ... max. 14’-91/16" (4.5 m)
.
Shifting boxes with the forklift or pallet stacking truck
|
|
NOTICE ▪ Load the items centrically. ▪ Fasten the load to the stacking pallet so that it cannot slide or tip out. |
.
