Operating the system
|
|
NOTICE ➤ The type of attachment, by hook engagement or by looping, depends on the application (see the User Information booklet of the formwork system used). |
➤ Hook engagement: Engage both hook mouths at the attachment points.
Example: Dokamatic table

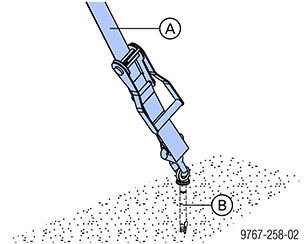

Example: Doka express anchor
|
A Lashing strap 5.00m |
|
B Doka express anchor 16x125mm |
➤ Looping: Loop the strap round the attachment point and engage the hook mouth in the triangle.

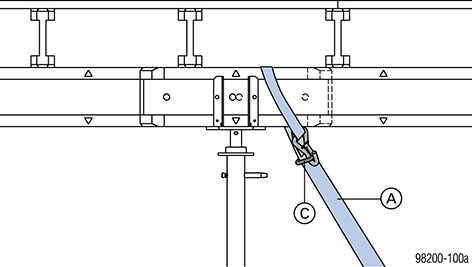

Example: Dokaflex
|
A Lashing strap 5.00m |
|
C Triangle of the lashing strap |
➤ Pull the belt tight by hand and keep it tight.
➤ Repeatedly ratchet the grip back and forth until the required tension is applied.
The belt must be wrapped at least 1.5 turns and no more than 3 full turns round the slotted shaft.
➤ Secure the tensioning element.
.
