Attributes of the panel connectors:
▪ tension-proof inter-panel connections
▪ have no loose parts which might get lost
▪ dirt-resistant and hard-wearing for site use
▪ easy to fix, with a formwork hammer
|
|
NOTICE ▪ Use a formwork hammer weighing max. 800 g. ▪ Do not oil or grease wedged connections. |

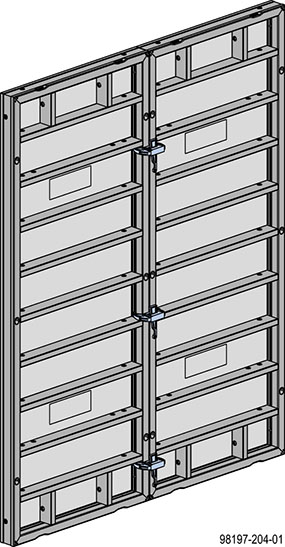

Panels upright:
|
Panel height |
Number of clamps |
|
1.50 m |
2 |
|
3.00 m |
3 |
|
3.30 m |
3 |
Panels on their sides:
|
Panel width |
Number of clamps |
|
0.30 - 0.60 m |
1 |
|
0.75 - 1.20 m |
2 |
Note:
▪ For details regarding extra inter-panel connections on outside corners and stop-ends (for increased tensile loads) see the section headed 'Inter-panel connections for increased tensile loads'.
▪ For details on the position of the ReForma quick acting clamps needed in vertical stacking, see the section headed 'Vertical stacking of panels'.
.
