Article list
[kg]
Article N°
Dokadek panel 1.22x2.44m ply ( 50.5 kg | 586501600 )
Dokadek panel 0.81x2.44m ply ( 40.4 kg | 586502600 )
Dokadek panel 1.22x1.22m ply ( 27.4 kg | 586566600 )
Dokadek panel 0.81x1.22m ply ( 22.2 kg | 586567600 )
Dokadek-Element ply
|
Galvanised Painted yellow |
|
Doka floor prop Eurex 30 top 250 ( 12.8 kg | 586092400 )
Length: 148 - 250 cm
Doka floor prop Eurex 30 top 300 ( 16.4 kg | 586093400 )
Length: 173 - 300 cm
Doka floor prop Eurex 30 top 350 ( 20.7 kg | 586094400 )
Length: 198 - 350 cm
Doka floor prop Eurex 30 top 400 ( 24.6 kg | 586095400 )
Length: 223 - 400 cm
Doka floor prop Eurex 30 top 450 ( 29.1 kg | 586119400 )
Length: 248 - 450 cm
Doka floor prop Eurex 30 top 550 ( 38.6 kg | 586129000 )
Length: 303 - 550 cm
Doka-Deckenstütze Eurex 30 top
|
Galvanised |
|
Doka floor prop Eurex 20 top 250 ( 12.7 kg | 586086400 )
Length: 148 - 250 cm
Doka floor prop Eurex 20 top 300 ( 14.3 kg | 586087400 )
Length: 173 - 300 cm
Doka floor prop Eurex 20 top 350 ( 17.4 kg | 586088400 )
Length: 198 - 350 cm
Doka floor prop Eurex 20 top 400 ( 21.6 kg | 586089400 )
Length: 223 - 400 cm
Doka floor prop Eurex 20 top 550 ( 32.3 kg | 586090400 )
Length: 298 - 550 cm
Doka floor prop Eurex 20 top 700 ( 48.0 kg | 586139000 )
Length: 383 - 700 cm
Doka-Deckenstütze Eurex 20 top
|
Galvanised |
|
Doka floor prop Eurex 30 eco 250 ( 12.8 kg | 586000000 )
Length: 148 - 250 cm
Doka floor prop Eurex 30 eco 300 ( 16.3 kg | 586001000 )
Length: 173 - 300 cm
Doka floor prop Eurex 30 eco 350 ( 20.7 kg | 586002000 )
Length: 198 - 350 cm
Doka floor prop Eurex 30 eco 400 ( 24.2 kg | 586003000 )
Length: 223 - 400 cm
Doka floor prop Eurex 30 eco 450 ( 28.5 kg | 586004000 )
Length: 248 - 450 cm
Doka-Deckenstütze Eurex 30 eco
|
Galvanised |
|
Doka floor prop Eurex 20 eco 250 ( 11.5 kg | 586270000 )
Length: 148 - 250 cm
Doka floor prop Eurex 20 eco 300 ( 14.0 kg | 586271000 )
Length: 173 - 300 cm
Doka floor prop Eurex 20 eco 350 ( 16.9 kg | 586272000 )
Length: 198 - 350 cm
Doka floor prop Eurex 20 eco 400 ( 20.5 kg | 586273000 )
Length: 223 - 400 cm
Doka floor prop Eurex 20 eco 450 ( 24.1 kg | 586275000 )
Length: 248 - 450 cm
Doka floor prop Eurex 20 eco 550 ( 32.0 kg | 586276000 )
Length: 298 - 550 cm
Doka-Deckenstütze Eurex 20 eco
|
Galvanised |
|
Doka floor prop Eurex 20 LW 300 ( 11.5 kg | 586876000 )
Length: 173 - 300 cm
Doka floor prop Eurex 20 LW 350 ( 13.9 kg | 586877000 )
Length: 198 - 350 cm
Doka-Deckenstütze Eurex 20 LW
|
Galvanised |
|
Removable folding tripod top ( 12.0 kg | 586155500 )
Stützbein top
|
Galvanised Height: 80 cm Delivery condition: folded closed |
|
Removable folding tripod ( 15.6 kg | 586155000 )
Stützbein
|
Galvanised Height: 80 cm Delivery condition: folded closed |
|
Removable folding tripod eco ( 9.4 kg | 586294000 )
Stützbein eco
|
Galvanised Height: 67.5 cm Delivery condition: folded closed |
|
Removable folding tripod 1.20m ( 20.7 kg | 586145000 )
Stützbein 1,20m
|
Galvanised Height: 120 cm Delivery condition: folded closed |
|
Dokadek wall clamp ( 4.5 kg | 183063000 )
Dokadek-Wandhalter
|
Dark brown Length: 138 cm |
|
Dokadek support head ( 2.4 kg | 586506000 )
Dokadek-Auflagerkopf
|
Galvanised Height: 33 cm |
|
Dokadek corner head ( 5.6 kg | 586539000 )
Dokadek-Eckkopf
|
Galvanised Height: 54 cm |
|
Dokadek wall head ( 4.3 kg | 586536000 )
Dokadek-Wandkopf
|
Galvanised Height: 56 cm |
|
Dokadek edge head 18mm ( 4.0 kg | 586544000 )
Dokadek edge head 21mm ( 3.9 kg | 586545000 )
Dokadek edge head 27mm ( 3.8 kg | 586546000 )
Dokadek-Randkopf
|
Galvanised Height: 36 cm |
|
Dokadek cross head ( 2.6 kg | 586543000 )
Dokadek-Kreuzkopf
|
Galvanised Height: 32 cm |
|
Spring locked connecting pin 16mm ( 0.25 kg | 582528000 )
Federbolzen 16mm
|
Galvanised Length: 15 cm |
|
Floor prop spring clamp ( 0.08 kg | 586169000 )
Federklammer Deckenstütze
|
Galvanised |
|
Dokadek infill beam 2.44m 18mm ( 16.9 kg | 586509000 )
Dokadek infill beam 1.22m 18mm ( 8.7 kg | 586510000 )
Dokadek infill beam 0.81m 18mm ( 6.0 kg | 586511000 )
Dokadek infill beam 2.44m 21mm ( 16.6 kg | 586512000 )
Dokadek infill beam 1.22m 21mm ( 8.5 kg | 586513000 )
Dokadek infill beam 0.81m 21mm ( 6.0 kg | 586514000 )
Dokadek infill beam 2.44m 27mm ( 16.7 kg | 586515000 )
Dokadek infill beam 1.22m 27mm ( 8.6 kg | 586516000 )
Dokadek infill beam 0.81m 27mm ( 5.7 kg | 586517000 )
Dokadek-Ausgleichsträger
|
Galvanised |
|
Dokadek infill-beam shoe 18mm ( 1.7 kg | 586568000 )
Dokadek infill-beam shoe 21mm ( 1.8 kg | 586569000 )
Dokadek-Ausgleichsträgerschuh
|
Galvanised Height: 20 cm |
|
Dokadek suspension clamp H20 ( 1.6 kg | 586518000 )
Dokadek-Einhängebügel H20
|
Galvanised Width: 15 cm Height: 35 cm |
|
Dokadek timber beam seat H20 ( 5.8 kg | 586550000 )
Dokadek-Trägeraufnahme H20
|
Galvanised Height: 35 cm |
|
Dokadek handrail-post shoe short ( 4.3 kg | 586519000 )
Dokadek-Stirngeländerschuh
|
Galvanised Length: 23 cm Height: 56 cm |
|
Dokadek handrail-post shoe short 1.20m ( 3.0 kg | 586598000 )
Dokadek-Stirngeländerschuh 1,20m
|
Galvanised Length: 23 cm Height: 27 cm |
|
Dokadek handrail-post shoe long ( 10.1 kg | 586520000 )
Dokadek-Längsgeländerschuh
|
Galvanised Length: 125 cm Height: 66 cm |
|
Dokadek handrail-post shoe long 1.20m ( 5.7 kg | 586560000 )
Dokadek-Längsgeländerschuh 1,20m
|
Galvanised Length: 47 cm Height: 37 cm |
|
Lashing strap 5.00m ( 2.8 kg | 586018000 )
Zurrgurt 5,00m
|
Yellow |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Gerüstrohr 48,3mm 0,50m
|
Galvanised |
|
Bracing frame Eurex 1.22m ( 16.0 kg | 586557000 )
Bracing frame Eurex 0.81m ( 14.5 kg | 586558000 )
Aufstellrahmen
|
Galvanised Height: 111 cm |
|
Diagonal cross 9.175 ( 6.1 kg | 582334000 )
Diagonal cross 12.100 ( 4.6 kg | 582610000 )
Diagonal cross 18.200 ( 7.8 kg | 582624000 )
Diagonalkreuz
|
Galvanised Delivery condition: folded closed |
|
Bracing clamp B ( 1.4 kg | 586195000 )
Verschwertungsklammer B
|
Painted blue Length: 36 cm |
|
Brace stirrup 8 ( 2.7 kg | 582751000 )
Spannbügel 8
|
Galvanised Width: 19 cm Height: 46 cm Width-across: 30 mm |
|
Safety plate for brace stirrup 8 ( 0.05 kg | 582753000 )
Sicherungsblech für Spannbügel 8
|
Red Length: 23 cm |
|
Dokadek plumbing strut connector ( 4.1 kg | 586537000 )
Dokadek-Justierstützenanschluss
|
Galvanised Length: 28.5 cm Width: 26 cm Height: 16.6 cm |
|
Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Justierstütze 340 IB
|
Galvanised Length: 190.8 - 341.8 cm |
|
Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Justierstütze 540 IB
|
Galvanised Length: 310.5 - 549.2 cm |
|
Dokadek assembling tool B ( 3.1 kg | 586540000 )
Dokadek-Montagestange B
|
Aluminium Length: 215 - 387 cm |
|
Dokadek assembling tool extension 2.00m ( 1.5 kg | 586538000 )
Dokadek-Montagestangenverlängerung 2,00m
|
Aluminium |
|
Dokadek suspension tool ( 3.1 kg | 586562000 )
Dokadek-Einhängestange
|
Aluminium Head part yellow Length: 215 - 386 cm |
|
Dokadek stripping tool ( 5.0 kg | 586541000 )
Dokadek-Ausschalwerkzeug
|
Powder-coated yellow Length: 212 cm |
|
Dokadek stripping tool extension 1.50m ( 3.1 kg | 586559000 )
Dokadek-Ausschalwerkzeugverlängerung 1,50m
|
Powder-coated yellow |
|
DekDrive ( 57.9 kg | 586526000 )
DekDrive
|
Galvanised Length: 145 cm Width: 88 cm Height: 108 cm Delivery condition: folded closed |
|
DekLift 4.50m ( 368.0 kg | 586553000 )
DekLift 4,50m
|
Galvanised Follow the directions in the "Operating Instructions"! |
|
Platform stairway 0.97m ( 23.5 kg | 586555000 )
Podesttreppe 0,97m
|
Aluminium Width: 121 cm Pay attention to the national, technical safety regulations! |
|
Wheel-around scaffold DF ( 44.0 kg | 586157000 )
Mobilgerüst DF
|
Aluminium Length: 185 cm Width: 80 cm Height: 255 cm Delivery condition: separate parts |
|
Wheel-around scaffold DF accessory set ( 13.3 kg | 586164000 )
Zubehörset Mobilgerüst DF
|
Aluminium Timber parts varnished yellow Length: 189 cm |
|
Dokadek system beam H20 eco P 1.10m ( 5.8 kg | 189959000 )
Dokadek-Systemträger H20 eco P 1,10m
|
Varnished yellow |
|
Doka beam H20 eco P 1.10m ( 5.8 kg | 189958000 )
Doka-Träger H20 eco P 1,10m
|
Varnished yellow |
|
Multi-trip packaging
Dokadek panel pallet 1.22x2.44m ( 75.0 kg | 586523000 )
Dokadek-Elementpalette 1,22x2,44m
|
Galvanised Height: 26 cm |
|
Dokadek panel pallet 0.81x2.44m ( 66.0 kg | 586524000 )
Dokadek-Elementpalette 0,81x2,44m
|
Galvanised Height: 26 cm |
|
Dokadek supp. timber 1.73m (HT) ( 5.7 kg | 176179000 )
Dokadek-Unterlagsholz 1,73m (HT)
|
Width: 18 cm Height: 11.8 cm |
|

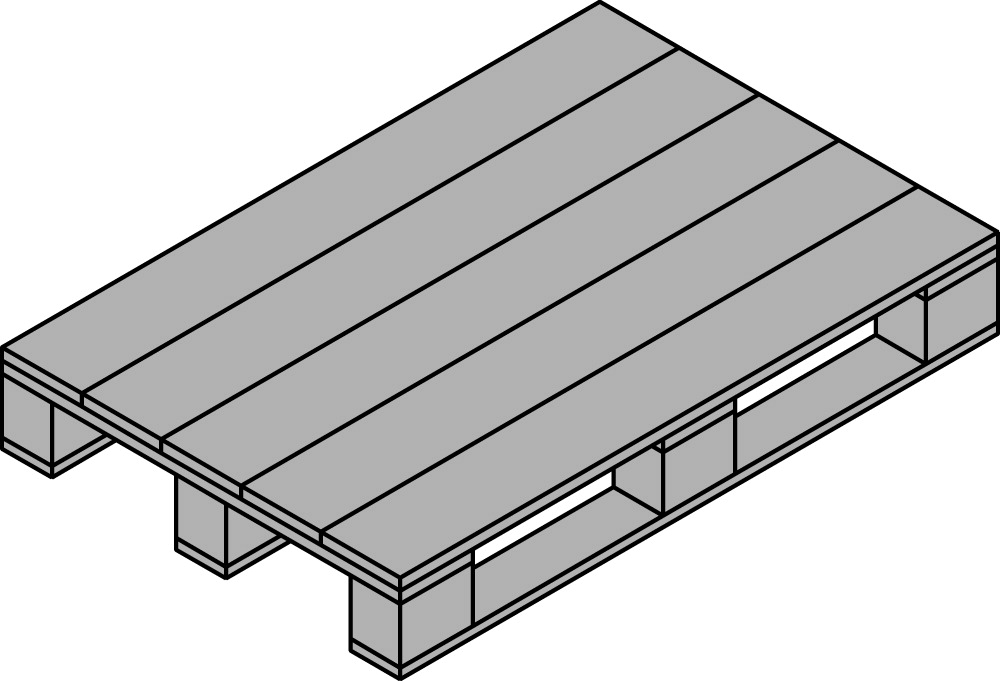

Wooden pallet 1.20x0.80m (HT) ( 26.5 kg | 176125000 )
Holzpalette 1,20x0,80m (HT)
|
Height: 17.6 cm |
|

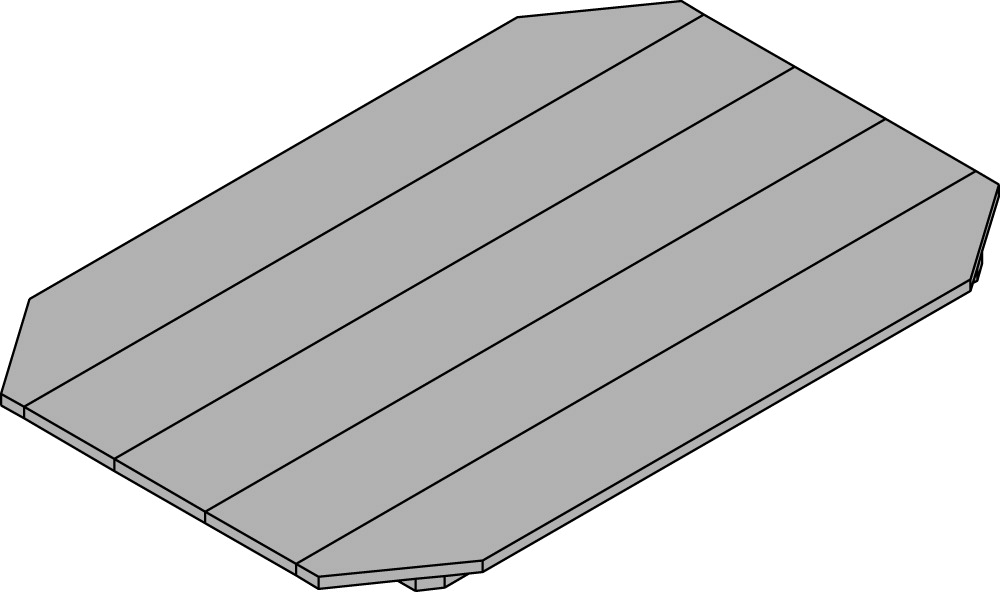

Crate cover 1.20x0.80m (HT) ( 10.5 kg | 176124000 )
Kistendeckel 1,20x0,80m (HT)
|
Height: 3.6 cm |
|
Attachable wheelset ( 27.3 kg | 586525000 )
Aufsteck-Radsatz
|
Galvanised |
|
Dokadek infill beam pallet ( 62.0 kg | 586528000 )
Dokadek-Ausgleichsträgerpalette
|
Galvanised Length: 119 cm Width: 79 cm Height: 81 cm |
|

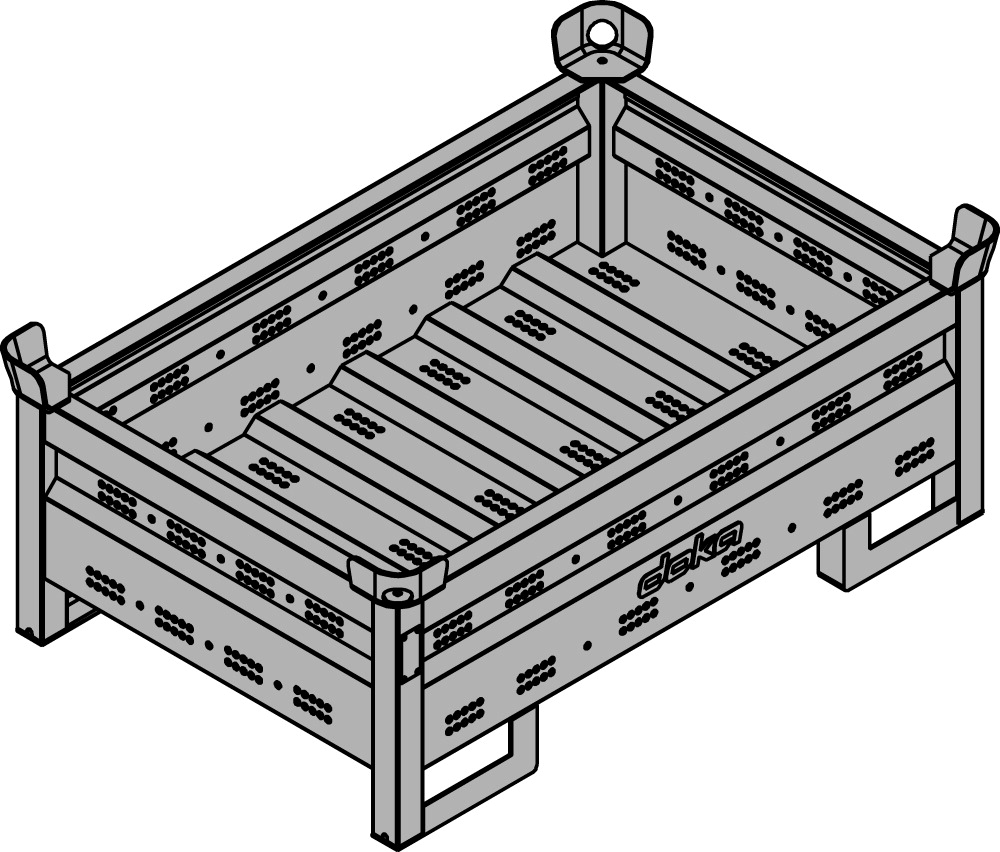

Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
