Lubeca is a formwork technology company that specialises in the provision of high performing self-climbing high-rise formwork solutions. Lubeca helps its clients to build tall, smart and safe by customizing formwork designs and solutions to fit individual building’s requirements.
Lubeca offers the patented high-performing Lubeca Jumpform system to build concrete cores for high-rise building projects in an efficient, fast and safe approach.
With experts in Melbourne, Dubai and Mumbai, Lubeca has an international reach. The Lubeca Jumpform has a proven track record in various high-rise projects throughout the Middle East and Asia and the Pacific.
Major projects have been successfully delivered in the UAE, India, Singapore and Australia where it is the system of choice for international construction companies.
As a company of the Doka Group, Lubeca can offer additional services by relying on the innovative formwork expertise of Doka worldwide.
Jump smart. Jump safe. Jump Lubeca.
The powerful hydraulic rams secure an efficient use of cranage as the platform can also transport high payloads, including equipment containers and concrete placing booms, during climbing. The top deck is free of jacking masts and other mechanical obstacles, which protects all operational equipment from concrete spills and possibility of crane damage.
The Lubeca Jumpform is a modular formwork system for highrise cores. The entire platform is lifted hydraulically in only a few operational steps at the push of a button. For the repositioning procedure, long stroke heavy duty hydraulic rams are used, which allow for the system to climb from floor to floor in a continuous process to achieve fast progress.

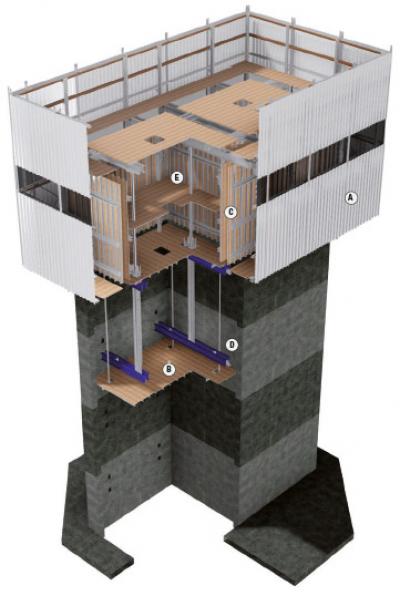

(A) A fully clad and enclosed environment protects workers from the nature elements
(B) Secure trailing platforms allow access for trades such as lift installers and can be used as a secondary means of entry and egress
(C) Slim-line shutters increase work area access
(D) Jacking and shear-key beams
(E) Safe working platforms ensure access for all operations

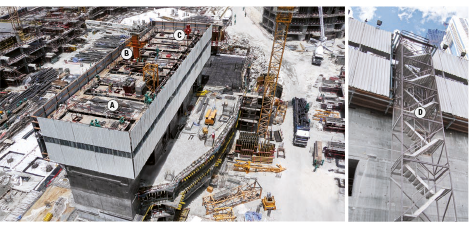

(A) The powerful hydraulic rams secure efficient use of craneage as the top platforms can support high payloads during operation

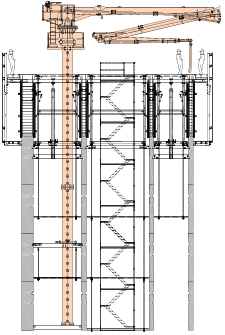

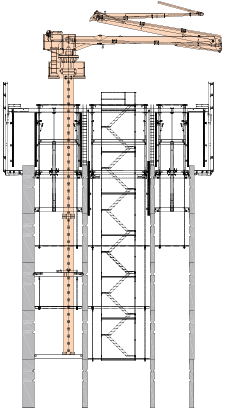

(B) Construction workflow is optimised by integrating concrete placing booms that can be climbed with and by the system
(C) Improved site logistics made possible by openings in the top deck for equipment-handling or for installation of precast staircases
(D) Safe and quick vertical access by using hanging stairtower
Our system incorporates a unique three-way adjustment system for its wallform panels that assures greater accuracy of formwork adjustment.

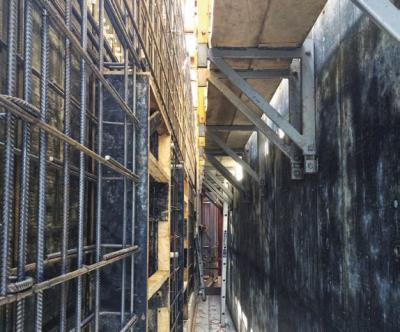

Rolling or lowered shutters allow a parallel access for placement of steel reinforcement, penetrations and built-in items to further increase building efficiency.
