Form-ties and suspension cones

Safe tying and anchoring technology for all formwork tasks

Dependable form-ties and safe suspension points are crucial for efficient and safe usage of any formwork. For both wall formwork, single-sided formwork and climbing formwork, a complete range of field-proven form-tie solutions and suspension points is available.

DownloadsVideos

Economical, down to the last detail

by being easy to mount and of high manufacturing quality

  • rapid pouring is possible thanks to the high load capacity of Doka tie-rods
  • Doka's complete range of accessories – with e.g. distance pieces, jacket tubes and anchoring cones – avoids extra procurement work
  • on single-sided formwork, the concrete pressure is safely transferred into the concrete base slab by Doka stop-anchors and Doka pigtail anchors

Safe suspension points

providing a dependable link between the structure and formwork

  • for safe working on tall structures
  • on work and pro­tection platforms such as the Folding platform K
  • on climbing and automatic climbing formwork
  • on dam formwork

References

Anchoring technology for wall formwork

Efficient with Doka

When forming walls, anchoring makes up a large portion of the labour costs. This is where Doka tie rod systems pay for themselves. They have a long lifespan, are easily assembled and resistant to soiling. As a result, you work faster and safer and save money in the process.

 Doka tie rod system

Safely anchoring with just two system components

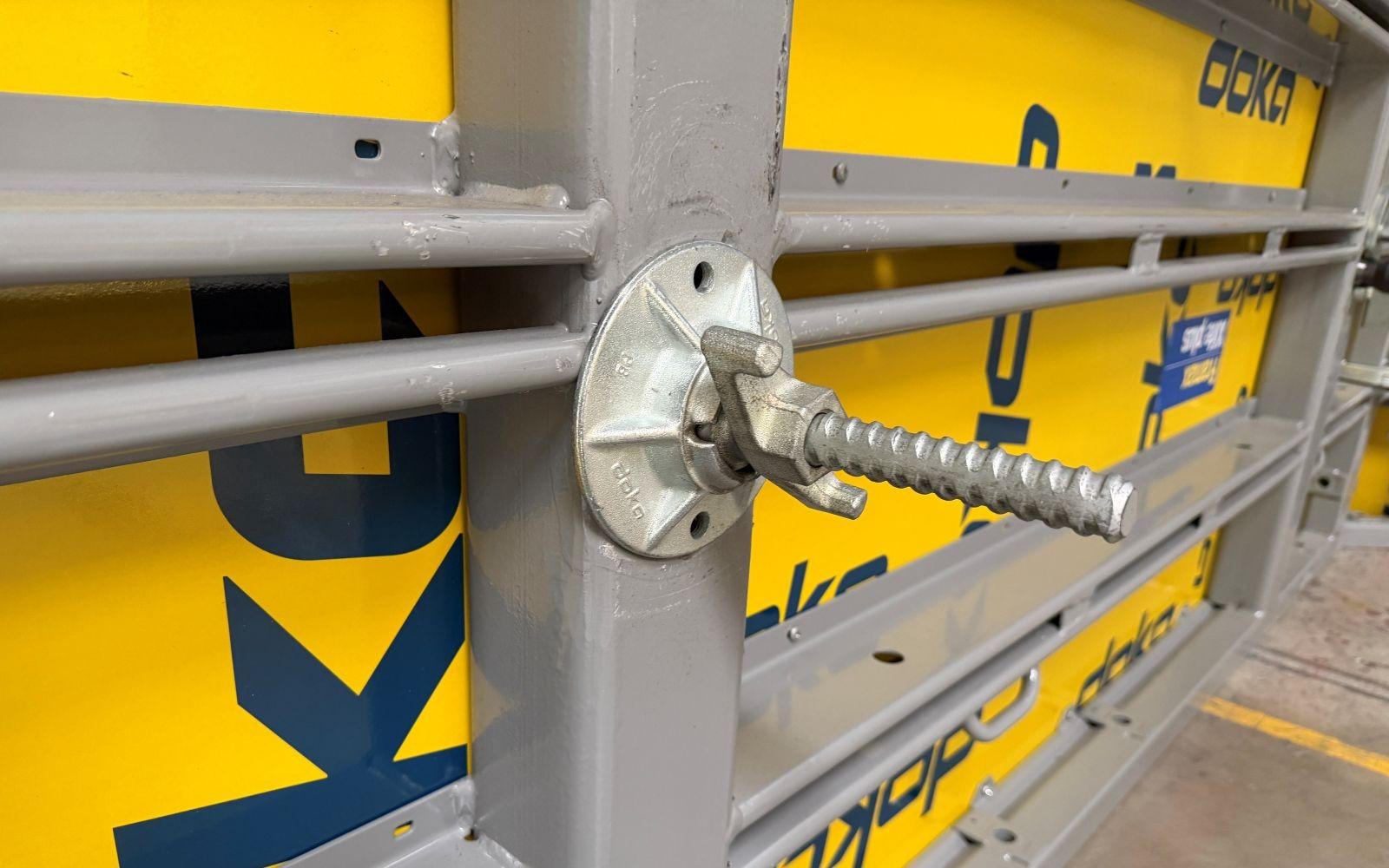

With Doka's super plate you can fix and release any anchor point very quickly using the only tool needed, a hammer. Doka tie rods are made of a special steel alloy and therefore have high tensile strength. A self-cleaning thread ensures rapid fastening, regardless of site conditions.

Doka's super plate

Anchoring for single-sided formwork

single-sided formwork

Keeping single-sided formwork firmly in its place

With single-sided formwork, high concrete pressures must be transferred into the concrete base slab reliably. Doka supporting construction frames combined with Doka stop anchors and Doka pigtail anchors safely absorb these forces.

Anchoring with stop anchors

Anchoring with stop anchors

Depending on load, the Stop anchor 15.0 or Stop anchor 20.0 can be used for anchoring.

Anchoring with pigtail anchors

Anchoring with pigtail anchors

Depending on load, the She-bolt 15.0 is used in combination with Pigtail anchor 15.0 or She-bolt 20.0 with Pigtail anchor 20.0.

Reliable solutions for tight anchor points

Form-tie points are only watertight if there is good bonding between the concrete and the jacket tubes or anchoring components left in the concrete. Doka supplies anchoring components that create an outstanding bond with the concrete.

Design variants - Tie rod system 15.0

Water stop G 15.0

Water stop G 15.0

Water stop connector 15.0

Water stop connector 15.0

Water stop 15.0

Water stop 15.0

Fibre concrete tube 22mm

Fibre concrete tube 22mm
Water stop connector 15.0Fibre concrete tube 22mmWater stop G 15.0Water stop 15.0 or Water stop S 15.0 (sulphate-resistant)Distance piecePlastic tube 22mmExpendable Tie rod 15.0 with 2 anchor cones
water-impermeable
fire-resistant
sound-insulating
gas-impermeable
radiation-proof

Safe suspension for Doka climbing systems and Doka Safety Systems

Universal climbing cone

The Universal climbing cone is suitable for all Doka climbing and dam formwork. Together with the stop anchor and the Cone screw B7cm designed for high tensile forces, it creates a solid connection between the previously poured casting section and the formwork.

Safe suspension for all Doka climbing and automatic climbing systems and dam formwork

Doka offers reliable system solutions for working safely on tall structures. In all systems, the sturdily dimensioned universal climbing cones ensure the solid connection between structure and formwork.

Universal-Kletterkonen
Arbeits- und Schutzgerüst

Working and protection platforms assembled quickly and safely

Various economical suspension variants are available for attaching Doka folding platforms and Doka bracket platforms. You benefit: work progresses rapidly and you can be confident in terms of safety.
