Formwork beams

The tried-and-tested components for many Doka formwork systems

Doka formwork beams are the basis for many Doka formwork systems and can be used universally. Hundreds of thousands of these carefully manufactured beams do sterling service on countless construction sites every day.

Downloads

Composite formwork beam I tec 20

The high-performance beam that saves on quantities

Composite formwork beam I tec 20

Composite formwork beam I tec 20

High load capacity

achieved by innovative composite technology
  • permitted bending moment M = 9.0 kNm
  • permitted shear force Q = 20.0 kN
  • rigidity E x I = 640 kNm²
  • weight = 5.6 kg/lin.m

Save on equipment

thanks to optimised load capacity
  • up to one-third fewer floor props on timber-beam floor formwork Dokaflex 30 tec
  • up to 30 percent fewer form-tie points in wall areas Timberbeam formwork FF100 tec and Top 100 tec
  • 50 percent fewer primary beams in the superstructures of fully loaded Load-bearing tower Staxo 40

Technical specifications:

Moment (M): 9 kNm
Shear force (Q): 20 kN
Rigidity (E x I): 640 kNm²
Weight: 5.6 kg/lfm
Certificate: Z-9.1-773

More repeat uses

thanks to all-round protection
  • extra-long lifespan, thanks to the proven 'top' beam-end reinforcement
  • reduced close-out costs, thanks to the I tec sheet that protects the whole length of the flanges

Doka beam H20 pro

The high-quality formwork beam in solid-web design

Doka beam H20 pro

Protected, resistant, long-lasting – The Doka beam H20 pro with its cap-sealed ends is a high-quality, solid-web formwork beam for use in wall and floorslab formwork. Its moulded-on polyurethane beam-end caps extend its usable lifespan and make it an everyday helper on any jobsite.

  • Reduced damage at the end of the beam thanks to high-grade polyurethane end reinforcement
  • High-quality beam flanges thanks to mechanical stress-grading and proof-testing
  • Easy to handle because of very low weight
  • Fast, safe formwork set-up with markings on the beam flanges

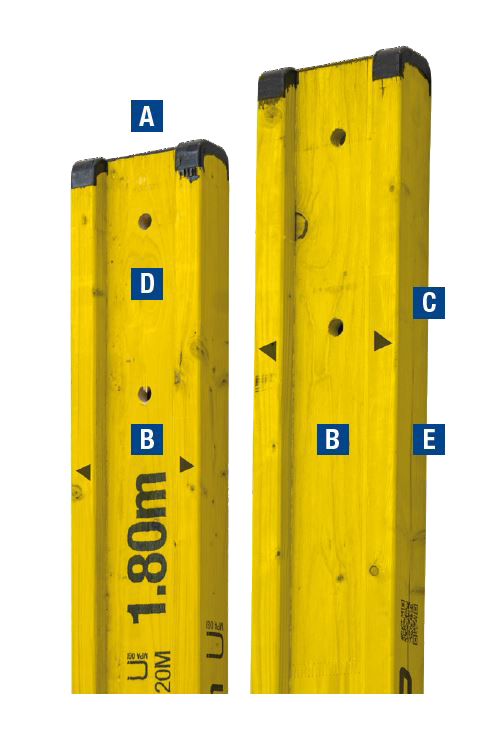

(A) Pro beam-end reinforcement
(B) Beam web in N version1
(C) Beams marked in 50-cm increment-grid
(D) 2 system holes at each beam end
(E) Printing on broadside of flange and on web | Optional: custom printing

Technical data

Moment (M): 5 kNm
Shear force (Q): 11 kN
Rigidity (E x J): 450 kNm2
Weight: 4.4 kg/lin.m
Approval: EN 13377

Timber formwork beam H20 top

Up to triple the lifespan, thanks to built-in shock absorber at the beam end

Timber formwork beam H20 top
  • Reduced damage at the end of the beam
  • Effective protection against moisture and UV radiation
    since ends are sealed around web.
  • Fast, safe formwork set-up
    with markings on the beam chords

(A) Top-beam-end reinforcement
(B) Web in versions N or P
(C) Beams marked in 50-cm increment-grid
(D) 2 system holes at each beam end
(E) Notch for chalk line
(F) Labeling belt width side; Optional: Customising possible

Technical specifications:

Moment (M): 5 kNm
Shear force (Q): 11 kN
Rigidity (E x J): 450 kNm²
Weight: 4.7 kg/lfm (N) | 5.3 kg/lfm (P)
Certificate: EN 13377

Timber formwork beam H20 eco

The tried-and-tested formwork beam with a solid-web design

Timber formwork beam H20 eco
  • High-quality beam chords
    thanks to mechanical stress-grading
  • Less damage to beam-ends
    owing to bevelled flange-ends and beam rivets
  • Easy to handle
    because of its very low weight

(A) End-reinforcement with bevelled beam-ends and extra plastic rivet
(B) Web in versions N or P
(C) Beams marked in 50-cm increment-grid
(D) 2 system holes at each beam end
(E) Labelling belt width side; Optional: Customising possible

Technical specifications:

Moment (M): 5 kNm
Shear force (Q): 11 kN
Rigidity (E x J): 450 kNm²
Weight: 4.7 kg/lfm (N) | 5.3 kg/lfm (P)
Certificate: EN 13377
