Monolithic formwork MFE MivanForm

Casting wall and floor in a single step with a lightweight formwork system

Doka Monolithic is a high-performing formwork system for casting walls and floors quickly in just one operation. Its lightweight aluminium panels and optimised forming sequence deliver greater efficiency on the site. Doka Monolithic is ideally suited for many different types of structures, including single our double storey family homes, housing developments and high-rise buildings. All components such as walls, columns, shafts, floors, beams, stairways and balconies as well as openings for windows and doors can be monolithically constructed with the system.
Download: Leaflet

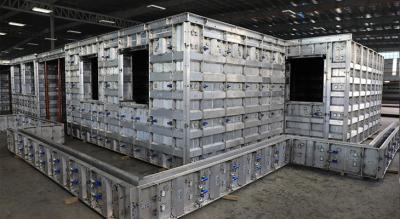

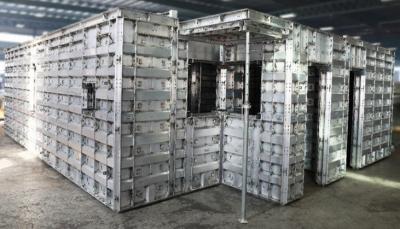

Special formwork designs go through a test set-up prior to delivery to ensure each order is complete and ready for use when the system arrives on-site.
Our experienced formwork support engineers will train and guide our customer’s local construction teams to use Doka Monolithic with efficiency and safety as a priority.

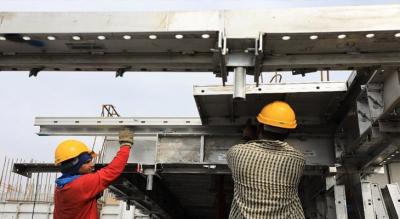

Effortless repositioning thanks to low panel weight and built-in grips
The formwork can be assembled with non skilled labours with simple training and no special tools are required
High accurate buildings dimensions and high quality finish leads to a fast construction time and minimum costs for remedial works
Typical cycle times of 1 floor every 4-5 days or 1 single house a day can be simple achieved

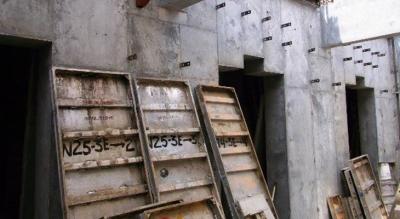

Always correctly positioned formwork panels thanks to clear identification
Formwork systems are designed for maximum use of standard panel types, but special panels can be manufactured for all types of buildings and structures, and can include all architectural features for construction speed, efficiency and finish quality.
Aluminium formwork mores through the construction project fast and efficiently and substantially reduces on-site rubbish and waste.
A wide range of safety systems and accessories are available for integration into the complete solution.
Ideally suited for large housing developments and high-rise projects with layouts that are fixed
MFE MivanForm is designed for high reusability to maximise your formwork investment returns. Thanks to the efficiency of our design and simplicity of our methodology, MFE MivanForm panels can be reused and redesigned for multiple projects.

As MFE MivanForm is optimally adapted to the structure-improvisations are no longer necessary, saving time and money.
Left Right
System features and functionality
MFE MivanForm panels
Our designers will maximise the use of MFE MivanForm standard panels within the design for maximum formwork reusability
With variable standard sizes, formwork panels are easily adapted to the structure
Panels can also be manufactured to project-specific requirements and in various shapes and dimensions required.
Casting wall and floor in a single operation

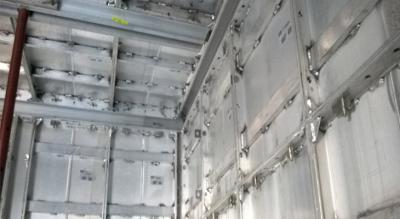

MFE MivanForm is a monolithic formwork system for forming, casting and stripping wall and floor panels in a single operation. All structural components can be integrated into a monolithic construction process. The complete system can be assembled and repositioned by hand thanks to the use of lightweight aluminium panels.
Easy connection and form-tie components
MFE MivanForm formwork panels are connected with simple Pin & Wedge fixings, or optional Fast Lock panel mounted fixings and require no special tools, just a hammer.

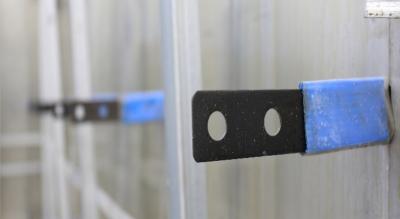

The panels are anchored quickly and easily with flat wall ties that also serve to define and control wall thickness. The flat ties are provided with plastic sleeve coverings to allow fast and easy removal of the ties and making the ties fully reusable through the project.

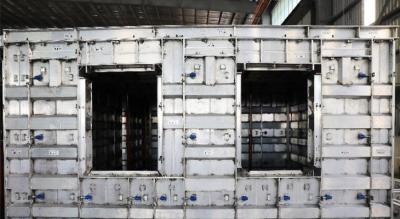

Windows, doors and stairways are built into the system
MFE MivanForm is able to form all of the building components including walls, columns, shafts, floors, beams, window and doors openings are cast with the system.

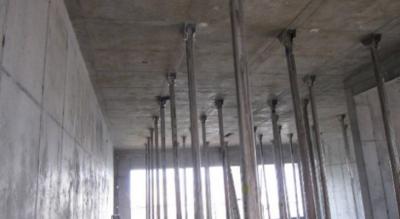

MFE MivanForm is designed for easy formwork stripping processes with vertical formwork able to be removed after 12 hours, or concrete strength of 2 N/mm² achieved, and horizontal formwork removed after 36 hours, or achieving a concrete strength of 10 N/mm². The specially designed MFE MivanForm prop heads allow slab formwork to be removed without moving or disturbing the props, for speed and efficiency so no back-propping is required.

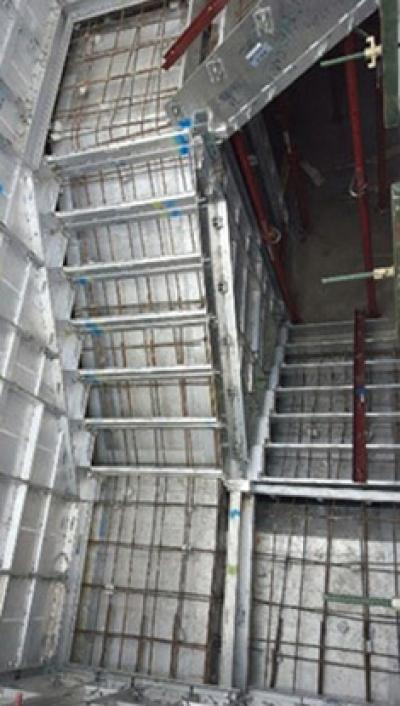

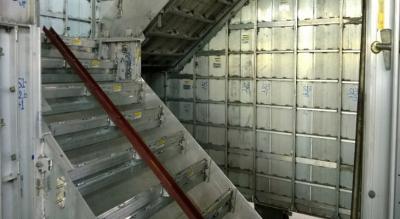

Stairways can also be integrated into a monolithic casting, eliminating the need for secondary forming or stairs, or pre-cast stairs.
Utilisation

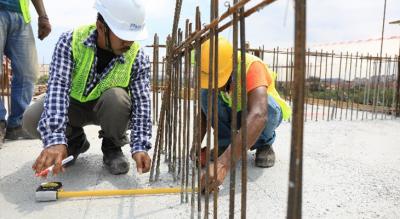

Prepare and mark out the slab ready for rebar and mechanical and electrical installation

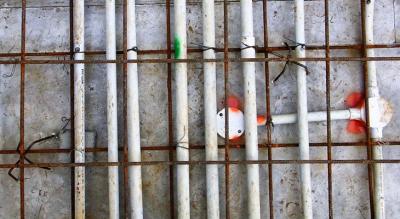

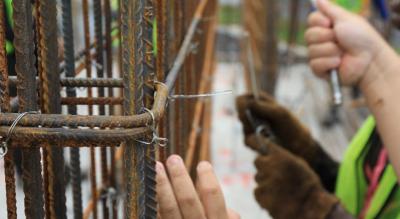

Fix rebar and install mechanical and electrical components
Erect and align formwork

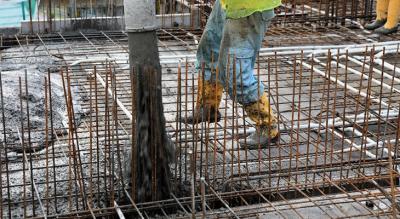

Pour concrete
Strike formwork and move to next unit

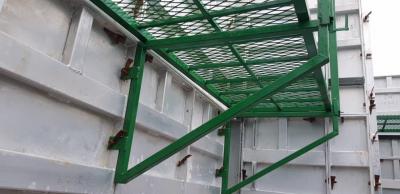

Safety Guardrail Systems
Guardrail systems are easily assembled with the MFE MivanForm handrail post and protect the crew during the casting process. MFE MivanForm brackets can be used to assemble working platforms for safely forming and stripping additional each level of the building.
