Formwork

The Pro­tection screen Xclimb 60 lets you carry out construction work in the top building-levels of high-rise projects in great safety, and protected from the weather. Pro­tection screen Xclimb 60 is a hydraulically climbed system that can also be quickly repositioned by crane if sufficient craneage is available. Because it is structure-guided at all times, it can be operated even in windy conditions. The system comes in several versions, giving you the ideal solution for every requirement.

With its rugged steel frames, Staxo 100 is designed for large shoring-heights and high loads. It unites high load capacity and safety, in every situation.

With its practical element size-grid, rapid stackability and slippage-free inter-element connections, FF20 is the right choice for many projects where stricter requirements are made regarding the concrete finish.

Climbing formwork MF240 permits controlled, regular working cycles on all structures. The system is simple to operate, handles wall inclinations of up to 15 degrees and can be dimensioned to many different requirements over a wide range of applications.

'Supporting construction frames' enable the concreting forces to be safely transferred by way of diagonal anchors in cases where it is not possible to tie wall-formwork elements through the concrete.

Circular formwork H20 is a practical circular formwork system that delivers smooth, curved walls from radii of 3.50 m upward – steplessly.

This system is the universal safety solution for all edge pro­tection needs. It fits in ideally with Doka systems – be they wall or floor-slab formwork – for safeguarding slab-edges or as fall-arrest barriers on the structure shell.

Doka panel struts and plumbing struts windproof the formwork and make it easier to plumb and align. The modular combination of plumbing struts, prop heads and prop shoes makes for optimum usability with Doka formwork systems.

With its low weight, Alu-Framax Xlife brings all the benefits of Framax Xlife framed formwork to craneless jobsites as well – also seamlessly combined with Framax Xlife, of course.

Dokaflex is the timber-beam floor formwork for all kinds of layouts. Meeting individual requirements regarding the concrete finish is no problem, as any type of form-facing can be chosen. Two Dokaflex design versions are available for use to meet your project requirements.

Doka 3-SO three-ply sheets provide the basis for many Doka formwork systems and have a wide range of uses.

Doka multi-ply formwork sheets are used in very many Doka formwork systems. The broad spectrum – ranging from DokaPly to the Xlife sheet – allows Doka to offer ideal solutions for many different requirements and cater for anything from infill zones to fair-faced concrete.

Automatic climbing formwork Xclimb 60 is a hydraulically climbed system that can also be quickly raised by crane if sufficient craneage is available. Because it is guided on the structure at all times, the system can still be climbed even in windy conditions.

With Doka shifting devices, slab-forming operations can be accomplished even faster. By making the crane unnecessary for both the horizontal and vertical repositioning operations, they simplify and optimise the logistics for the entire site, by doing away with unproductive (meaning costly) waiting times. The craneage saved here is then available for use elsewhere. This accelerates the entire site workflow, saving on labour costs and boosting the contractors' competitiveness.

The Working scaffold Modul is the ideal add-on to Doka wall systems: with this rentable modular platform system, reinforcement operations can be carried out safely and quickly. It is equally suitable for use as a stair tower or a mobile scaffold tower. To speed up the construction workflow still further, the platform units can be repositioned by crane.

Dokaflex tables are easy and practical to set up and can be shifted and adapted very quickly. This makes them a cost-effective and efficient way of carrying out large-area slab projects. Dokaflex tables can of course be combined with Dokamatic tables.

Doka offers release-agents for both smooth and absorbent formwork surfaces. They have an excellent separating effect and make for attractive concrete surfaces.

Multi-trip packaging items such as containers, stacking pallets and skeleton transport boxes keep everything neat and tidy on the site, minimise the time wasted searching for parts and streamline the storage and transport of system components, small items and accessories. The stacking pallets simplify the storage and handling of floor props, folding tripods, formwork beams and sheets. The skeleton transport box is the tidy way of storing and handling lighter accessories (max. load 700 kg). For heavier accessories, there is plenty of space for these in the Multi-trip transport box (max. load 1500 kg).

Dependable form-ties and safe suspension points are crucial for efficient and safe usage of any formwork. For both wall formwork, single-sided formwork and climbing formwork, a complete range of field-proven form-tie solutions and suspension points is available.

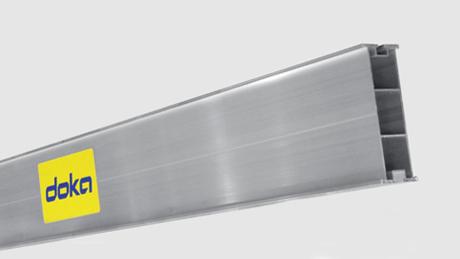

The innovative cross-section of the Alu box beam gives it a high load rating, permitting optimised equipment usage on the site. The integrated nailing strip and the end-to-end fixing slot enable the beam to be re-used intensively, and give it a long lifespan.

Facade formwork Top 50 speeds up work on pre-cast facades, both with integrated and set-back CIP columns.

Dokaset is a fast, cost-saving wall formwork system for the building construction segment. All operations such as attaching the lifting chain and placing the form-ties can be carried out very quickly and easily from ground level. Fully pre-mounted working platforms, the Xlife formwork sheet and wide tie spacing are among the practical features that set this all-in-one system apart.

Complicated column cross-sections, large column heights, many formwork re-use cycles, tough specifications regarding the concrete finish – a made-to-measure Column formwork Top 50 can handle them all economically.

Exactly round columns, in superlative fair-faced concrete quality, can be achieved using Column formwork RS.

For situations where large numbers of square and rectangular columns, with variable cross-sections, need to be formed cost-effectively and on schedule.

Frami Xlife universal panels are ideal for forming column cross-sections by hand or by crane.

The pre-assembled standard elements of Doka timber-beam formwork FF100 tec combine the advantages of timber-beam formwork with the grid-related advantages of a framed formwork system. Their very high load-bearing capacity offers a new degree of freedom when it comes to fulfilling architectural specifications in a cost-effective way. FF100 tec is suitable for fair-faced concrete categories SB1 to SB4, as defined in the DBV Code of Practice.

Based on the heavy-duty Beam I tec 20, the new Large-area formwork Top 100 tec system is the ideal solution for situations requiring absolute dimensional accuracy, despite high concrete pressures and widely spaced form-ties. The shape, size, tie-hole pattern and form-facing of the elements can now be adapted better than ever to suit any requirement.

The lightweight Frami eco formwork, with its sturdy powder-coated steel frame, is ideal for fast and economical forming, with or without a crane.

Dokadek 20, the beam-less hand-set formwork with coated frame and integrated plate supports ergonomic forming. The system is designed for floors up to 25 cm thick and floor heights up to 3.30 m.

Dokaflex 30 tec is a hand-set formwork system for floor-slabs that scores for its low costs-per-use. Used as a primary, the high-load I tec 20 formwork beam allows the props to be spaced much further apart. As less equipment is used for the same area of formwork, the system takes 15 percent less time to set up, and the equipment and logistics costs are also lower.

The shaft platform plus shaft formwork are quick and easy to reposition, in just one crane cycle.

The Guided climbing formwork Xclimb 60 is a system that is guided on vertical profiles fixed to the structure, even during repositioning. The entire climbing unit is safely and easily repositioned in a single crane cycle, even during high winds.

Dam formwork is used for forming one-sided construction projects, such as dams, barrages, river power stations or pylons without formwork ties. The climbing tower will transfer all pouring loads into the previous pouring section. Different system variants D12, D15, D22 and D35 facilitate economic adaptation to various project-specific block dimensions.

This cooling-tower formwork is a fully mechanised, self-climbing large-area formwork system. It maximises rationalisation and minimises manual labour – after a short familiarisation period, the crew will soon be accomplishing the casting sections in a 1-day cycle.

The climbing formwork system for structures that need the formwork elements to be moved up in several casting sections. With only two accessories, the Folding platform K can be turned into a fully functional crane-jumped formwork directly on the site.

Climbing formwork 150F is a tried-and-tested system for crane-lifted climbing projects. It is simply to set up and easy to use.

With its modular design, SKE offers an efficient solution for any type of structure and any requirement. The fully hydraulic equipment supports the construction workflow by allowing for fast and safe repositioning processes.

With the innovative Forming wagon TU, cantilevered parapets can be cost-efficiently cast without disrupting traffic or other construction operations.

Combined with a pre-assembled parapet formwork that can be cycled without being dismantled, the travelling Forming wagon T is designed for high cost efficiency.

Doka UniKit, the thoroughly thought out modular system for ease of producing shoring in spaces that require extra-high-capacity equipment. It allows for a variety of uses where heavy loads have to be transferred such as for infrastructure and power station construction.

The Doka composite forming carriage makes for fast, safe construction of bridges on which a concrete deck slab is joined to a steel superstructure. The travelling composite forming carriage carries a large area of pre-assembled composite bridge-deck formwork that can be cycled without being dismantled. It stands out for its excellent adaptability to all circumstances, low-cost assembly from rentable standard components, and its high workplace safety.

The Doka cantilever forming traveller provides certainty regarding planning and costs while ensuring an optimum construction workflow. The perfect design match between the CFT's shoring structure and the formwork, its high standard of safety and its optimised workplace-ergonomic design together ensure that work can progress swiftly and safely.

Doka bridge formwork ParaTop turns Large-area formwork Top 50 into a cantilever arm formwork that can be operated completely from above. The system's innovative insert-shoe makes it easy to erect, and compensates for any installation inaccuracy.

Bridge edge beam formwork T is made up of a very small number of different parts. Its high load-bearing capacity and low dead weight make it a convincing solution.

Load-bearing tower d3 scores for its high load capacity, set-up speed and its broad spectrum of application such as bridge-building, highrise and industrial construction.

The Load-bearing tower Staxo 40 system stands out for being exceptionally easy to handle, and superbly adaptable to any building-construction project.

The Load-bearing tower DokaShore is used for supporting e.g. bridge superstructures made of pre-cast concrete members or CIP concrete, turbine platforms and wide-spanned drive-through access openings, cost-effectively and safely.

The sturdy, stable stair tower can be put together very quickly from frames and pre-assembled stairway elements. Intermediate exits permit safe access to all work-deck levels.

The pre-assembled, fold-out working platforms, with their integrable front/rear and side railings, ladders and self-closing manhole lids, are ready for immediate use and greatly enhance workplace safety. The system can be used on Framax Xlife framed and column formwork units, Framax Xlife plus and Wall formwork FF20, Top 50 and Top 100 tec.

System-based ladderways with integral ladder cages can be attached to Doka wall and column formwork in a few simple steps. These safety accessories can be mounted to the formwork while this is still placed flat on the ground. This ensures complete safety, right from the word "go".

Doka folding platforms K are pre-assembled, work-ready scaffold platforms with standardised system components for all usage situations.

The safe mo­d­u­lar scaf­fold for Ac­cess sys­tems as well as forming and re­in­forc­ing works

The Bracket platform M is a site-ready, lightweight working and pro­tection platform that gives a big boost to safety in the field of masonry and pre-cast construction. The winner of an EU award, the Bracket platform M complies with both EN 12811-1 (for use as a working platform), and DIN 4420 (for use as a pro­tection platform).
