The Doka bridge edge beam formwork NG with adjustable Bridge edge beam support enables a work process with higher precision and productivity. From the spacious working platform, the height and inclination of the Bridge edge beam support can be adjusted, allowing the formwork to be easily set to the bridge edge beam's geometry. The modular system with numerous integrated individual components makes it possible, among other things, to separate the inner and bottom formwork or to fully enclose the platform up to 2 m.
Efficient
- Quick handling and assembly, thanks to the integrated height and angle adjustment of the bridge edge beam support.
- Higher productivity through pre-assembly of individual parts and formwork components.
- Faster setting up and stripping of the formwork thanks to smart work processes.
Versatile
- Modular system for different edge beam sizes and requirements.
- Easy and precise adjustment to the bridge edge beam geometry.
- Universal solution for wide range of applications, e.g. at limited space for system suspension.
Ergonomic and safe
- Full enclosure up to 2 m for effective fall and splash protection.
- Large space for comfortable working.
- Simple and safe operation of all moving elements with just one tool.
![Chistopher Sepperer]()
Christopher Sepperer | Foreman, PORR Group
"Refurbishing bridge edge kerbs is a tough job – with the new Doka bridge edge beam formwork everything is far quicker and easier! There’s no troublesome fitting and adapting to the bridge superstructure and the handling is terrific."

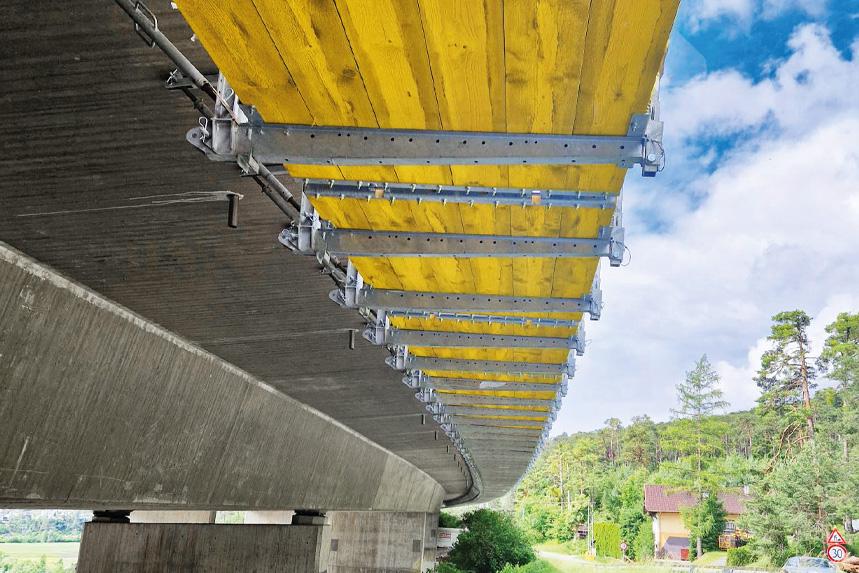

Bracket solution with working platform - safe work processes in every phase of the build.
Unique edge beam support - fast and efficient formwork setting and stripping with integrated height and angle adjustment.

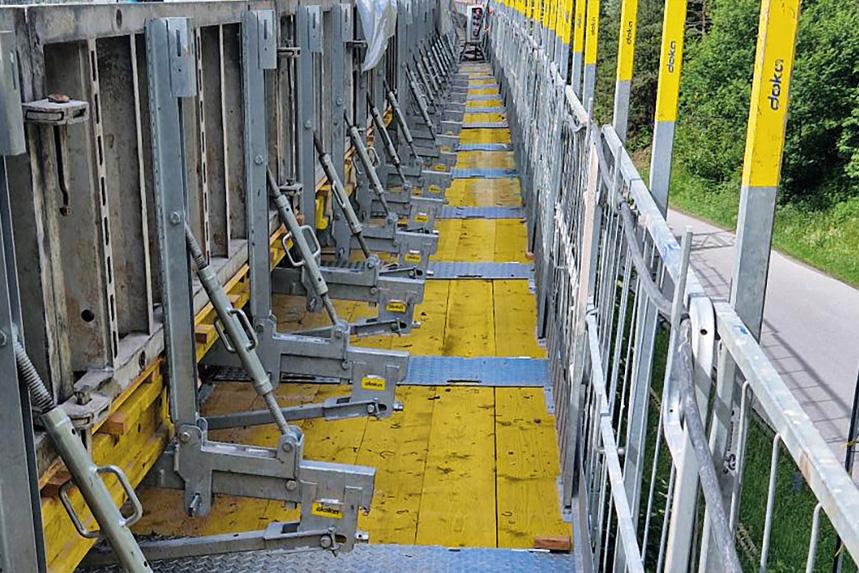

Easy operation of individual components and comfortable working conditions thanks to the spacious work area.
