Adjusted and supported in next to no time
Support prefabricated walls quickly and safely
Your advantages
- Quick set-up
through height adjustment by means of stacking holes as well as fine adjustment via the thread - High safety
due to high load capacity and easy handling - Effective protection against dirt
because of concealed threads
Tip:

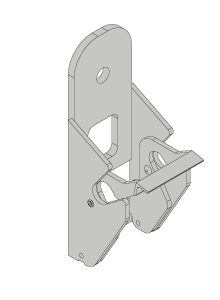

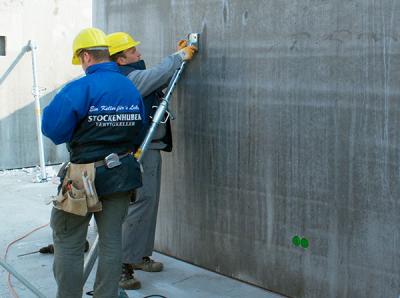

Easy set-up with Docking head

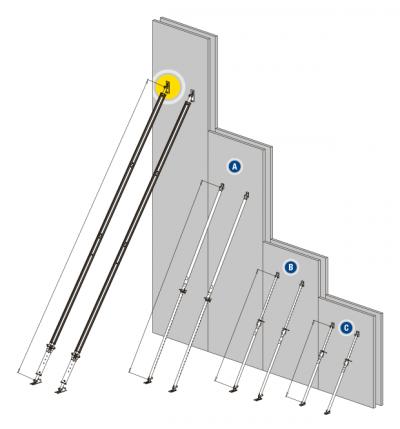

(A) Plumbing strut 540 IB with strut shoe EB
(B) Plumbing strut 340 IB with strut shoe EB
(C) Plumbing strut 260 IB with strut shoe EB
(D) Eurex 60
... concreted with the cavity wall bracket

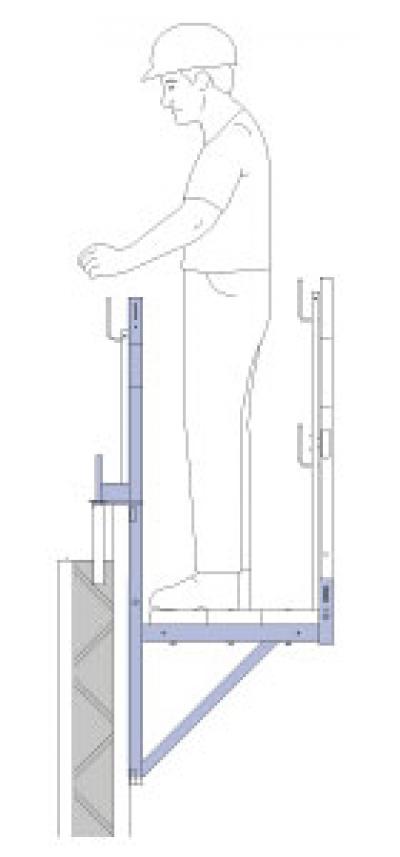

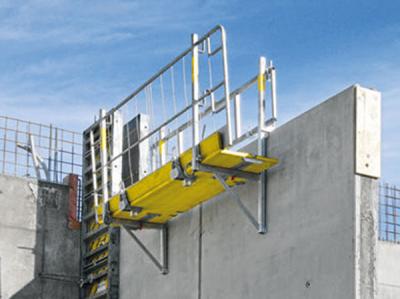

The simple pouring platform for cavity walls. The Cavity-wall bracket 60 is used for preparing pouring platforms and safety railings.
Your advantages
- Easy to assemble, by hand
because of low weight - Railing designs
Bracket railing 240 - 270, Protective grating XP, Guard rail boards or Scaffold tubes - Pre-assembled platform units can be lifted by crane
Tip:
2 use cases
as single bracket or
as pre-assembled platform
Edge-protection XP
Edge-protection on the building up to a railing height of 1.20 m
(1) Overview fixing devices
Railing clamp XP 40cm
Fixing
- Clamping range 2 - 43 cm
- Fastened to end-face of concrete floor-slabs
- Fastened to concrete parapets
Screw-on shoe XP
Fixing
Anchorages
- in a Screw sleeve 20.0
- in an Attachable sleeve 24mm
- in a hole subsequently drilled in the concrete
Handrail-post shoe XP
Fixing
- Floormounted on concrete floor-slabs
Anchorages
- using Doka express anchor 16x125mm
- with an alternative anchor-bolt
Balcony adapter XP
Fixing
- End-face attachment for balconies
Anchorage
- with Bridge edge beam anchor 15.0
Floor end-shutter clamp XP
Fixing
- Attachment to the wall for slab topends
Anchorages
- with Tie rod 15.0 and Super plate 15.0
- with Bridge edge beam anchor 15.0
Step bracket XP
Fixing
- End-face attachment for stairways
- Fastened to end-face of concrete floor-slabs
Anchorages
- using Doka express anchor 16x125mm
- with an alternative anchor-bolt
Framax adapter XP
Fixing
- Framed formwork Framax Xlife, Alu-Framax Xlife and Framax Xlife plus
Roof-parapet bracket XP
Fixing
- Attachment to the wall for slab topends and/or fall protection
Anchorages
- with Bridge edge beam anchor 15.0
- plastic anchor bolt and screw

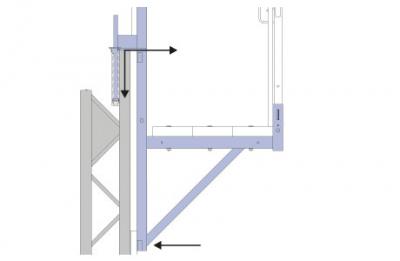

Cavity-wall bracket 60
Fixing
- hooking in cavity-wall elements
Anchorage
- Mounting sleeve M
Precast member adapter XP
Fixing
- mounting to walls creating a side protection
Anchorages
- plastic anchor bolt and screw
- with Bridge edge beam anchor 15.0

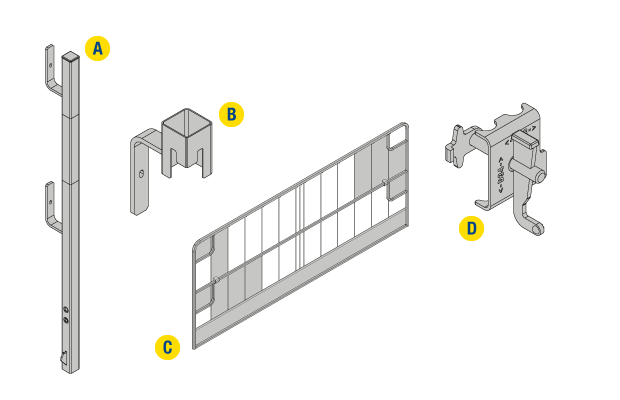

(2) Overview Posts + Accessories
(A) Handrail post XP 1,20m
(B) Toeboard holder XP 60cm
(C) Protective grating XP
(D) Scaffold tube holder

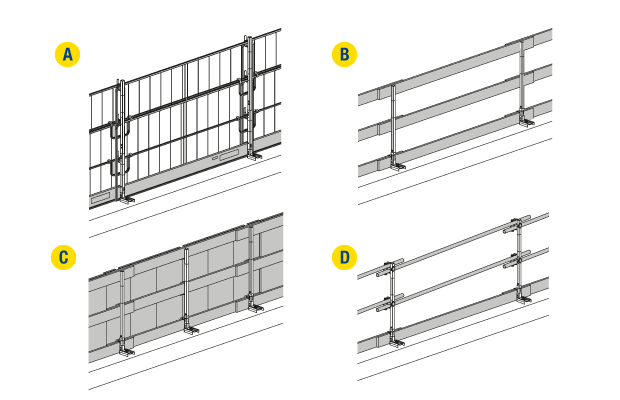

(3) Overview Safety barriers
(A) Protective grating XP
(B) Guardrail boards
(C) Gap-free boarding
(D) Scaffold tubes
(4) Use as Floor end-shutter profile XP
Your advantages
- easy assembly on the lying precast member
- railing designs
- for slab thicknesses of up to 30 cm
Tip:
fast and safe slab top-end
(a) Floor end-shutter clamp XP
(b) Handrail post XP 1,20m
(c) Slab top-end (board 5x20cm)
(d) Slab top-end (board 5x13cm)

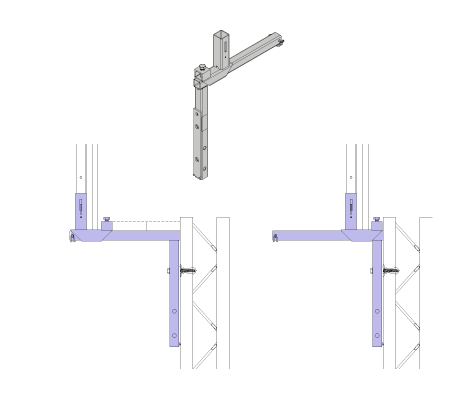

(5) Use as Roof-parapet bracket XP
Your advantages
- easy assembly on the lying precast member
- Safety barrier flexible up to 25 cm
- can be used as slab top-end
Tip:
Universally applicable and adjustable

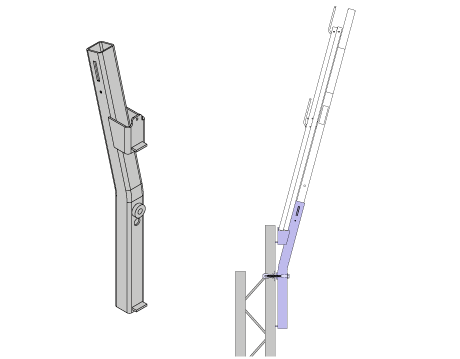

(6) Use as Precast member adapter XP
Your advantages
- simple and fast solution for producing a railing on cavity walls
- high security acc. EN13374 on the BauV for Austria
- safe and fast pre-assembly with impact wrench on the ground
- 15 ° slope of the railing for sufficient space for concreting
Tip:
100 % pre-assembly on the ground
(7) Use as Balcony adapter XP
Tip:
Working on safe building edge
Your advantages
- safe assembly on the ground
- allows sealing work through installation space
- from floor thicknesses 160 cm

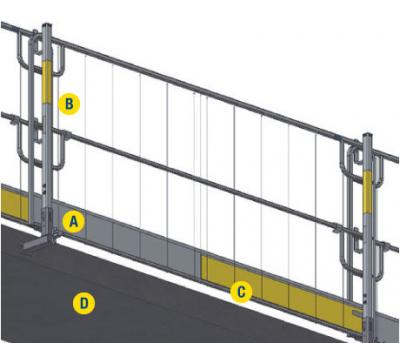

(a) Balcony adapter XP
(b) Handrail post XP 1.20m
(c) Protective grating XP e.g. 2,70x1,20m
(d) Floor
