Multi-ply formwork sheets

the right solution from infill zones to rentable panels

Doka multi-ply formwork sheets are used in very many Doka formwork systems. The broad spectrum – ranging from DokaPly to the Xlife sheet – allows Doka to offer ideal solutions for many different requirements from infill zones to fair-faced concrete.

Downloads

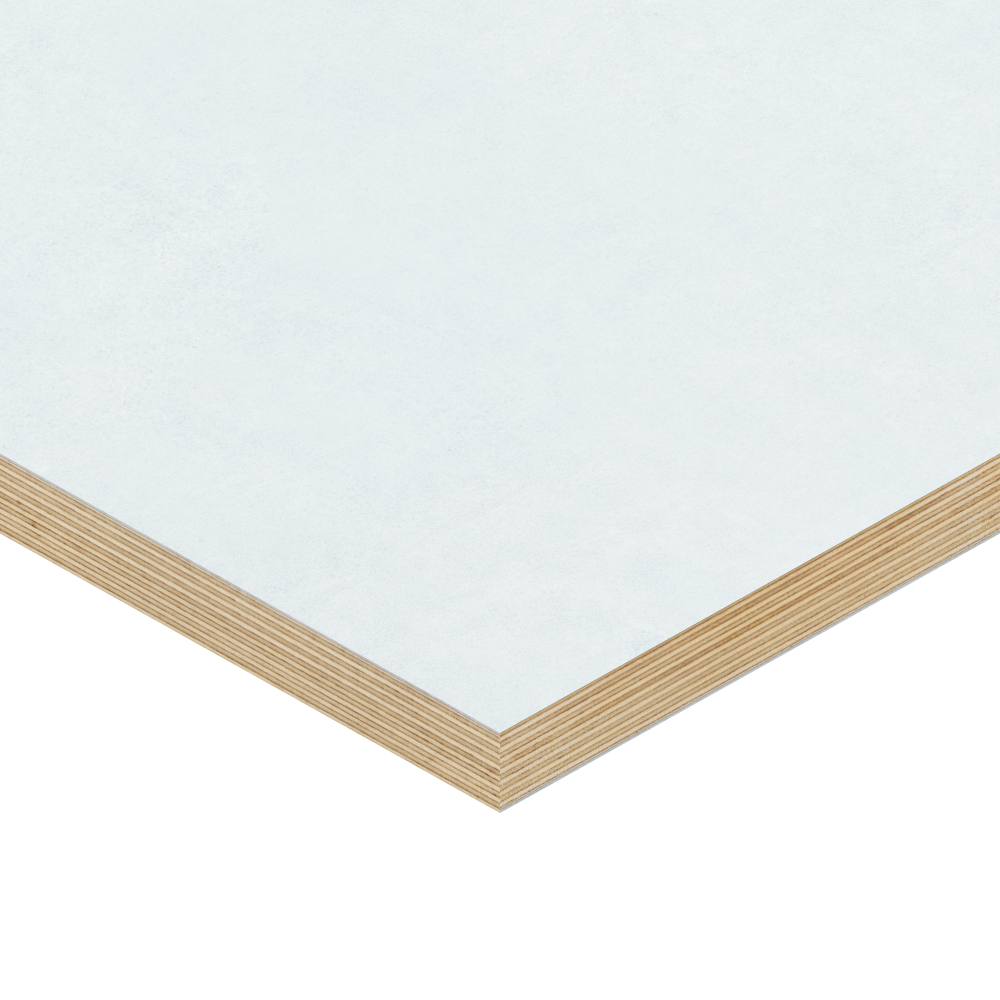

Xface sheet

Large-format formwork sheets for superlative concrete finishes

The Xface sheets' great durability against scratching and vibrator damage, and their large sheet formats, deliver a smooth and uniform concrete appearance with only a small number of joints. Their non-absorbent coating and high-grade edge seal mean that no rippling takes place. The hard-wearing fibre-reinforced synthetic resin coating prevents any splintering when the sheets are nailed, stops them from fraying when they are cut or drilled, and prevents stains on the surface of the concrete. The excellent release properties of the Xface sheet mean that no release agent is needed for the sheets' first few re-use cycles, and make cleaning very easy indeed.

Dokaplex formwork sheet

High format and angle accuracy

Smooth, high-grade concrete surfaces and fast on-site assembly thanks to low tolerances and high format accuracy.

DokaPly

The multi-ply formwork sheets for any site and any usage location

DokaPly is available in both coated and uncoated plywood, from high-grade birch plywood sheets to simple sheets for cutting to size on infill zones.

  • DokaPly Birch: the premium birch plywood sheet for smooth concrete finishes
  • DokaPly Spruce: the premium spruce plywood sheet for smooth concrete finishes
  • DokaPly eco: the solid plywood sheet for level concrete surfaces and infill zones
  • DokaPly natural: the uncoated plywood sheet for infill zones
Xface-Platte

Xface sheet

the large-format fair-faced sheet for superlative concrete finishes

  • Type: 15-layer Nordic Birch plywood, crosswise veneer layers
  • Surface: concrete side with special fibre-reinforced synthetic resin coating; rear side with phenolic-resin coating 120 g/m²
  • excess material for exact blank cut

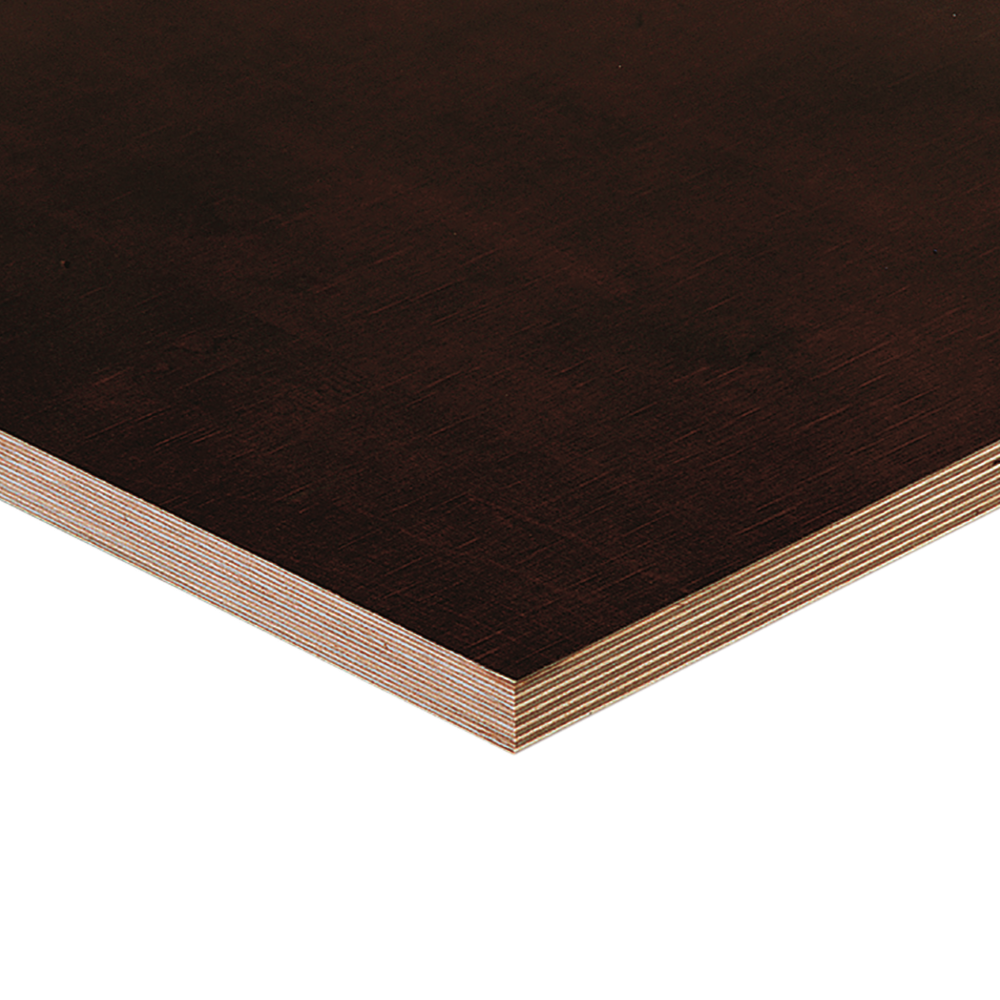

Dokaplex formwork sheet

Dokaplex formwork sheet

High format and angle accuracy

  • Type: Nordic Birch plywood, crosswise veneer layers
  • Surface: coated with phenolic resin film 220 g/m²
DokaPly Birch

DokaPly Birch

The premium Birch plywood sheet for smooth concrete finishes

  • Type: 15-layer Nordic Birch plywood, crosswise veneer layers
  • Surface: coated with phenolic resin film 220 g/m²
DokaPly Spruce

DokaPly Spruce

The premium Spruce plywood sheet for level concrete finishes

  • Type: 7-layer Nordic Spruce plywood, crosswise veneer layers
  • Surface: coated with phenolic resin film 400 g/m²

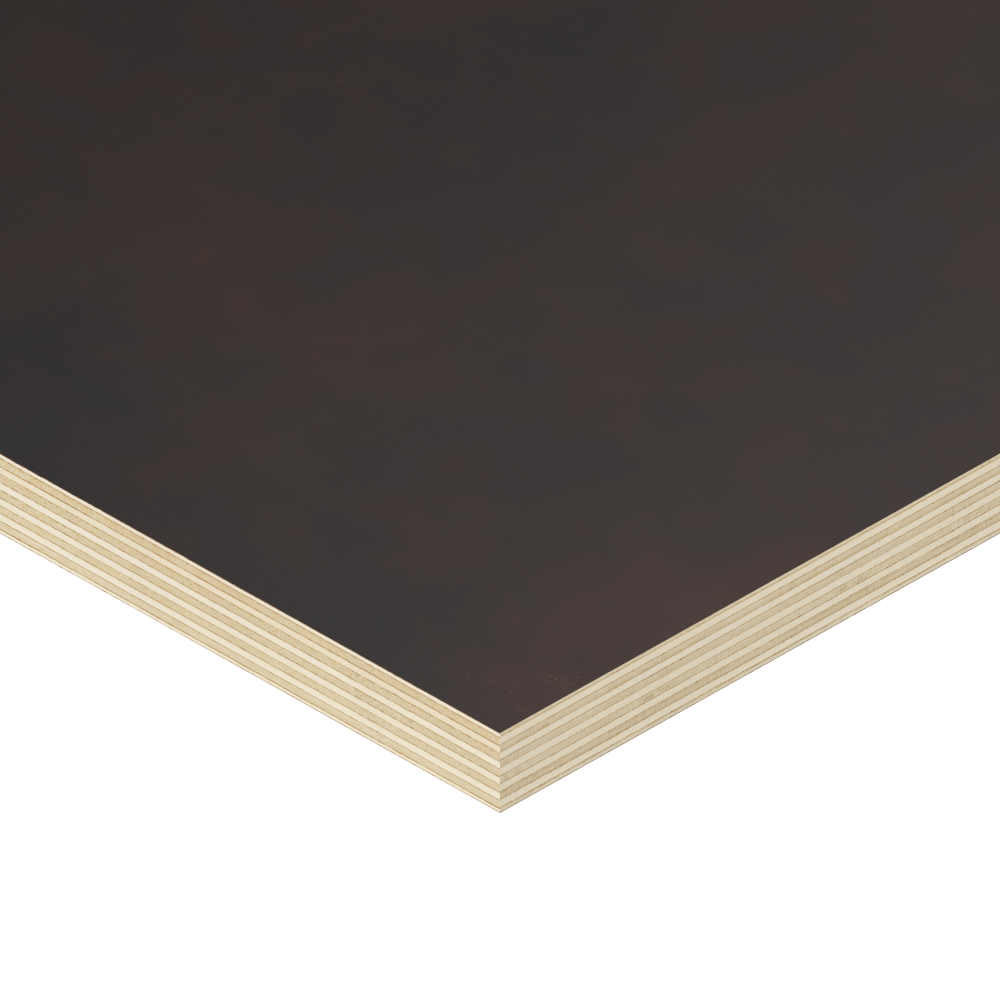

DokaPly eco

DokaPly eco

The solid plywood sheet for level concrete surfaces and infill zones

  • Type: 11-layer European Poplar plywood, crosswise veneer layers
  • Surface: coated with phenolic resin film 120 g/m²

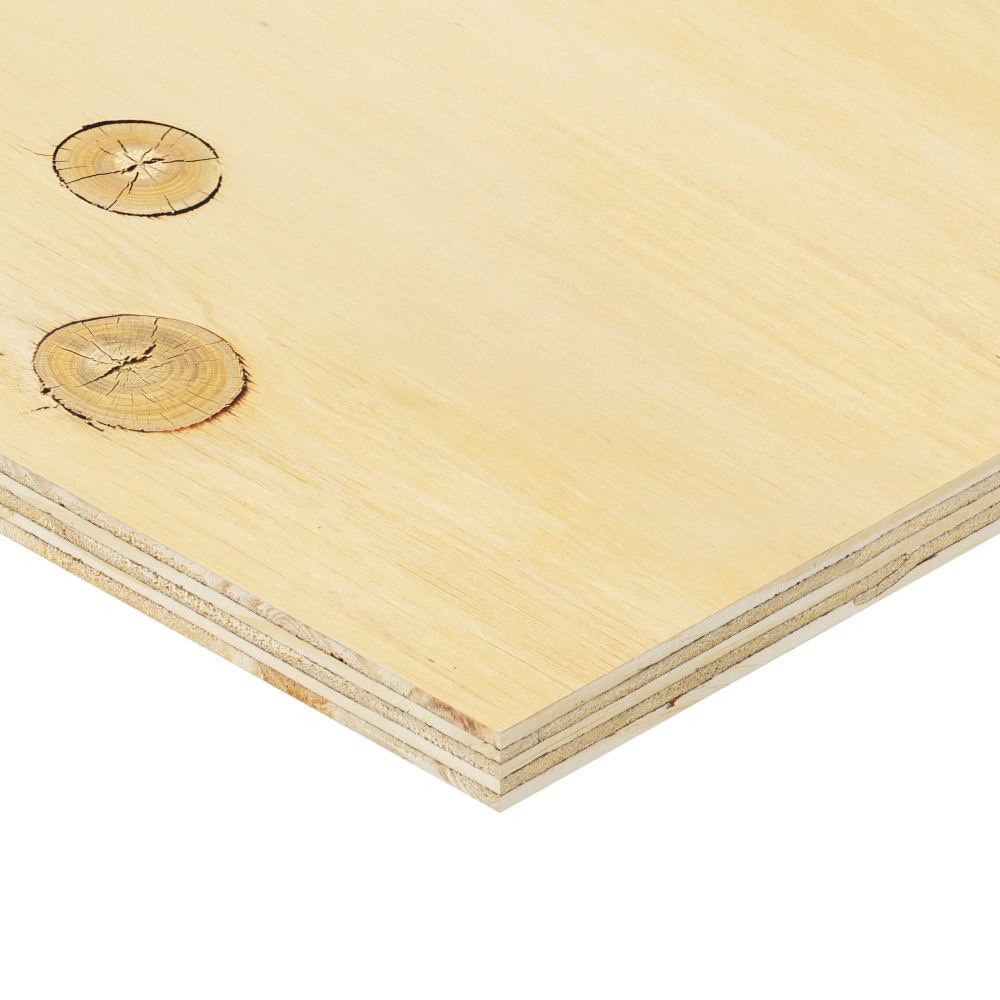

DokaPly natural

DokaPly natural

The uncoated plywood sheet for infill zones

  • Type: 7-layer Brazilian Elliotis Pine, crosswise veneer layers
  • Surface: uncoated
