Concremote® – ‘know-when’ for the site

01.04.2014 | News
When forming and pouring, it is vital to make sure that the right worksteps are carried out at the right time. To do this, it is often necessary to have reliable information on the strength development of the concrete. Concremote lets users measure the early strength development of concrete on the site in real-time, making targeted management of the forming and CIP concreting operations much simpler.
Stephanie Lutz
Stephanie Lutz+971 4 870 8700

Images

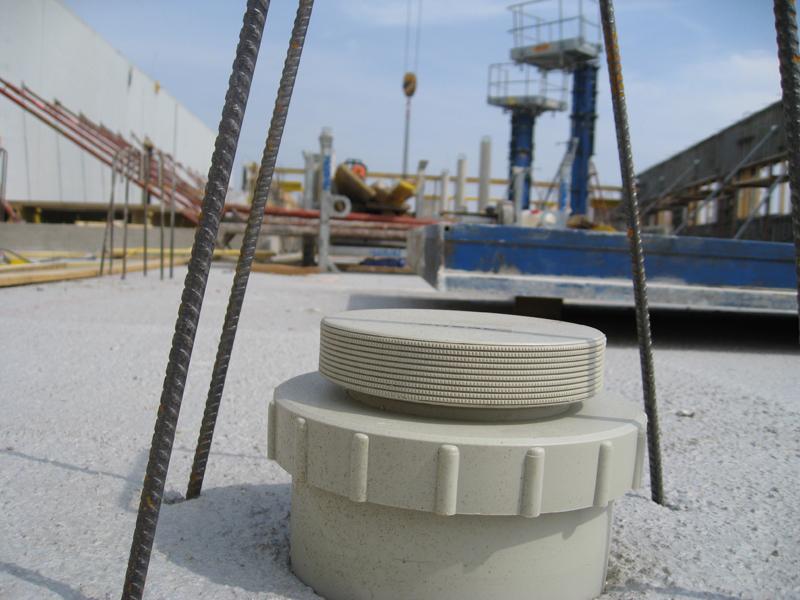

  • Concremote is very easy to use: slab sensors are inserted after the concrete has been struck off, and start measuring automatically. Photo: Doka
Developments in concrete technology have had a major influence on site workflows, and thus on the formwork technology used. The requirement is for building-work to take place swiftly, safely and in high quality, and a key parameter affecting the construction workflow is the compressive strength development of the concrete during construction. The stripping times and curing times, and the time for pre-stressing, are all worked out from the concrete-strength development, for instance. Concremote concrete monitoring lets users find out what steps need to be taken, on the basis of measured concrete-strength values, and thus to optimise the construction process.

Concremote measures the concrete strength by way of sensors inserted in the concrete during pouring, without anyone needing to be physically present on the site to read out and record the measured data. These sensors regularly measure the temperature development of the fresh concrete and transmit the data to the Concremote computing centre. Here, the ‘de Vree’ weighted maturity method is used as the basis for calculating and providing reliable, Standards-compliant information, in real-time, on the strength development of the concrete.

Concremote uses two types of sensor: slab sensors, which are inserted in the fresh concrete after this has been struck off, and cable sensors that are incorporated directly into the form-facing of the wall formwork and repositioned together with the formwork.

Wireless transmission of the non-destructively measured values starts automatically. The system’s long-life batteries, sturdy sensors and cableless data transmission make it highly user-friendly. The measuring results can be accessed at any time on a secure web portal. Also, users can be alerted by e-mail or text-message as soon as the specified early strength has been reached.

Concremote offers wide-ranging possibilities for optimising the construction process: if a customer has entered a specific target value for a site, the strength values enable him to make precise recommendations regarding e.g. the earliest times for stripping the formwork, climbing and pre-stressing, and for the end of curing. The real-time measured data can also be taken into consideration for optimising the concrete formulation.

Concremote concrete monitoring is an innovative method that helps to ensure process reliability in the construction operations, based on proof of the compressive strength of the concrete in the structure member, and that also opens up scope for optimisation.

CONCREMOTE® is a tried-and-tested product (monitoring and process management system for the construction sector) from the B|A|S concrete-engineering consultancy in the Netherlands.
