Fisher Street, Crossrail C300/410

United Kingdom

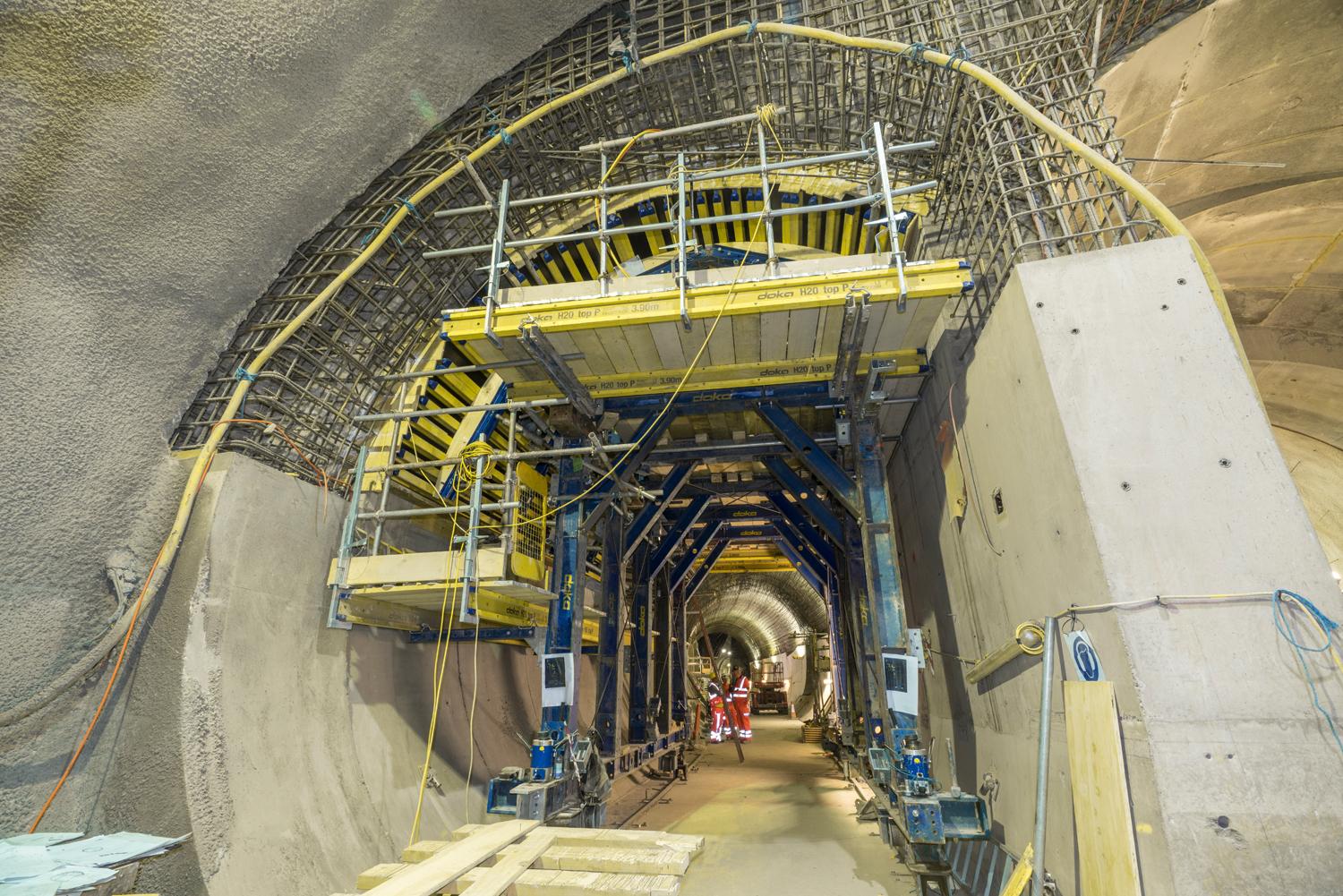

Fisher Street Crossover is a part of the Crossrail contract C300/410 – Western Tunnels, one of the largest Crossrail contracts. To achieve customer requirements Doka designed an easy adaptable formwork traveller suitable for all different cross sections.

Back to overview
Array
Array

Project data

Year of completion
2015
Project duration
3 Months
Country
United Kingdom
Town or city
London
Contractors
Bam Ferrovial Kier JV
Structure
Tunnel
Type of structure
Mining-type tunnel

Segmented construction method

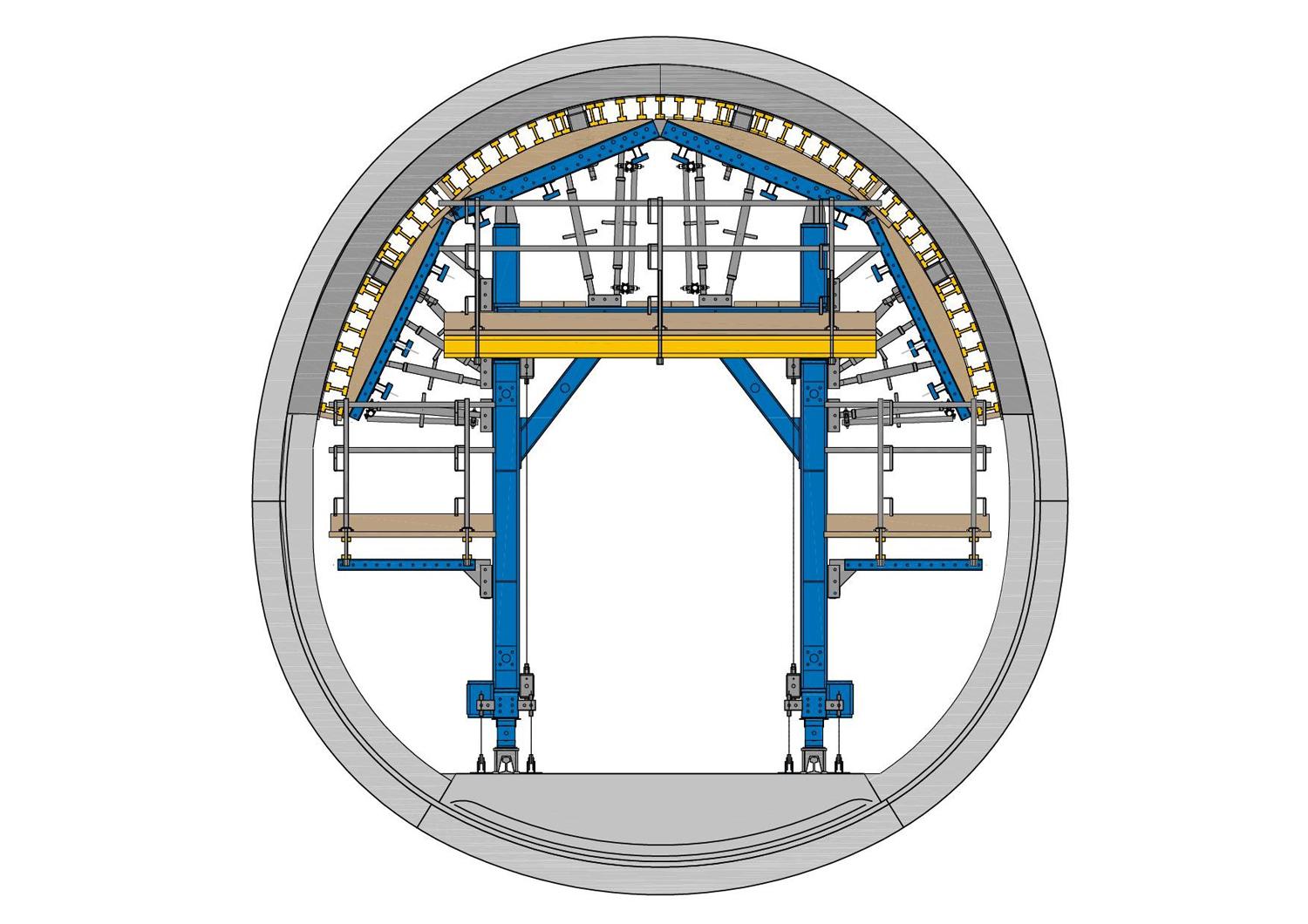

Cross-sectional shape
Curved/round
Clear width
6,32 m
Clear height
6,14 m
Formed length of tunnel
62 m
Length of concreting section
7,32 m
Number of casting sections
10
