WESTENBRUNNENBACH CULVERTS THROUGH RAILWAY EMBANKMENT

Treuchtlingen, Germany

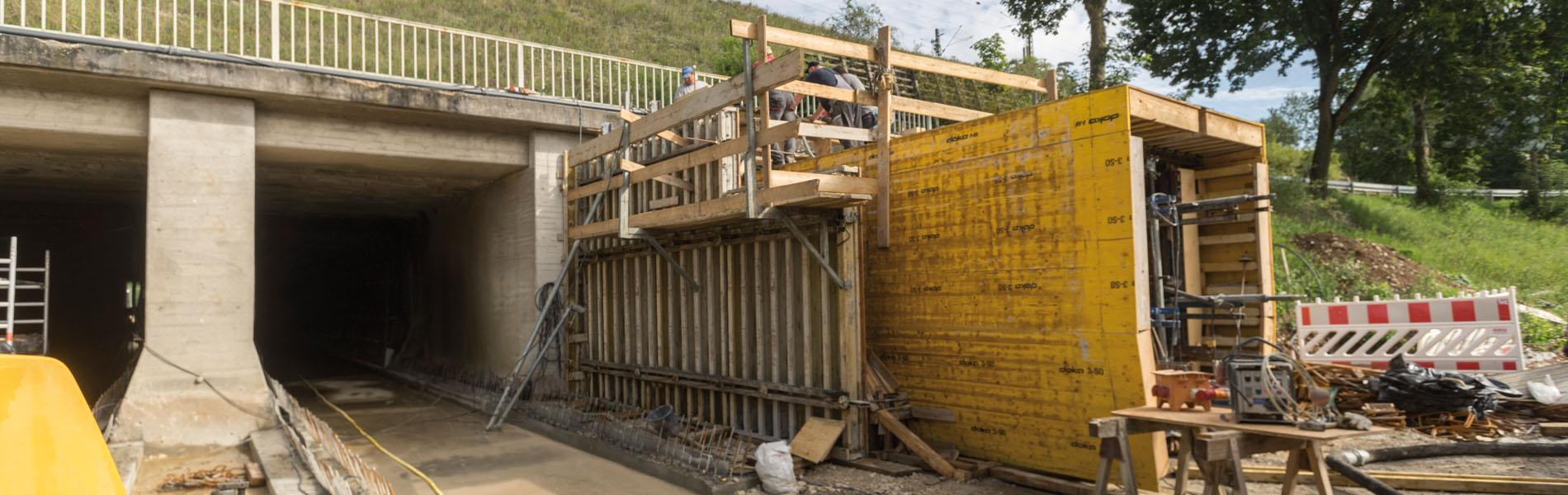

The planners originally envisaged rehabbing the array of culverts in the embankment carrying the railway over the valley of the Westenbrunnenbach river by laying precast reinforced-concrete pipes inside the old cross-sections and filling the cavities round the pipes with compacted sand. The specialist company that contracted for the work proposed an in-situ concreting solution instead. Doka then modified its Box Culvert system, which is designed for the cut-and-cover method, so that it could be used for single-sided forming and concreting. The system, which can use either Large-area formwork Top 50 or Framed formwork Framax Xlife, has the advantage that the culvert walls and top slab can be cast monolithically (fresh concrete pressure 50 kN/m²).

Back
Westenbrunnenbach
Westenbrunnenbach
Westenbrunnenabch

Project data

Year of completion
2017
Project duration
3 months
Country
Germany
Postcode
91757
City
Treuchtlingen

Structure-related data:

Project type
Tunnel
Footprint
12.000 m²
Number of levelsw
6
Concrete consumption
5.800 m³
Smallest clear width
3 x 2.50 m
Smallest clear height
2.38 m

Systems used

Top 50
Framax Xlife
