Load-bearing tow­er d3

The high-per­form­ing and es­pe­cial­ly cost-ef­fec­tive shoring sys­tem for a wide range of ap­pli­ca­tions

Load-bearing tow­er d3 scores for its high load ca­pac­i­ty, set-up speed and its broad spec­trum of ap­pli­ca­tion such as bridge-build­ing, high­rise and in­dus­trial con­struc­tion.

Downloads

Rapid work­ing
made pos­si­ble by easy han­dling

  • thanks to lightweight components
  • easy to as­sem­ble with few­er se­parate components
  • rapid­ly set up by as­sem­bling in ei­ther the hor­i­zon­tal or the up­right
  • no tools need­ed for as­sem­b­ly
  • sim­pli­fied re­po­si­tion­ing pro­cess thanks to va­ri­e­ty of op­tions

High­ly ver­satile
with its mo­d­u­lar sys­tem con­cept

eas­i­ly adapt­ed to wide range of shoring tasks be­cause

  • the in­ter-frame spac­ing can be adapt­ed to the load ca­pac­i­ty
  • pre­cise­ly adapt­ed to any length, width and height
  • eas­i­ly com­bined with all Doka Floor Sys­tems

Cost-ef­fec­tive
thanks to less equip­ment

  • high load ca­pac­i­ty up to 94 kN per leg, due to the in­creased ma­te­rial strength of the d3 frame
  • great flex­i­bil­i­ty makes for adapt­a­bil­i­ty to pro­ject-spe­cif­ic re­quire­ments
  • high-lev­el sta­bil­i­ty with its 1.52 m wide frame
  • hot-dip gal­vanized steel parts en­sure a long lifes­pan

System

d3 frame

  • hot-dip galvanized steel frames available in 0.90 m, 1.20 m, and 1.80 m height for simple height adaptation
  • the built-in stop-ring of the d3 coupler prevents slippage into frame
  • safety catches for fast and safe diagonal cross assembly

Di­ag­o­n­al cross­es

  • simple and fast assembly with permanently connected diagonal braces
  • different lengths permit flexible inter-frame spacing for cost-optimising the load capacity
  • clear identification of lengths through coloured clips and imprint
  • available for inter-frame spacing of 60 cm, 100 cm, 150 cm, 175 cm, 200 cm, 250 cm and 300 cm for any frame height

Screw jack head and foot

  • height adjustment exact to the millimetre
  • practice-oriented spindle nut with option for connecting anti-liftout guard
  • released with minimal physical effort, even when under load
  • different screw-jack heads and feet for different options for use

Heavy-du­ty screw jack

  • flexibly adapted to different heights
  • screw-jack extension length up to 2 m per load-bearing tower permits optimum adaptation to changes in the level of the support base, to downstand beams and to sloping floors

Util­i­sa­tion

Fast and safe as­sem­b­ly

  • logical and easy assembly sequence
  • assembly on the flat for maximum speed and safety
  • simple and fast assembly and repositioning by crane

  • the built-in stop-ring of the d3 coupler prevents slippage into frame and permits quickly setting up in the upright

Sim­ple and fast re­po­si­tion­ing

  • no dismantling required for repositioning
  • repositioned by crane, forklift truck etc.

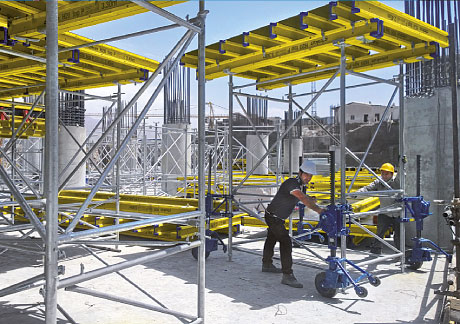

  • manual repositioning with attachable wheelsets

Ar­eas of use

The Load-bearing tower d3 is ideal:

  • as falsework for bridge-building and tunnelling, where high loads are generated and high structural integrity is essential
  • in industrial and power-station construction, as a load-bearing tower for any application
  • as well as in building construction, e.g. for multi-storey car-park decks, schools, hospitals and shopping centres and where large-area tableform units reduce forming times
