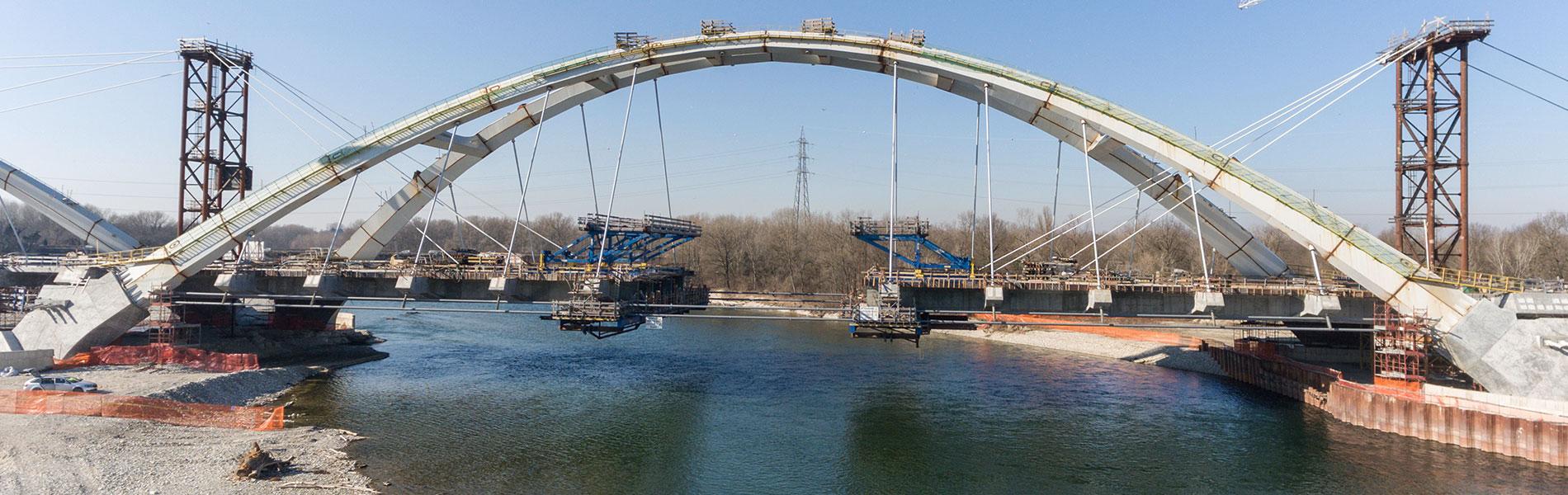

Ticino Bridge

Vigevano, Italy

The new bridge over the river Ticino in Vigevano is part of an upgrade and expansion of the S.S. 494 Vigevanese. The infrastructural developments aim at improving the accessibility to the Malpensa airport and at providing the Lomellina area an opportunity for expansion. Doka supports the customer to improve the design and implementation phase in an early stage to reduce the costs. From conventional shoring up to several cantilever forming travellers over the Ticino river Doka was a full-service provider on these project. One of the challenge was the load distribution in the arch along the 150 m bridge span. This challenge was solved by having two different segment lengths with prefabricated distributions beams for the suspension cables of the superstructure.

Challenge:
CFT solution provided by CC: the only one traveler on the Italian market able to cast the entire section
- Doka was the only one supplier able to guarantee 4 couples of travelers
- DITA technical office support the customer during the planning phase reducing work costs
- DITA create a very good relation with customer’s project manager and purchase manager

Solution:
Standard shoring + formwork for approach viaduct and pier heads and special CFT solution

Back to overview
Ticino Bridge
Reference Title
Ticino Bridge

Project data

Year of site completion
2019
Project Duration
June 2016 - April 2019
Country
Italy
City
Vigevano
Contractor
Impresa Polese S.p.A.

Building data

Cross-section shape
double box-girder with straight webs
Total length
500 m
Max. span length
150 m
Bridge width:
26.8 m
Superstructure height
3.2 m.
max. segment length
4.5 m / 5.0 m
max. segment weight
250 t
Number of segments
50
