Platform SCP

The self-climbing forming and work­ing platform for any high­rise core

The Platform SCP has room for all the site equip­ment need­ed, and is ful­ly en­closed for safe, weather-shield­ed work­ing, even at great heights. Pow­er­ful hy­draulic cylin­ders crane­less­ly raise the platform, formwork, equip­ment containers and con­crete plac­ing boom to the next cast­ing sec­tion, in on­ly one lift.

Videos

High safe­ty
for the en­tire site

  • safe, weather-shield­ed work­ing made pos­si­ble by the large, ful­ly en­closed works­pace
  • pre­vents fall-hazard lo­ca­tions open­ing up dur­ing re­po­si­tion­ing, as the en­tire platform is raised hy­drauli­cal­ly in one lift
  • in­te­grat­ed plat­forms, stair towers and lad­ders pro­vide com­plete safe­ty dur­ing work­ing op­er­a­tions and for up-and-down ac­cess

Rapid work­ing
in a sys­te­m­at­ic se­quence

  • quick and easy to re­po­si­tion in on­ly a few op­er­a­tio­n­al steps, as it is 'climbed' at the push of a but­ton
  • short forming-times, as the formwork sus­pend­ed from the gird­er grille is easy to close and open
  • speeds up the work­flow, as the crew en­joy an en­hanced feel­ing of safe­ty at all heights

Out­s­tand­ing cost-ef­fi­cien­cy
for your high-rise core

  • saves on craneage, as the platform can al­so tran­s­port high pay­loads, in­clud­ing equip­ment containers and con­crete plac­ing booms, when it climbs
  • can be adapt­ed to any re­quire­ment, thanks to its mo­d­u­lar sys­tem and to the fact that there are sev­er­al dif­fer­ent ways of sus­pen­sion-mount­ing it to the struc­ture
  • op­ti­mised con­struc­tion se­quences achieved by the plan­n­ing and en­gi­neer­ing ser­vices of the Doka Com­pe­tence Cen­tre

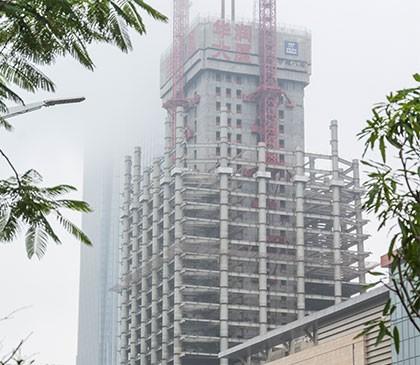

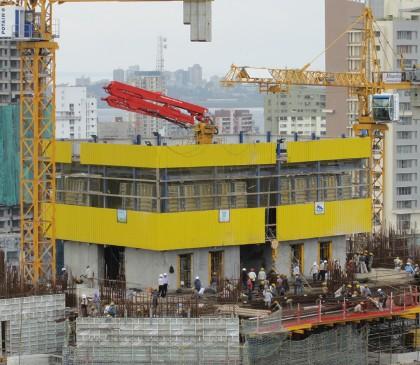

References

System

One sys­tem – two con­struc­tion meth­ods

Ad­vanc­ing core

With this construction method, the core area is formed ahead of the trailing floors. Producing walls and floors separately allows for a simpler construction workflow with focus on the individual component.

Floors and walls cast in one pour

Floors and walls are produced in one step (monolithic). With ideal planning, short distances for site crew and crane ensure additional acceleration.

So­phis­ti­cat­ed lo­gis­tics, ease of op­er­a­tion

The high service loads that are possible on the Platform SCP save storage space on the site at ground level. For even faster cycle times, the reinforcement operations can also be carried out above the platform. The system makes it possible to suspend working platforms that reach deep down into the shafts, enabling the crew to start carrying out finishing-jobs while the concreting works are still underway.

Util­i­sa­tion

Sys­tem so­lu­tions for smooth con­struc­tion work­flows

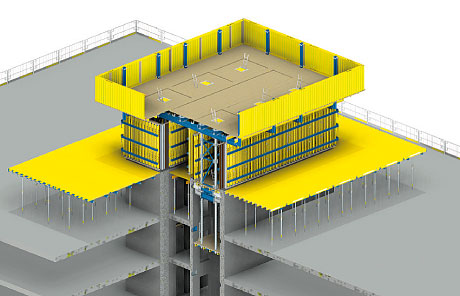

(A) easy site logistics made possible by openings in the decking, for equipment-handling or fitted components such as stairways

(B) safe access routes by using stair towers both on and inside the platform

(C) short distances for crew to cover thanks to nearby storage areas with high live load rating for rebar and site installations

(D) construction workflow is optimised by integrating concrete placing booms

Up­wards at the push of a but­ton

Together with the working platform, timber-beam or framed formworks are raised to the next casting section in a single lift, by powerful hydraulic cylinders.

Am­ple space and safe­ty at any height

Working just like on the ground thanks to closed platform levels and generous stripping paths.
