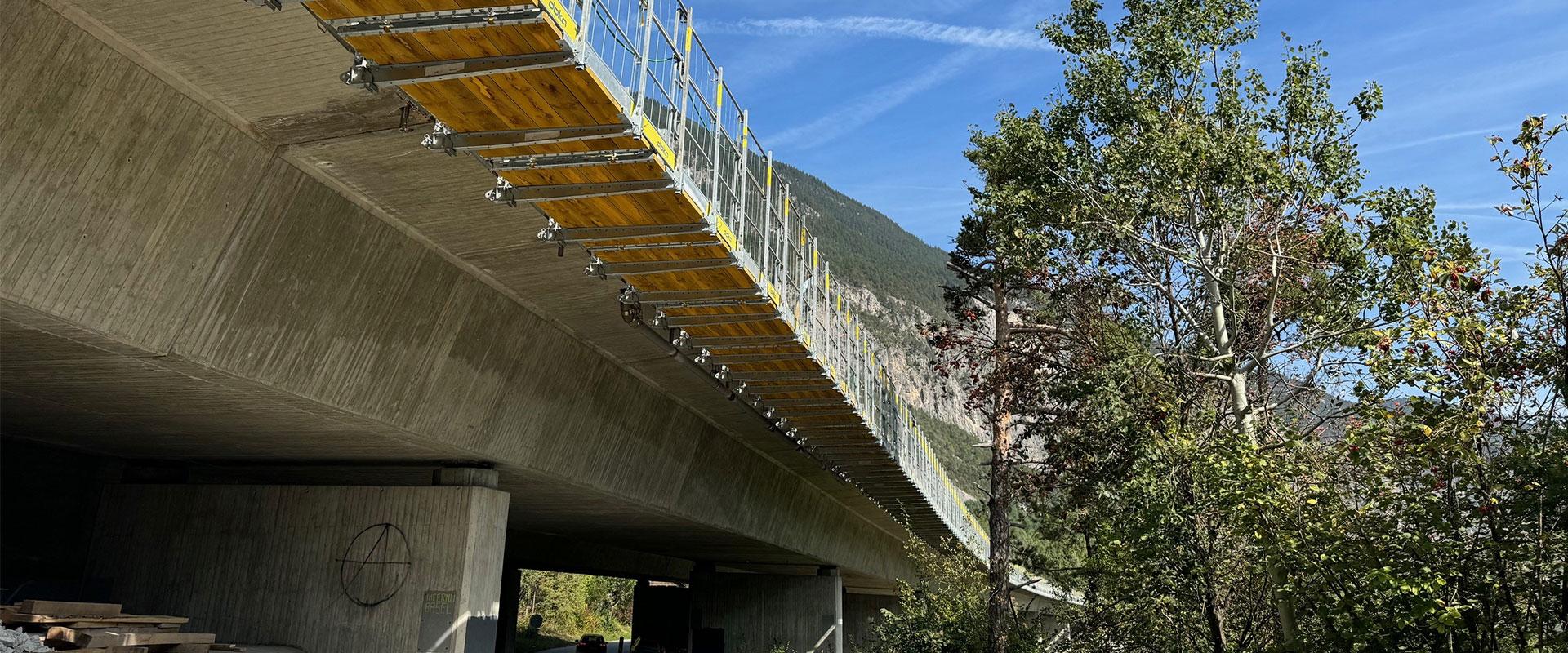

Edge beams
The finishing touch for the bridge
The non-traffic edge formation of bridges made of reinforced or pre-stressed concrete is called Bridge edge-beams. They have to fulfil a wide variety of functions. In addition to protecting the load-bearing bridge structure, they serve to anchor passive protective devices and as a bicycle and/or pedestrian path.
Highlights:
- Increased occupational safety with modern safety concept for safe and fast work
- High horizontal and vertical flexibility for adaptation to the required geometry
Functions of this structural element:
- safeguard traffic on the bridge
- installation of crash barriers
- absorb the impact forces of vehicles straying out of lane
- conceal dimensional inaccuracies of the cantilever arm

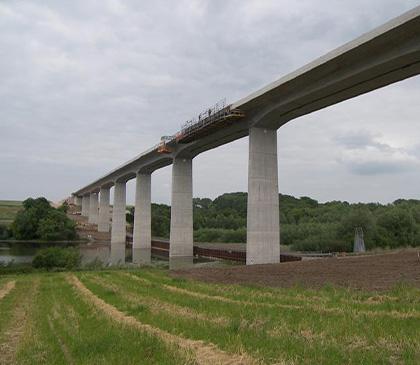

Scherkondetal Bridge
Germany
Scherkondetal Bridge
Holzmatttal Bridge
Germany
Holzmatttal Bridge
Bridge over the Gailenkircher Bach
Germany
Bridge over the Gailenkircher Bach

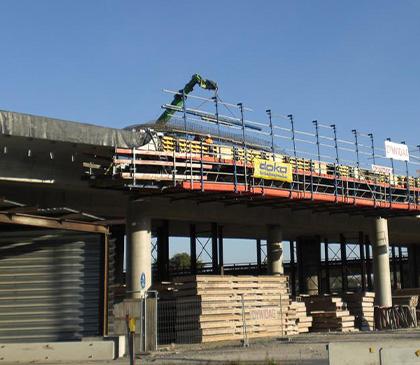

Hochbrücke Freimann motorway overpass
Canada
Hochbrücke Freimann motorway overpass
A7 Fulda-Würzburg autobahn, Sinntal Viaduct
Germany
A7 Fulda-Würzburg autobahn, Sinntal Viaduct
Danube bridge at Traismauer
Austria
Danube bridge at Traismauer
