The large-area form­work for all shapes and loads

Im­mense flex­i­bil­i­ty with on­ly three sys­tem com­po­nents

Large-area form­work Top 50 is a cus­tomis­able "con­struc­tion kit" form­work sys­tem de­signed to ac­com­plish many very di­verse types of task. The shape, size, tie-hole pat­tern and form-fac­ing of the el­e­ments can be adapt­ed to suit any re­quire­ment.

Ver­satil­i­ty

for all shapes and loads

The 'con­struc­tion kit' tim­ber-beam form­work for

  • any ar­chi­tec­tu­ral re­quire­ment

  • op­ti­mum adapt­a­bil­i­ty to fresh-con­crete pres­sure

  • any type of form-fac­ing

  • any tie-hole pat­tern

Fast, ef­fi­cient work­ing

thanks to op­ti­mised form­work so­lu­tions

Cost-ef­fi­cient pro­ject im­ple­men­ta­tion thanks to

  • in­di­vi­d­u­alised so­lu­tions

  • high num­bers of re-use cy­cles

  • short form­ing-times

  • large, op­ti­mised shift­ing units

Cost-cer­tain­ty

from cus­tom-built form­work

Pre-as­sem­b­ly by Do­ka's unique Ready-to-Use Ser­vice gives you

  • a per­fect joint pat­tern thanks to the pre­ci­sion el­e­ment joints

  • time and space sav­ings at the site

  • ex­act­ly match­ing el­e­ments with no need for any fin­ish­ing work

  • spe­cial so­lu­tions for bridge, tun­nel and in­dus­trial con­struc­tion

Ex­treme­ly high safe­ty

thanks to safe work­place ac­cess routes

Large-area form­work Top 50 is easy to com­bine

  • with prac­ti­cal Do­ka safe­ty prod­ucts such as the Do­ka plat­form sys­tem Xsafe plus or the Lad­der sys­tem XS

Top 50 in de­tail

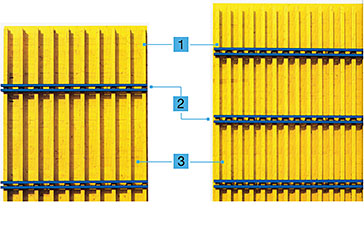

The Doka formwork beams H20 (1) and the steel walings (2) are spaced closer together or further apart, depending upon what loads are expected. The form-facing (3) is freely selectable, to meet widely differing requirements.

Form­work built by the Ready-to-Use Ser­vice

The individual parts of the Top 50 system can quickly be assembled into site-ready elements by means of easy-to-use connecting devices: This saves on assembly costs. Having the elements pre-assembled by the Doka Ready-to-Use Service ensures top-quality, meaning precision element joints and a first-class joint pattern, even with challenging geometries. For high numbers of repeat uses, fielding Large-area formwork Top 50 pays off even more.

Free choice of form fac­ing and form-tie pat­tern

With the Top 50 system, all architectural specifications can be fulfilled.

Fair-faced con­crete

Because it can be used with any form facing and adapts to any shape of structure, Large-area formwork Top 50 is particularly suitable for forming concrete that has to meet stringent specifications regarding its surface finish (i.e. fair-faced concrete).

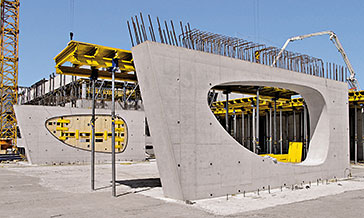

Out-of-the-or­d­i­nary fa­cades

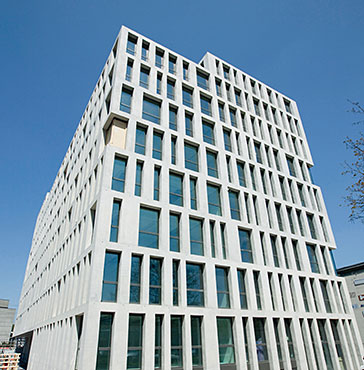

Domino ESP Berne, Switzerland

Sharp edges, smooth sur­faces

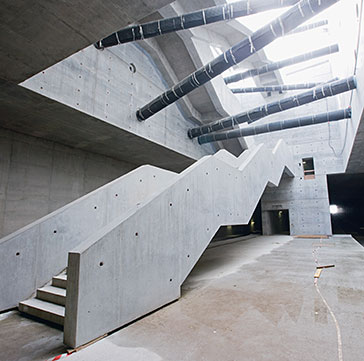

City Tunnel, Leipzig, incl. underground stations, Germany
