Pro­tection screen Xclimb 60

A guided climbing system for full perimeter pro­tection

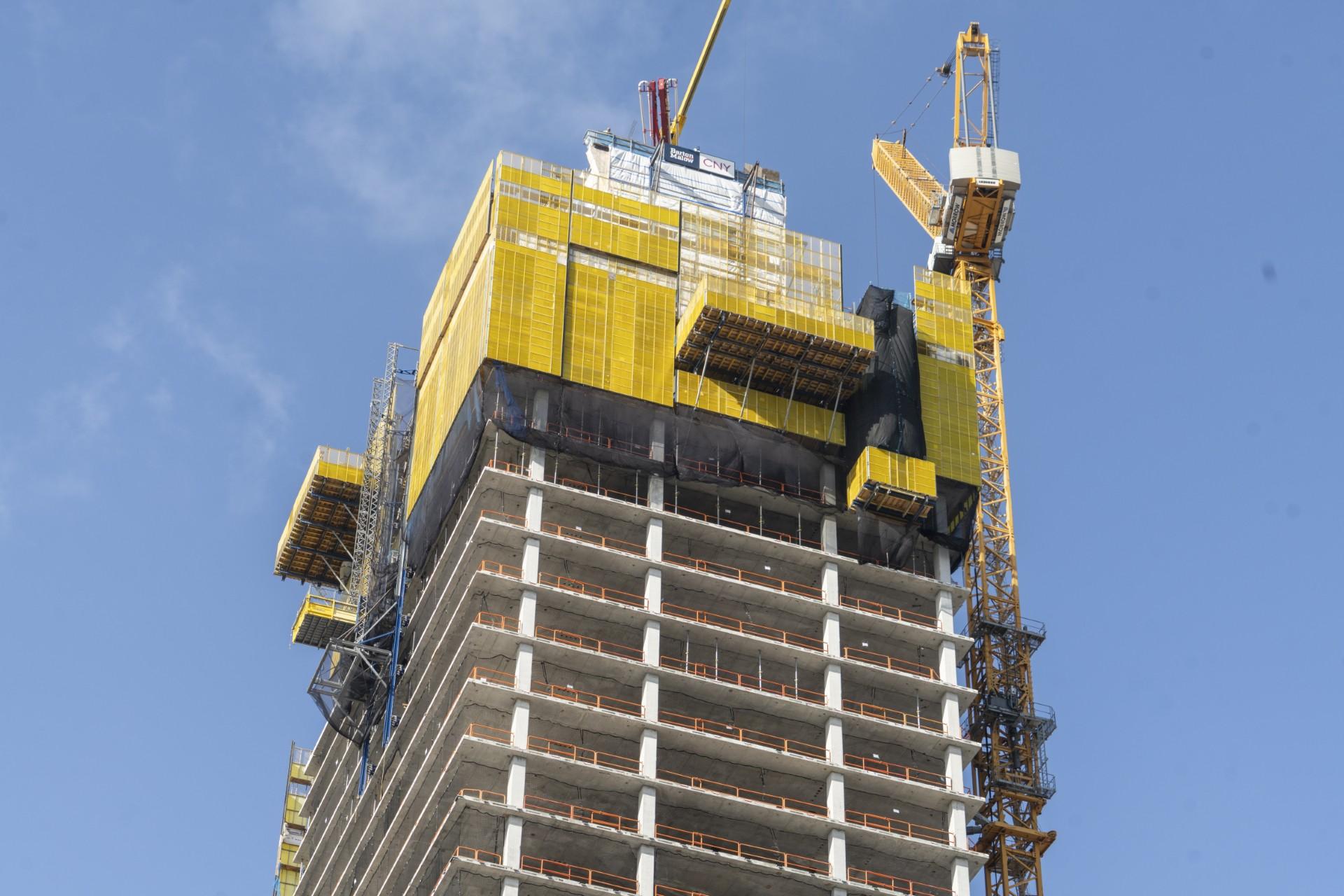

The full-area enclosure around the perimeter of the building enables all work to be carried out in complete safety, protected from all weather conditions. A loading platform can be integrated into the pro­tection screen for straightforward, safe repositioning of slab formwork, tools and other materials.

DownloadsVideos

Huge flexibility
in on-site use

Benefit from the system's multi-use capability, with features like

  • individually adaptable working platforms
  • optimized cycle times, as loads can be transferred into either the current or previous casting section
  • the option of using it as a self-climbed system if there are crane-time constraints, with hydraulic lifting appliances easily moved by hand
  • the ability to reposition the pro­tection screen even while the slab formwork is still in place

High standard of safety
for your site crew

Safety is built-in to all phases of the work, as

  • the system is anchored to the structure at all times
  • the guided repositioning operation is independent of the weather
  • the crew are protected by an enclosure that can be adapted to meet site-specific requirements

Simple modular design concept
based on a practical "construction-kit" system

Save time and money because of

  • the high degree of pre-assembly available
  • the way the system simplifies planning, utilization and handling
DokaAR App

Experience this system in AR

The DokaAR App America allows users to view Doka Formwork in Augmented Reality.

To the DokaAR App
Cover Leaflet

Leaflet Protection screen Xclimb 60

PDF 350 KB

Download

References

System

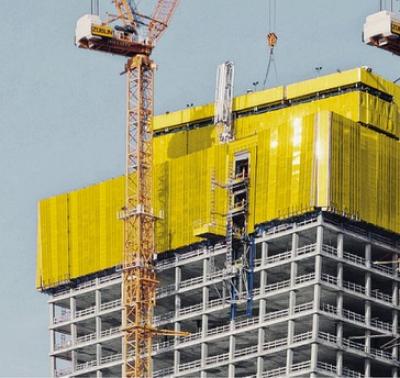

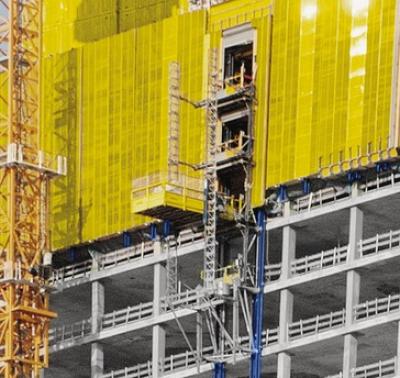

Protection screen Xclimb 60 with Framed enclosure Xbright

The Framed enclosure Xbright is a fully rentable protection-screen system that can be fitted with either a translucent but wind-impermeable and non-see-through polycarbonate inlay, or with a mesh inlay. The large framed panels, and the simple method for connecting these together, keep site-erection times short.

Xbright
Xbright

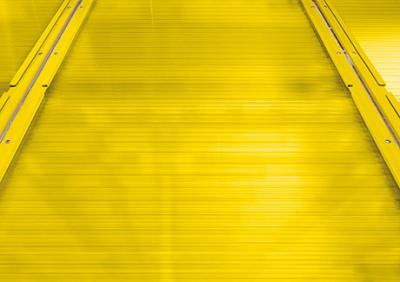

Design variant with polycarbonate inlay

  • translucent
  • wind-impermeable
  • non-see-through

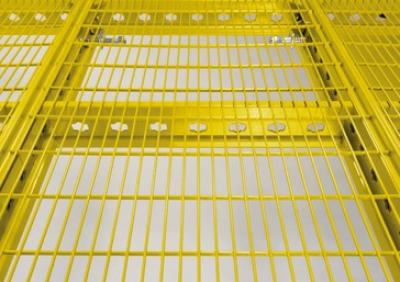

Design variant with mesh inlay

  • translucent
  • wind-impermeable
Xbright
Xbright

All-round safety

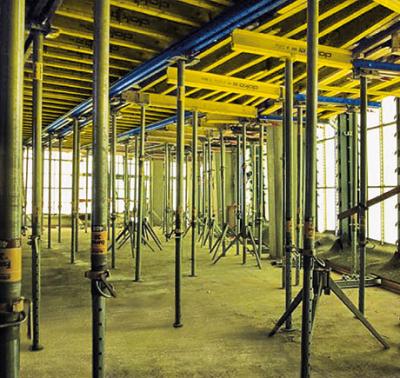

The translucent polycarbonate inlay provide natural lighting of the enclosed work-deck levels across the whole area of the enclosure. What is more, it is wind-impermeable and non-see-through, which gives the site crew a much greater feeling of safety and so boosts their productivity.

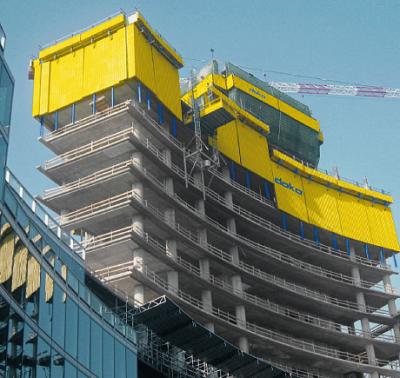

Protection screen Xclimb 60 with trapezoidal metal sheet enclosure

The combination of Xclimb 60 and a trapezoidal metal sheet enclosure is also a tried-and-tested safety solution on difficult structure geometries. The protection screen can be dimensioned very flexibly, permitting last-centimetre adjustment to any shape of layout. All gaps are closed off to prevent any tools or other small items being dropped, which increases the standard of safety still further.

Xbright
Xbright

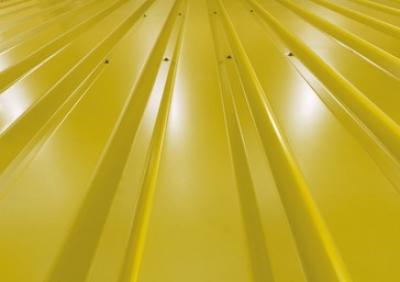

Design variant with trapezoidal metal sheet

  • wind-impermeable
  • non-see-through

Design variant with perforated trapezoidal sheet

  • translucent
  • wind-permeable
Xbright
Xbright

Table Lifting System TLS – the ideal add-on for all Doka protection screens

The Table Lifting System TLS is the safe way to reposition floor-slab formwork, tools and other equipment with no need for a crane. The TLS can be used not only as a variant that is suspended from the structure, but also as a self-climbed system, and can easily be integrated into the Doka protection screens.
